DRS Wheel Blocks System

DRS wheel blocks is a multi-purpose, compact wheel box, simple and flexible to use, with excellent performance; wide load range, wheel load from 2.75 tons to 40 tons, scientific series division (DRS112~DRS500) helps ensure that each application has a matching DRS wheel blocks. Mainly used in stackers, shield machines, equipment supporting, metallurgical trolleys and other industries, to provide our technical solutions and high-quality products for various handling sites

Special advantages of DRS wheel blocks

  • Simple installation and maintenance, and convenient connection with the structure.
  • Good starting and braking performance without damaging the track.
  • Laser calibration system to eliminate various installation errors in the installation process of wheel box.
  • The tread of traveling wheel can be specially hardened to meet the requirements of high speed.
  • The wheel box is durable and can effectively protect the layout of traveling wheels and bearings.
  • Technological innovation, such as Demag's patented anti torsion support, bearing layout, box design, etc.
  • Good ground clearance.

Parameter Table

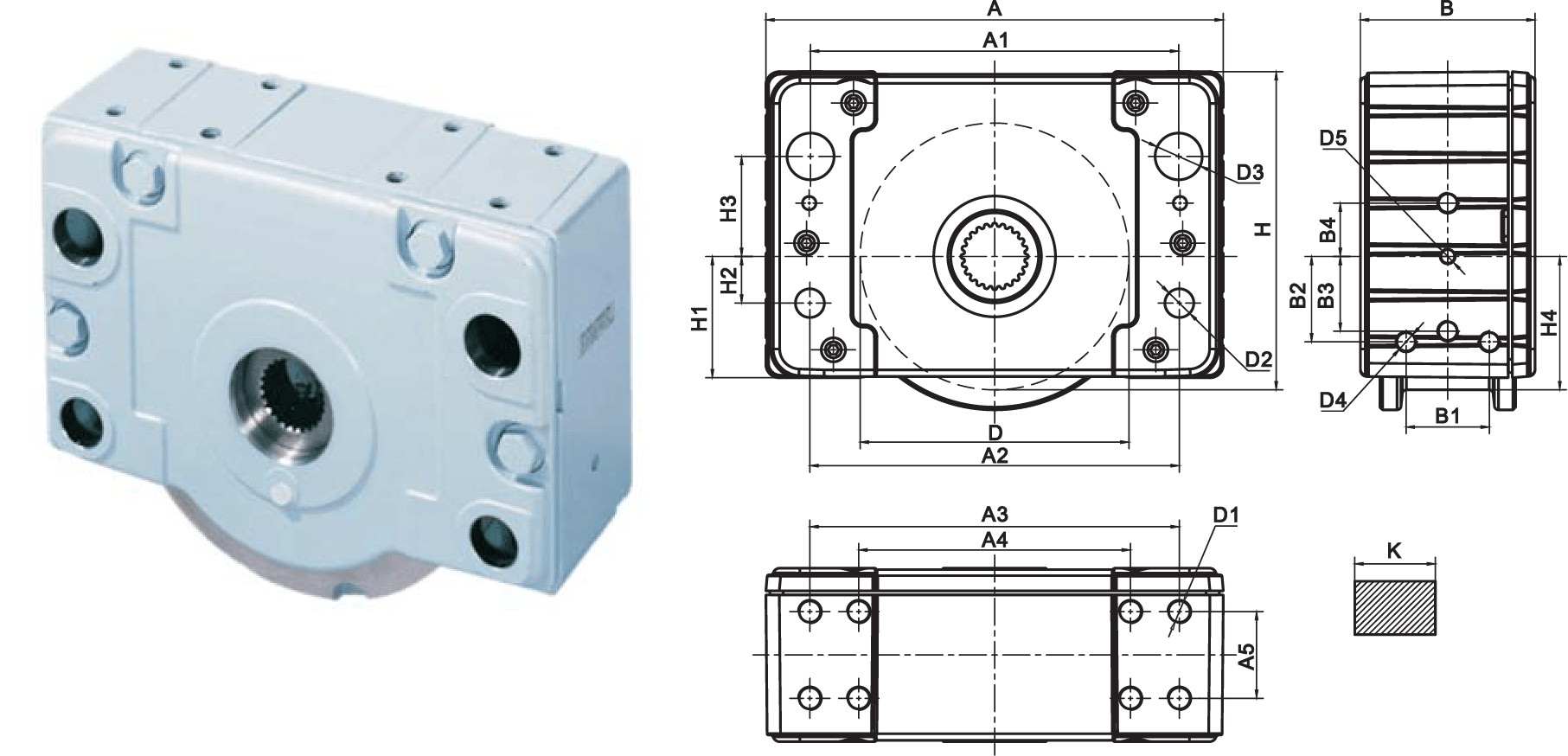

DRS wheel table

Technical Parameters

TypeD Amm Bmm Hmm Kmm H1mm H2mm H3mm H4mm B1mm B2mm B3mm B4mm
DRS112 190 96 131 55 47 30 40 80 40 30 24
DRS125 220 98 147.5 55 53.5 20 40 100 50 37 37.5
DRS160 275 110 187 60 70 25 55 100 54 47.5 20
DRS200 340 130 238 60 90 35 75 100 62 64 56 40
DRS250 385 150 281 75 89 50 80 100
DRS315 470 180 349.5 90 114 70 80 100 30
DRS400 580 210 440 144 95 130 100 30
DRS500 700 240 566 183 110 160 100 30
TypeD A1mm A2mm A3mm A4mm A5mm D1 D2mm D3mm D4 D5 WeightkG Max. LoadkN
DRS112 145 145 145 45 4*M12 10.5 18.5 4*M12 2*M12 10 27.5
DRS125 175 175 170 55 4*M12 13 21 4*M12 2*M12 15 50
DRS160 220 220 220 55 4*M16 17 30 4*M16 2*M12 26 70
DRS200 275 275 275 65 4*M16 20 35 8*M16 2*M12 41 100
DRS250 310 310 290 140 80 8*M16 34F8 40 2*M12 70 160
DRS315 370 370 360 180 100 8*M16 40F8 50 2*M12 2*M20 130 220
DRS400 450 450 440 210 120 8*M20 31H13 65 2*M12 2*M20 220 300
DRS500 580 580 620 480 125 8*M20 31H13 70 2*M12 2*M20 380 400
