Free Standing Jib Cranes

Free Standing JIB Crane often used in a smaller work cell area for repetitive and unique lifting tasks. Jib cranes are extremely versatile and can also be paired with overhead bridge cranes to maximize production.

The working range is a circular area, which is very suitable for short-distance and densely-discharged workplaces.

With a large lifting capacity, It can be used in all kinds of industries. It has light structure and occupies little space, easy to install.

  • Capacity: up to 16 tons
  • Arm length: up to 16 m
  • Lifting height:up to 12 (floor to underside of boom)
  • Work duty: M3-M5
  • Rotation angle: 120-360°
  • Raged voltage: 220V~690V, 50-60Hz, 3ph AC
  • Crane control mode: Floor control / Remote control
  • Reference Price Range: $1600-6000/set

Overview

Free Standing Jib Crane is composed of a column, a swing arm device and an electric hoist. It plays a great role in a workshop with limited space. It occupies a small area and can cover the entire working area. According to needs, it can be installed on the ground or wall, and the lifting mechanism can be electric or manual. Widely used in various places, such as loading and unloading docks, ports, shipyards, etc., can be used with other boom cranes, and can also be used as supporting equipment on the factory assembly line. The installation and disassembly of fixed column JIB cranes are very simple, without disassembly.

Advantages

  • Full use of space
  • Easy to install
  • Lightweight structure
  • Sturdy and durable
  • Safety and reliability
  • Low noise
  • Options and Components

Introduction

Free standing jib cranes are designed to stand on the land not by any other support but by themselves. It consists of a pivoting vertical column and a horizontal load supporting boom.We rely on not low jib cranes price but the high quality of free standing jib cranes to win to achieve the growing of our company.

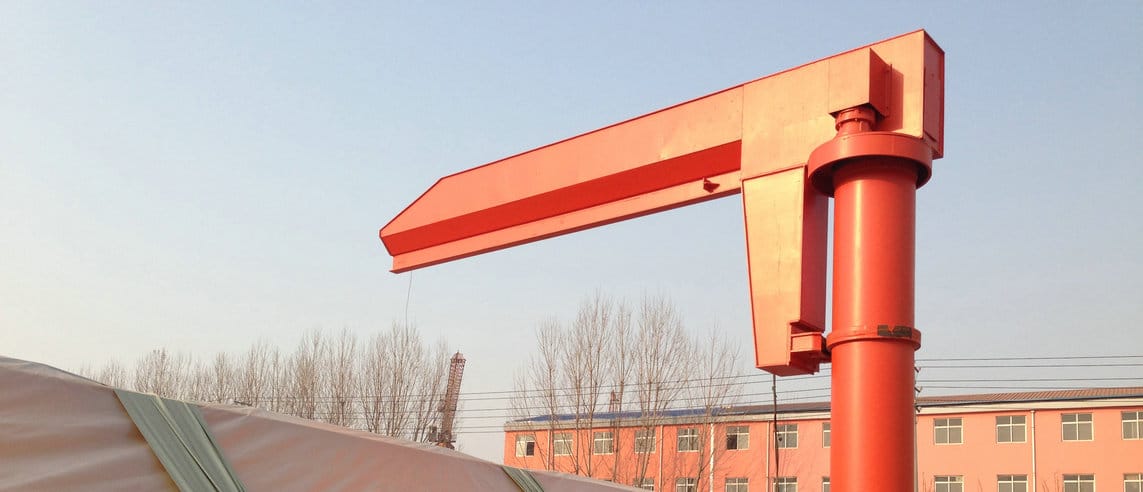

free standing jib crane

Compared with wall mounted and wall travelling jib crane, free standing jib cranes can reach to the higher capacities, longer spans and greater rotation range. Because of the favorable structure, this kind jib crane can be custom-modified to meet the requirement of your special applications.The only restriction of installation is that pressure of the soil free standing jib crane founded on must be up to 2500 lbs per square foot.

Basic Parameter

It is a kind of middle and small lifting and equipment developed recently and very suitable for short distance moving and workplace of crowed lift and transportations.

  • crane Rotation: 360 degreez
  • arm length: up to 16 m
  • rotating speed: 0.5 r/min
  • safe working load: up to 16 tons
  • hoisting heights: up to 12 (floor to underside of boom)
  • working Tempr: -20~+40℃
  • travelling speed: 20 or 30 m/min
  • control model: pendant handle, remote and cabin
  • applications: widely used in all kinds of industry
  • power: AC 380V, 50HZ, 3P

Note: Users can also select double speed, single speed chain and wire rope hoist

Main Features

  • Maximum versatility It is one of the most versatile cranes. Free standing jib cranes almost can be installed anywhere, either indoor or outdoor, such as loading docks, harbors, shipyard and so on. It also can work together with other jib cranes or work as a complement in factory assembly lines. The installation and relocation of free standing jib cranes are very simple without disassembling.
  • Ease of operation The cranes from our factory allow operator to control the movement precisely, efficiently and swiftly. With the advanced technology, we can make jib crane movement very simple and accurate. So the unintentional movements will be minimized. In return, the damage to your factory, equipments even to your personnel will sharply reduced. The working life of the crane can get added reassurance and will be prolonged.
  • Safety We always keep safety in our mind!!! We adopt an emergency stop system to strength safety. When the operation staff encounter some emergency situation, the emergency brake system will start to protect the related treasure. Every production from our factory has been well tested before we transmit to your workplace. And if you are unable to complete the installation independently, our experienced worker will not leave your workplace until the crane has been inspected for 100 percent guarantee.

Components

Column

column

According to the JB/8906-1999 standard, the column is to fix the rotating support part of the crane on the column, and is composed of double-row tapered self-aligning bearings that bear radial and axial forces.

Arm beam

arm beam

The arm beam is welded by I-beam or box beam and the web arm. Its function is to support electric or manual rotation, realize the horizontal movement of the trolley and the up and down movement of the electric hoist.

Reducer

reducer

According to the GB/T292-1994 standardThe reducer is fixed under the belly arm, and the beam is supported by the belly arm, so that the reducer drives the roller to rotate around the column to realize the rotation of the JIB crane.

Electric Hoist

hoist

The lifting mechanism can be equipped with electric wire rope hoist and chain hoist. The electric hoist moves up and down and horizontally to lift heavy objects along the beam.

Electrical Cabinet

electrics

Our standard power supply is three phase, 380V (±10%, the lower limit of peak current is -15%), 50Hz. According to customer requirements, the power supply can be designed as a three-phase electrical control system under 690V and frequency 50-60HZ.

A Standard JIB Crane Will Be Produced in 20 Days.

Tips:
Lead time of cranes with different voltage may be 10-15 days longer as electrical components need to be customized by our supplier.
