7Ton NLH European Type Double Girder Overhead Crane Exporter to Argentina

September 02, 2022

Lifting capacity: 7Ton
Span: 12m
Lifting height: 4.6m
Hoist trolley lifting motor: DGCrane brand
Hoist trolley traversing gear motors: Boneng brand
Crane long traveling gear motors: Boneng brand
Electrical components: Schneider brand
VFD: Yaskawa brand
Power supply: 380V 50Hz 3Ph
Control method: Pendant control and wireless remote control
Working class: M5

On February 04th, 2022, we received the inquiry for the 7ton double girder overhead crane inquiry from customer in Argentina. This solution is designed based on European type overhead crane with lifting chain hoist, because the customer workshop only have 5.5m clearance height, and equipment height is 4.5m, which means the crane bottom height must over 4.5m, so the fixed low headroom electric chain hoist is the best solution. Due to the layout of the ground equipment, they can't use gantry crane, we designed complet set for support columns, runway beam, connection beam etc to support the overhead crane. And we also prepared one set 3D drawing to make sure our crane can fit to customer workshop. Customer is very satisifed with our solution.

We received customers contract at Apr 26th. Now the production of the 7ton NLH European type double girder overhead crane is finished, following are some pictures of the main girders and end carriages.

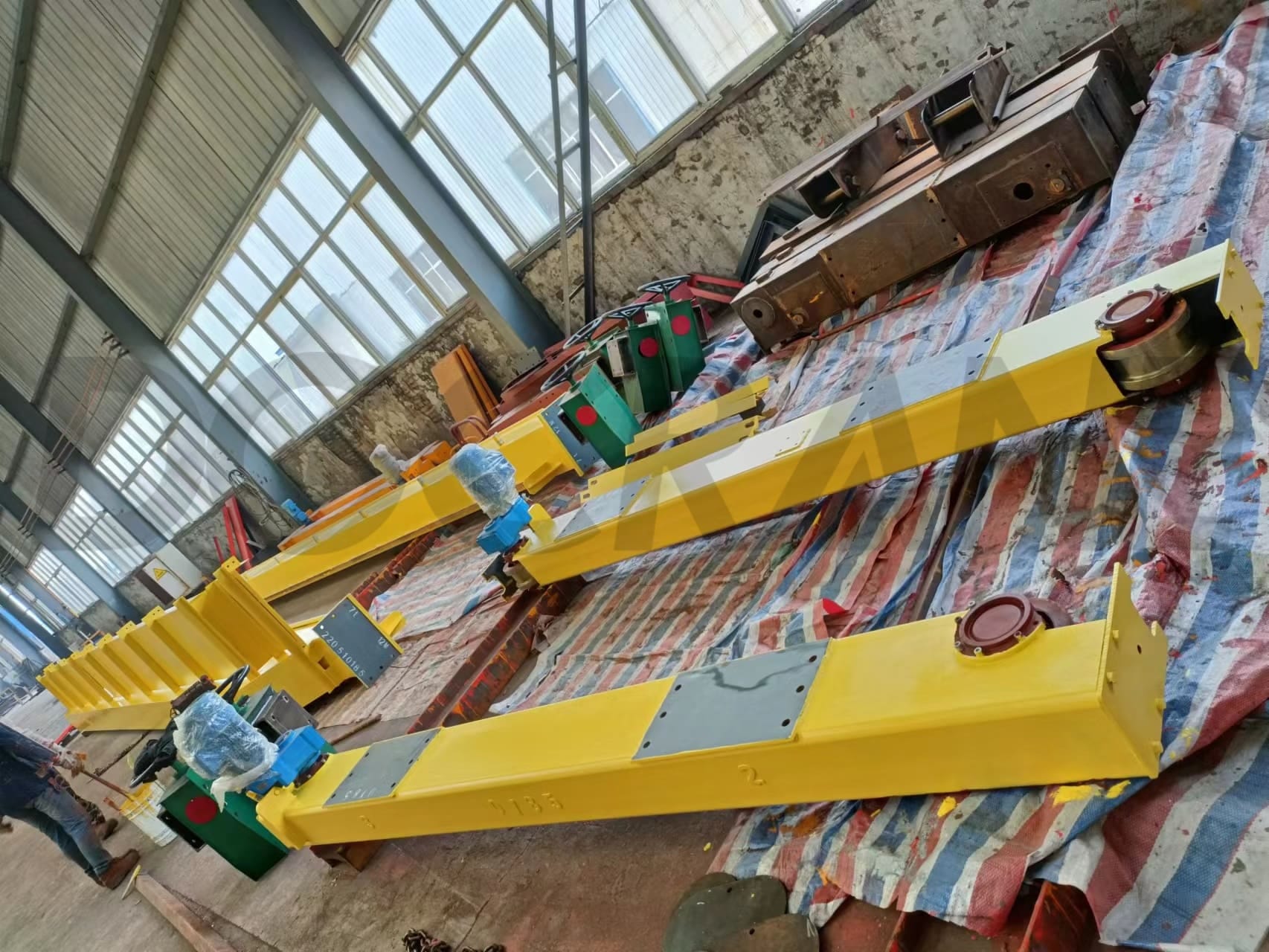

Double main girder and end girder finished painting

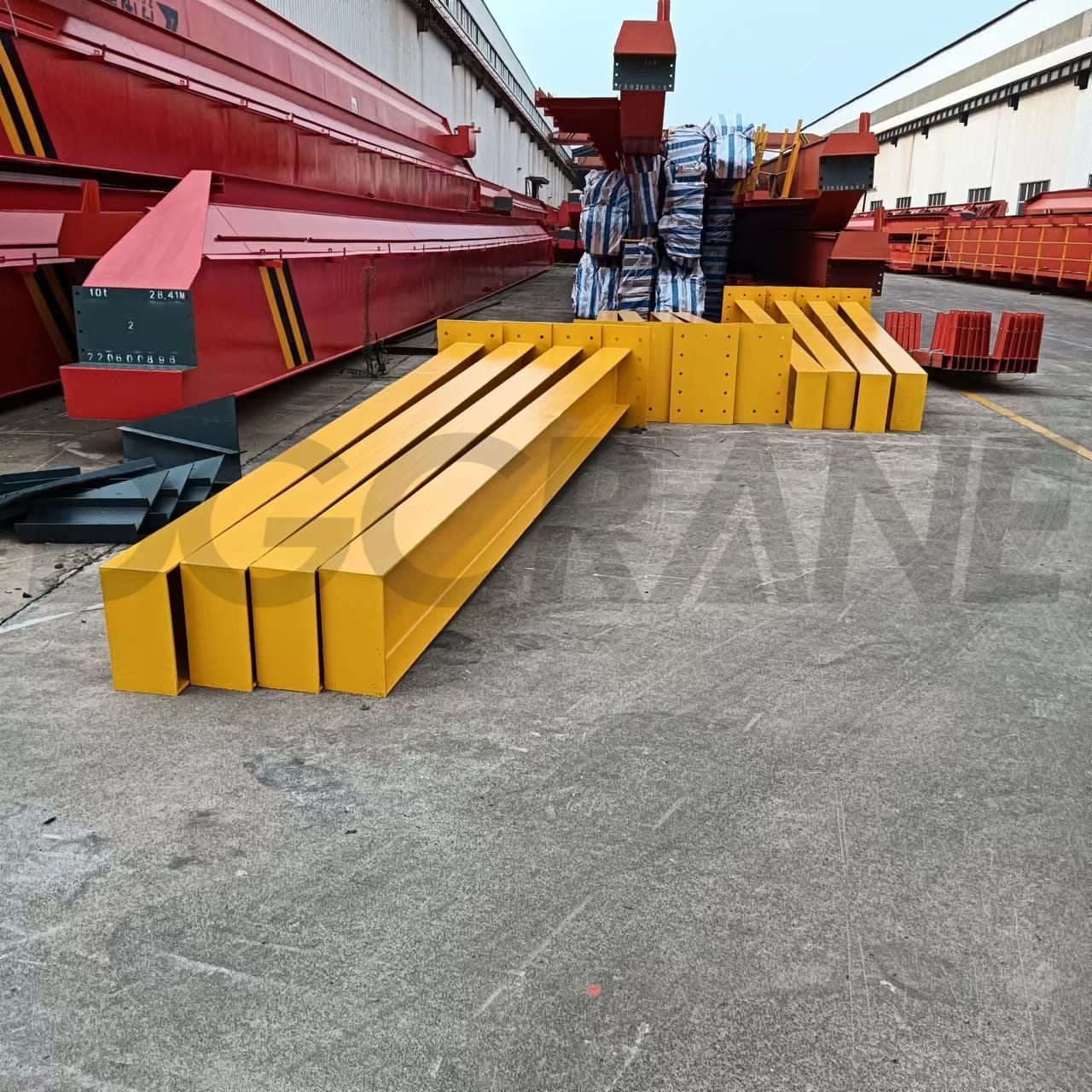

Steel structure beam

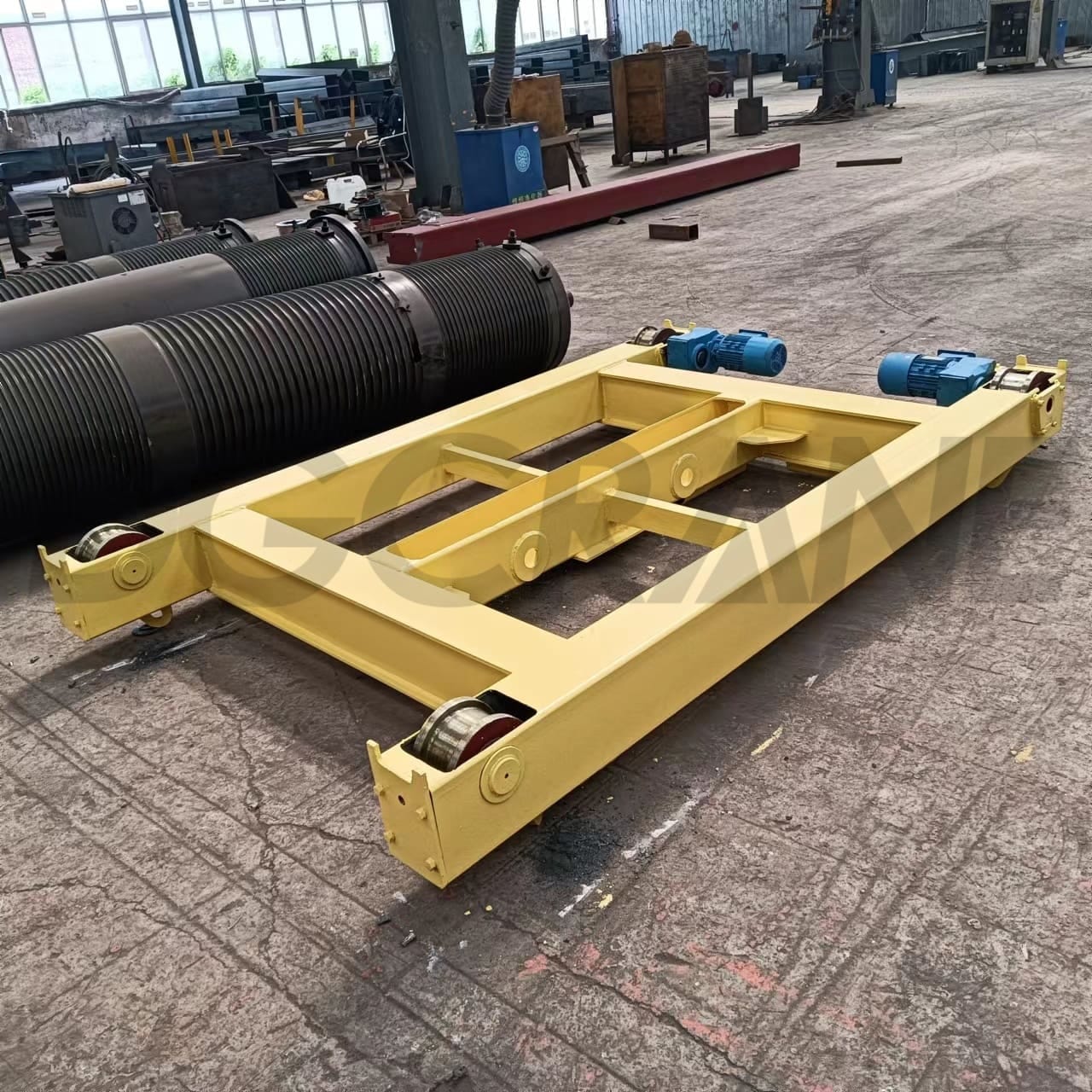

Hoist trolley

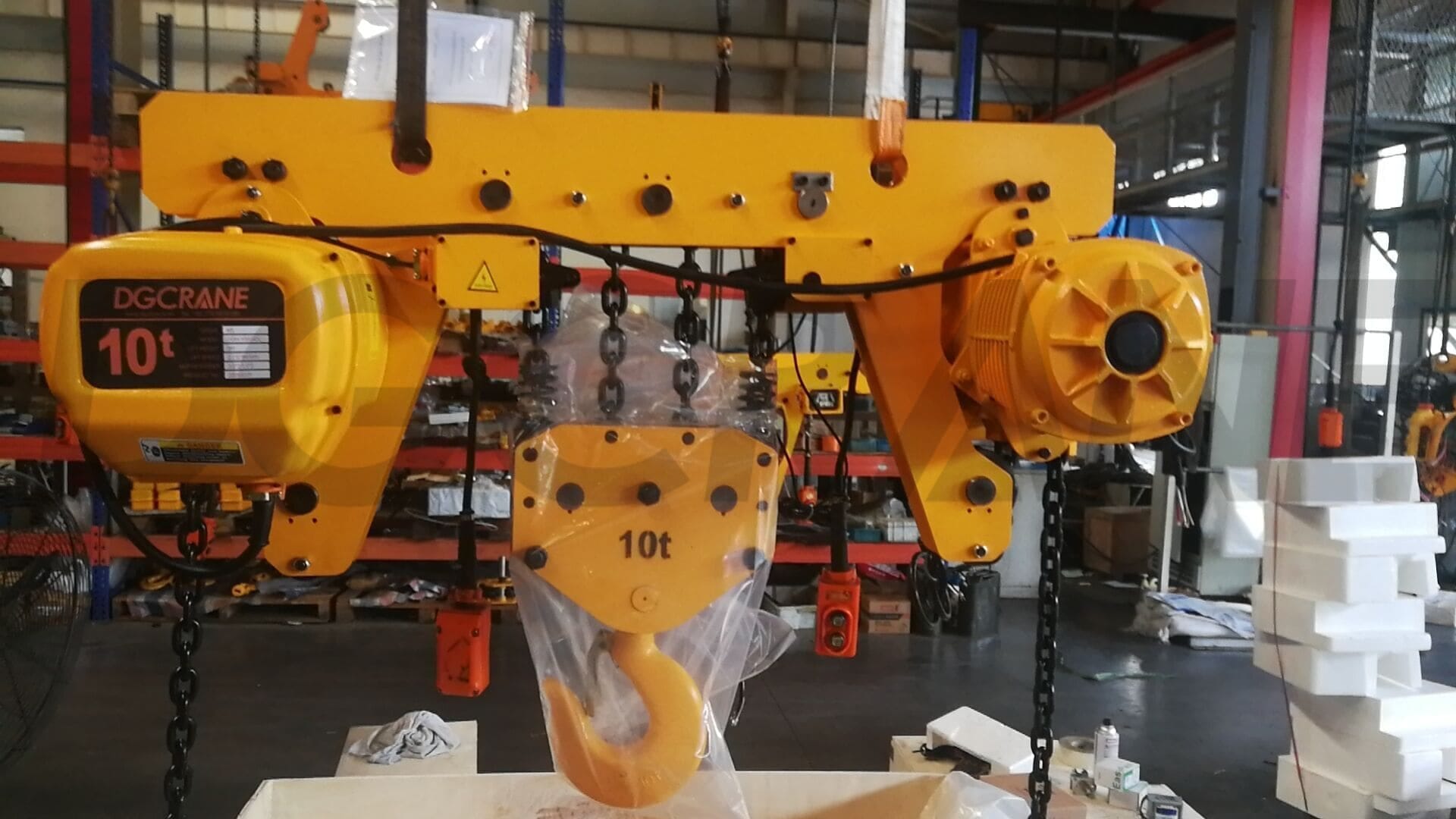

Electric chain hoist
