25Ton QDX European Type Double Girder Overhead Crane Exporter to Nigeria

September 22, 2022

Lifting capacity: 25Ton
Span: 20m
Lifting height: 12m
Lifting motor: Hongtai
Lifting reducer: Boneng
Lifting brake: Jiaozuo
Cross traveling motor/reducer/brake: Boneng three in one
Crane traveling motor/reducer/brake: Boneng three in one
Electrical components: Schneider brand
VFD: Schneider brand
Power supply: 380V 50Hz 3Ph
Control method: Cabin control+remote control
Working class: M5

On Jul 07th, 2021, we received the inquiry for 25ton double girder overhead crane inquiry from customer in Nigeria. This crane is used to lift steel plate, steel tanks and steel structures, we have designed two solution to customer, NLH type and QDX type, both them can meet the crane use, and explained the difference between two design, customer finally choosed the QDX type, this design is similar to European type design, lifting mechanism is European winch type, all the mechanisam are controlled by VFD speed, all the brand components we choosed is from China famous brand, has reliable quality.

We received customers contract at Feb 22nd, 2022. Now the production of the 25ton double girder overhead crane is finished, following are some production pictures.

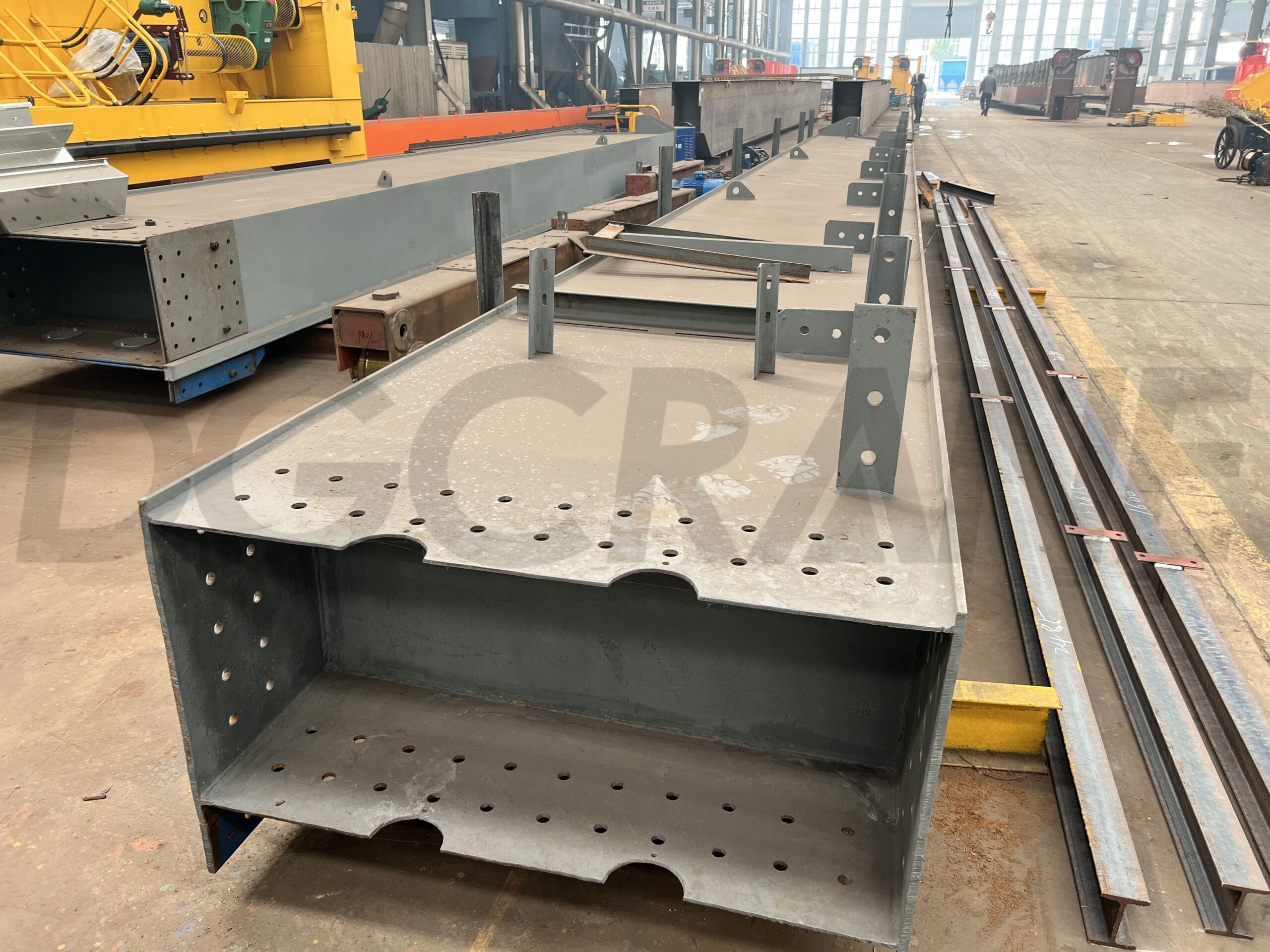

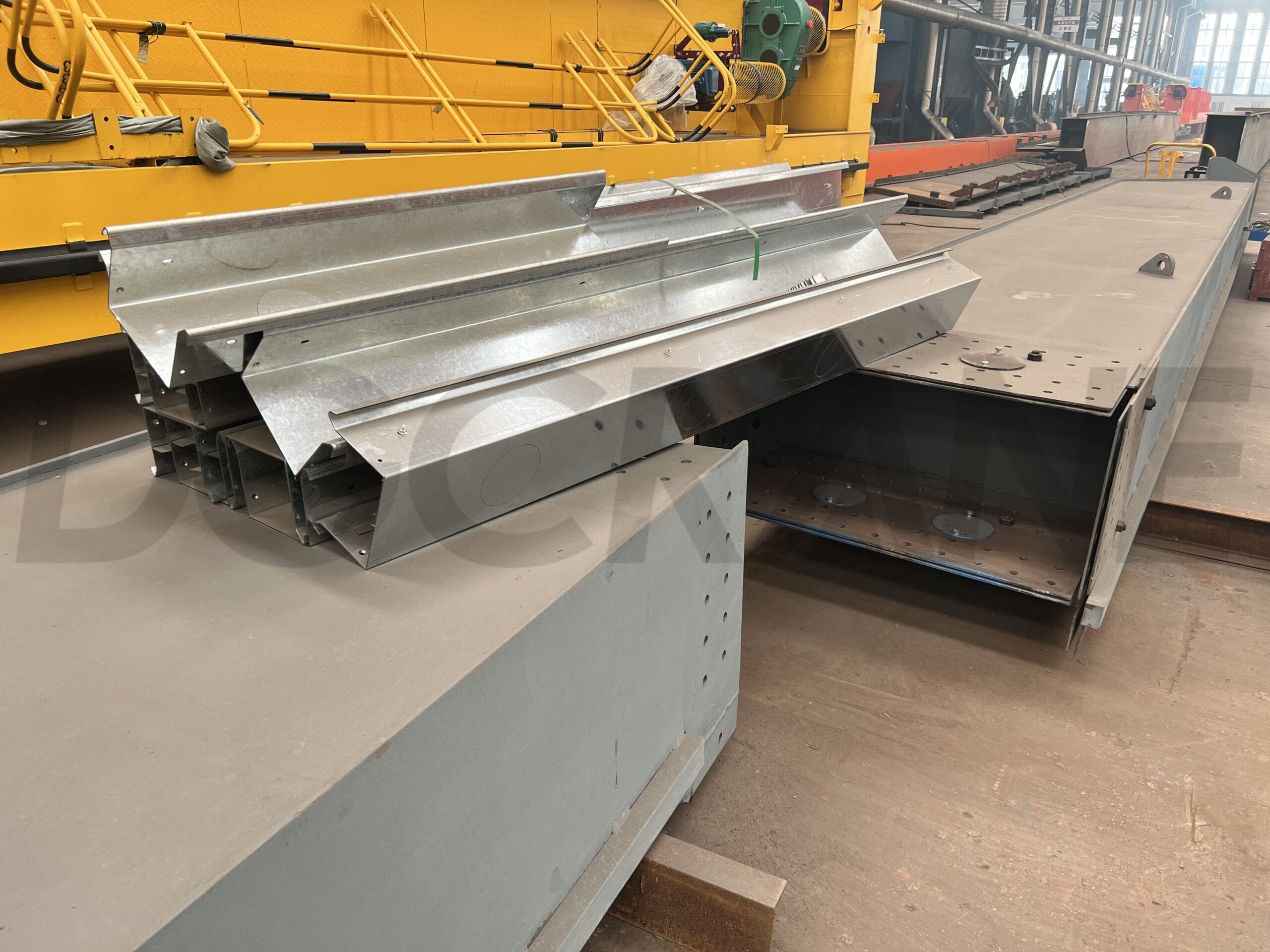

Main girder

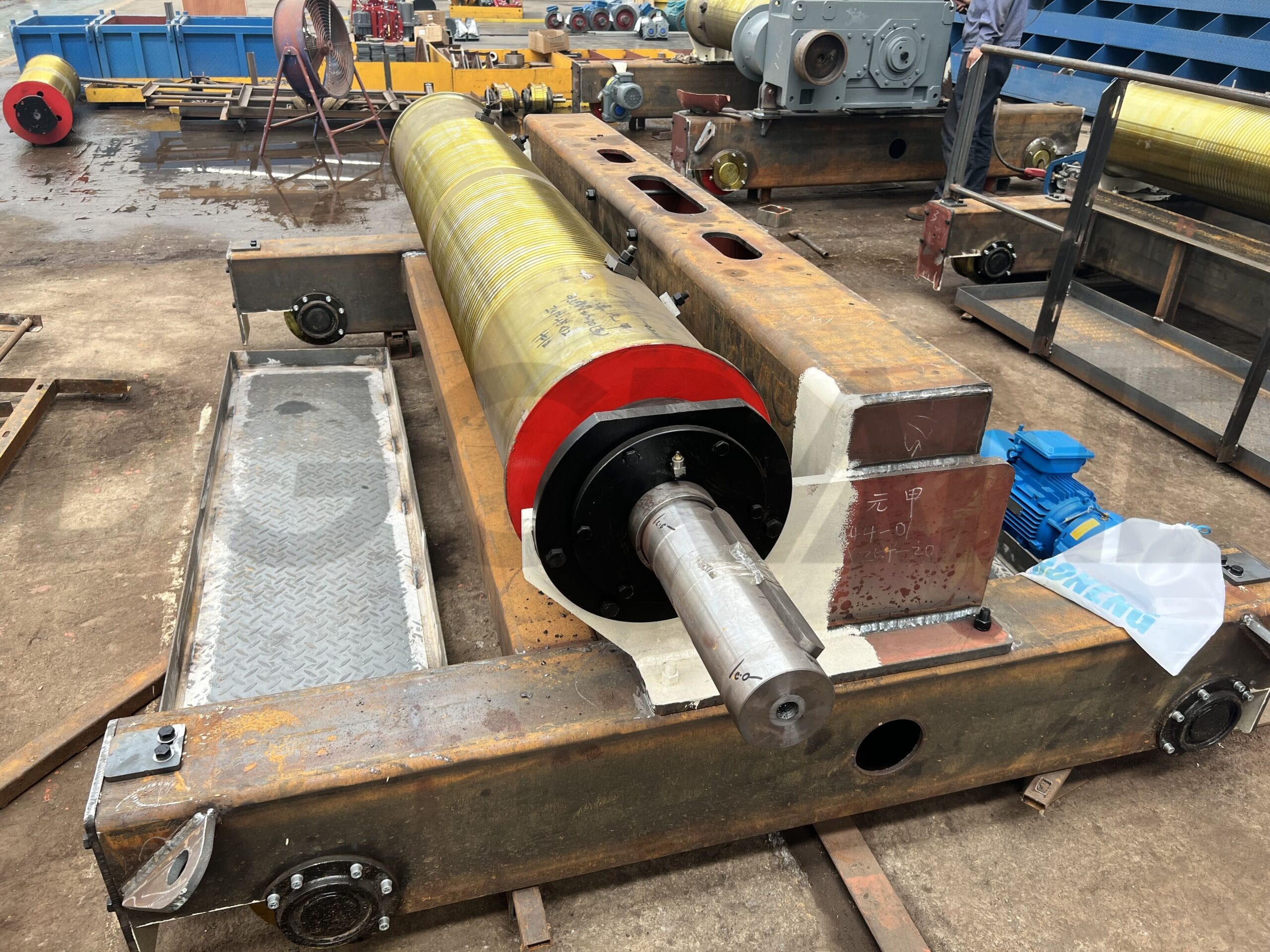

Electric winch trolley

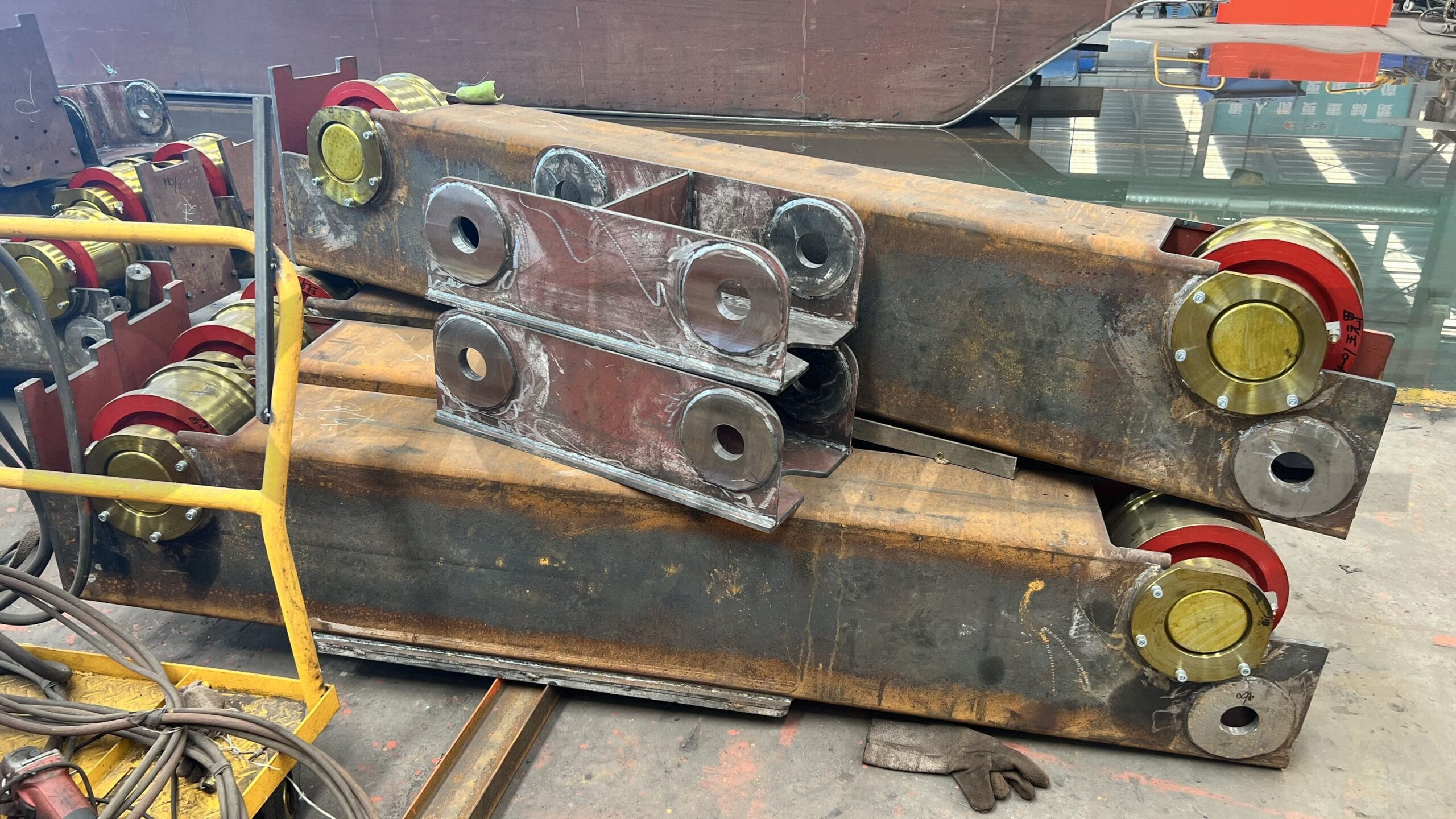

End girder

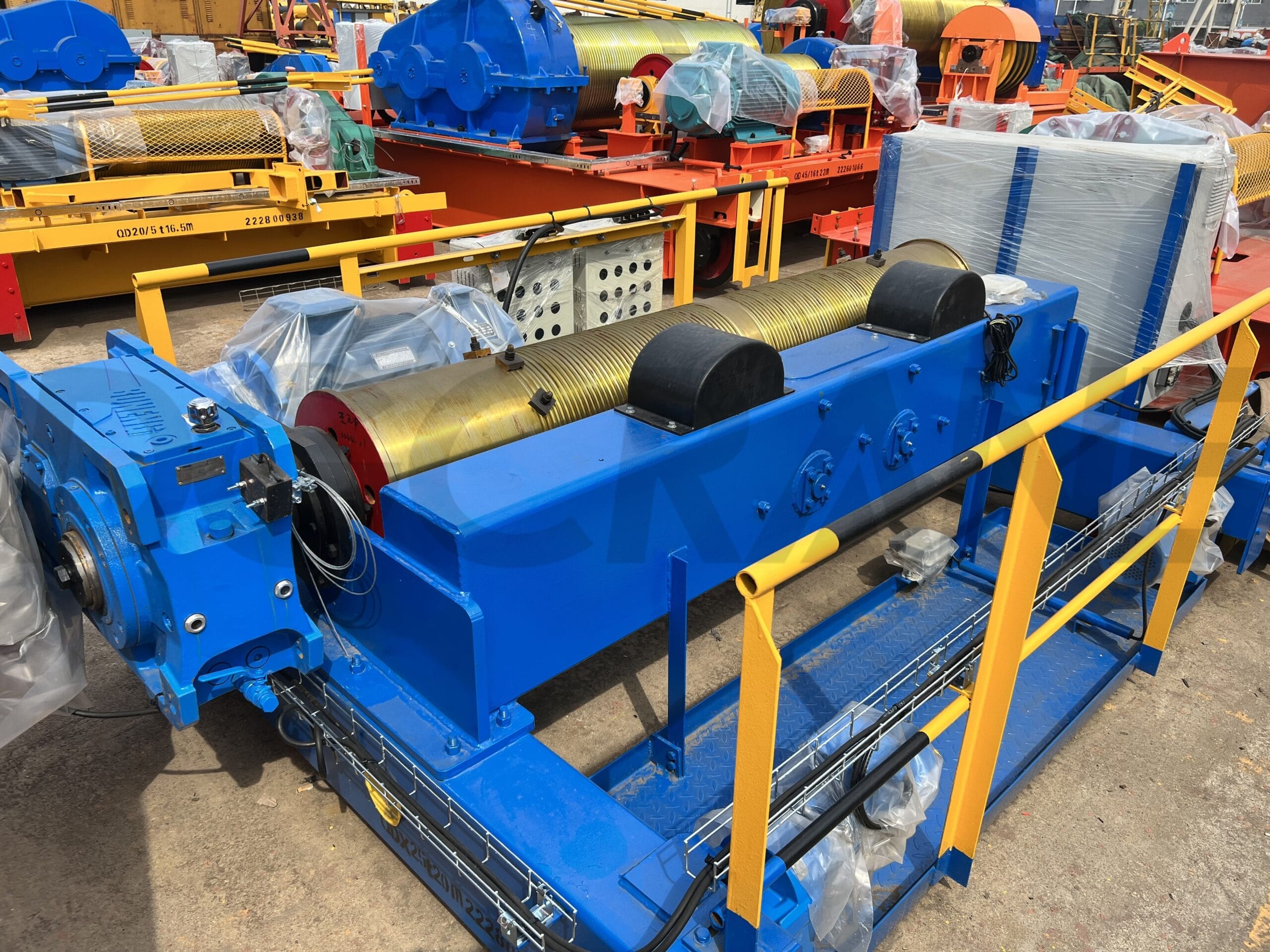

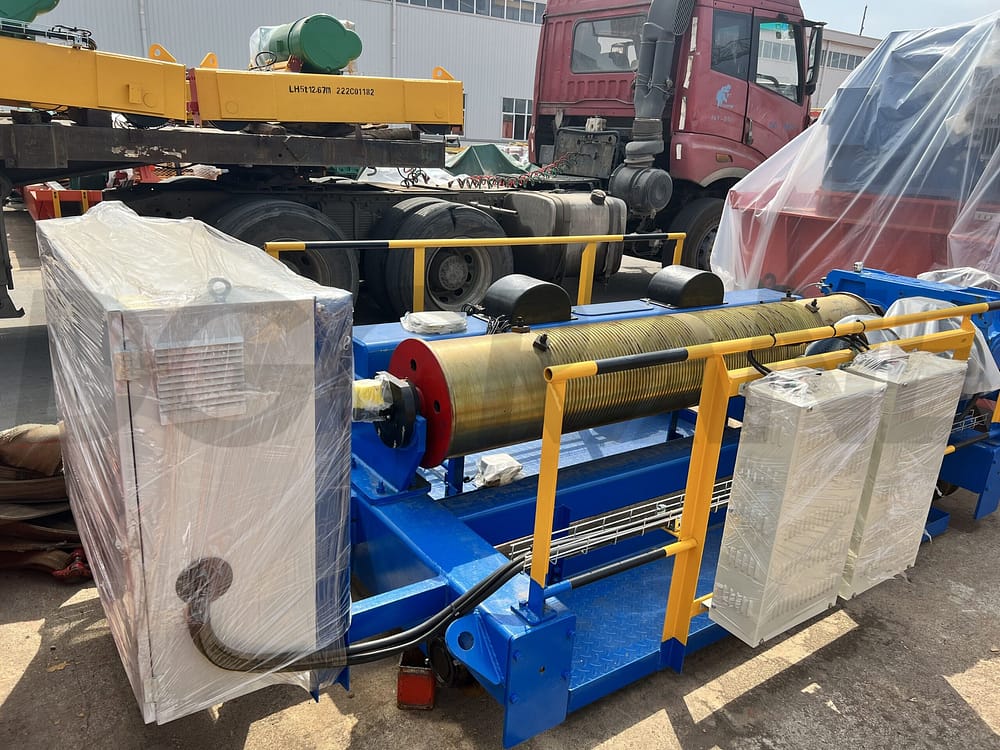

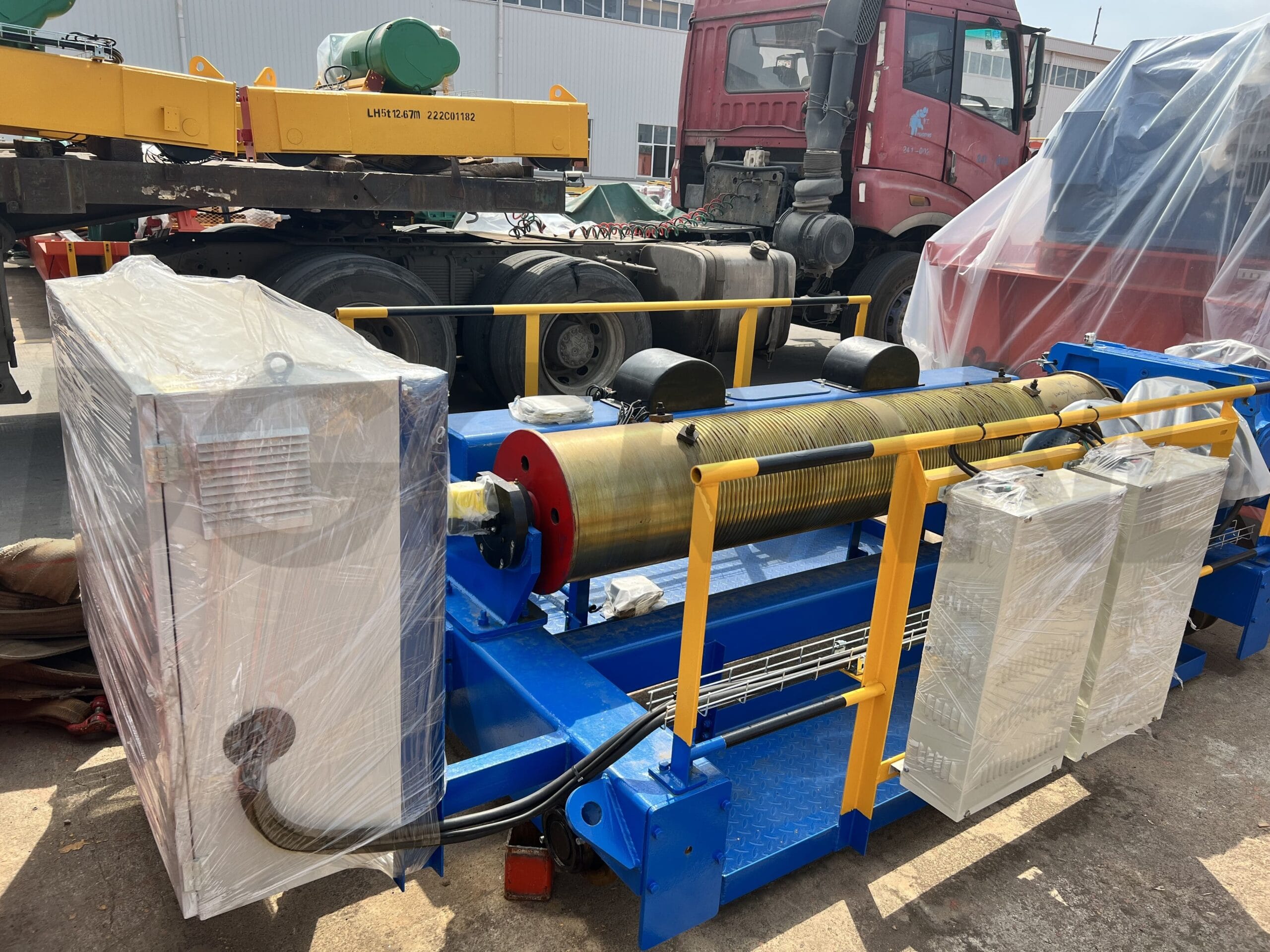

Finished paint trolley

Whenever customer needed, DGCRANE is always here. From crane design to manufacture, crane installation and commissioning, we can provide all the services required.

Should you have any demands for cranes, contact us!

Crane,Double Girder Overhead Crane,Nigeria,overhead crane
