10T Single Girder Overhead Crane for Saudi Arabia: Designed for 60°C High-Temperature Operation

A Saudi Arabian client purchased a 10t single girder overhead crane. The client specified the basic technical parameters and emphasized that the crane would operate in a high-temperature workshop of up to 60°C, requiring on-site installation and commissioning by professional engineers.

Based on these requirements, we carried out customized design and manufacturing in strict accordance with the provided specifications. High-temperature-resistant motors were adopted to ensure stable and reliable operation under 60°C conditions. Meanwhile, we dispatched an experienced engineering team to the client's site to handle installation, commissioning, and operational guidance.

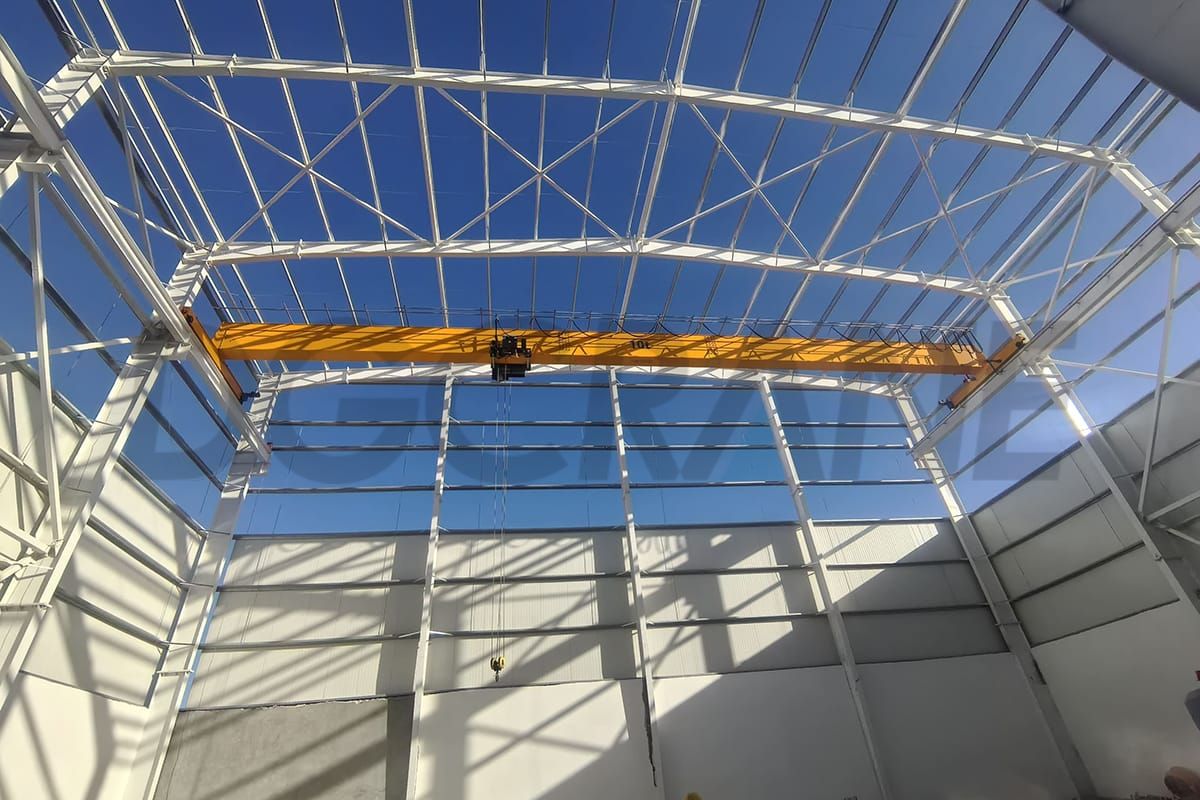

The single girder overhead crane has now been successfully installed and commissioned on site, passed load testing, and met all expected performance standards. It has been officially put into operation and is running smoothly.

Customer Requirements

• Parameter Requirements: Rated lifting capacity of 10 tons, span of 30 meters, lifting height of 14 meters, and runway length of 20 meters.
• High-Temperature Adaptation: The workshop temperature can reach up to 60°C; the single girder overhead crane must operate safely and reliably under high-temperature conditions.
• Installation Service: Professional on-site installation and commissioning are required, including crane assembly, debugging, and load testing, to ensure successful acceptance and smooth operation.

Overhead Crane Solution Based on Project Requirements

1. Overhead Crane Specifications & Configuration: Customized Based on Requirements and Site Conditions

A high-spec single girder overhead crane was customized according to the workshop dimensions, client requirements, and local power standards.

• Basic Parameters: Rated capacity 10 tons, span 30 meters, lifting height 14 meters, equipped with P30 rails, runway length 20 meters, matching the workshop layout.

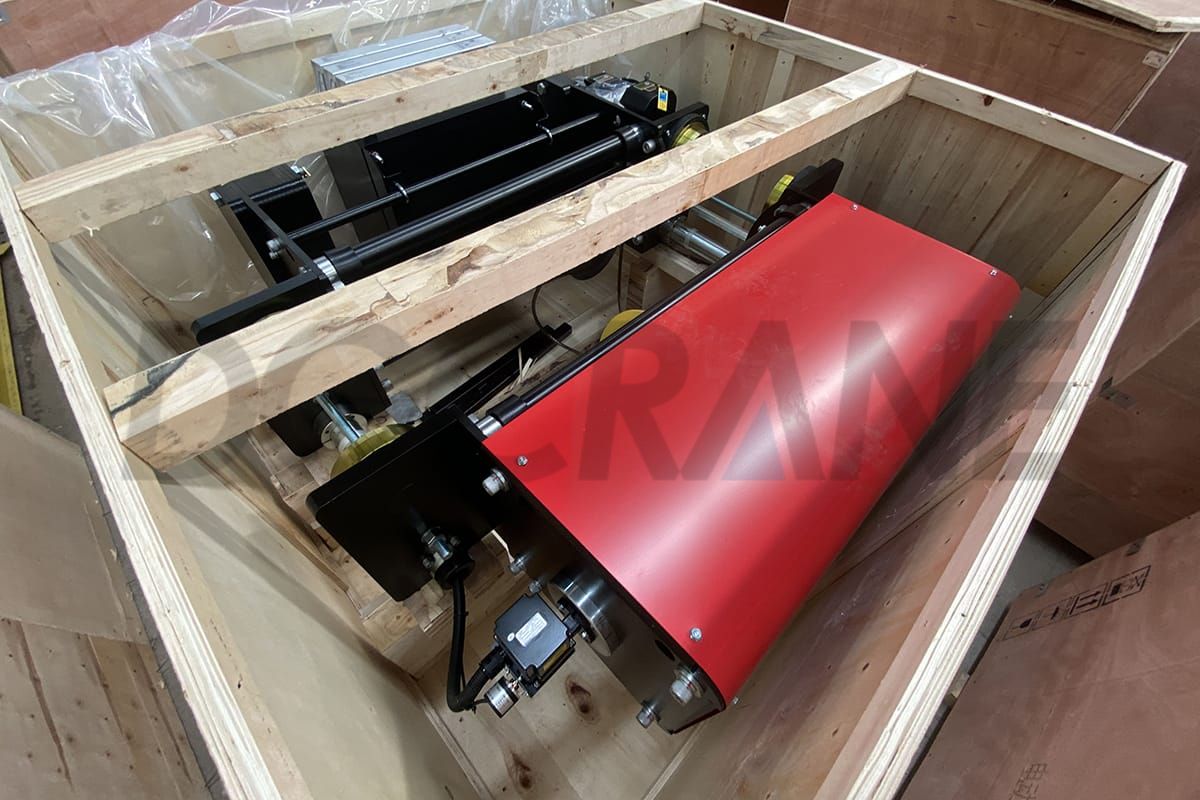

• Hoisting System: Equipped with an NR-type wire rope electric hoist, ensuring smooth lifting, high positioning accuracy, and low noise.
• Traveling Mechanism: Variable frequency drive (VFD) control for smooth operation and precise positioning.
• Control Mode: Pendant + wireless remote control.
• Power Supply: Customized to 380V / 60Hz / 3Ph according to local standards.

2. High-Temperature Resistant Electrical System: Ensuring Stable Operation at 60°C

• High-Temperature Motors: Hoisting and geared motors use Class H insulation (up to 180°C), effectively preventing insulation aging and performance degradation caused by high temperatures.
• High-Temperature Cables: Heat-resistant cables are used to withstand insulation damage, preventing softening or aging that could lead to short circuits, ensuring safe electrical operation.

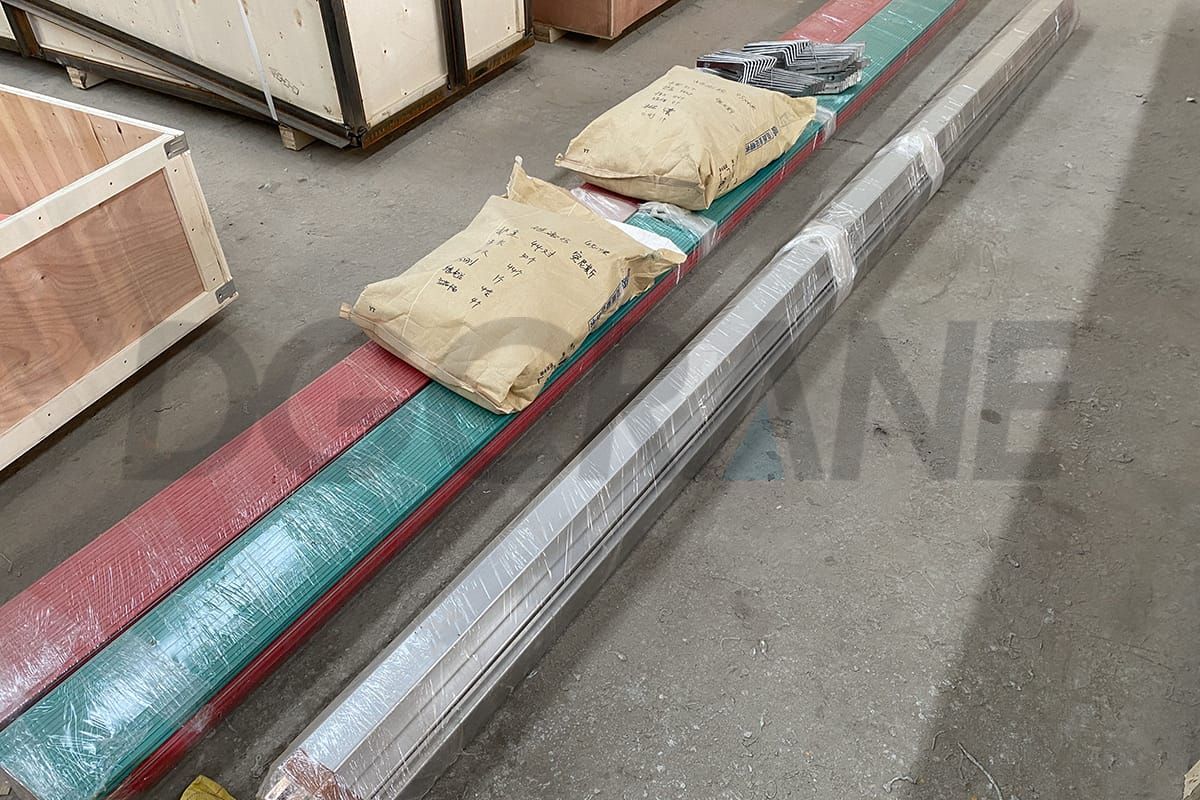

• High-Temperature Enclosed Conductor System: Made of heat-resistant alloys and special insulating sheaths, offering anti-aging and anti-softening performance under high temperatures, ensuring stable power collection and safe power supply for moving equipment.

3. On-Site Installation by Professional Engineers: Including Installation, Load Testing, and Training

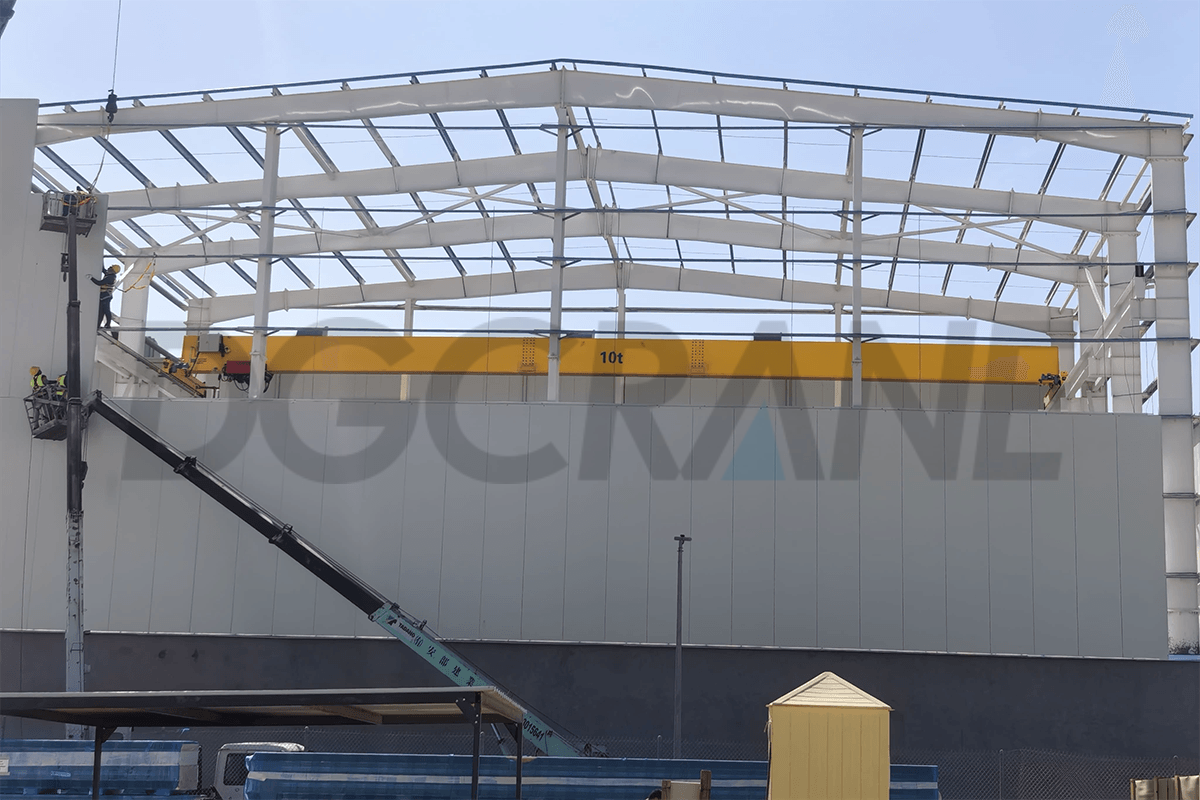

• Installation: Experienced engineers were dispatched to the Saudi client's site, responsible for mechanical assembly, electrical wiring, and system commissioning, ensuring full control over installation quality.

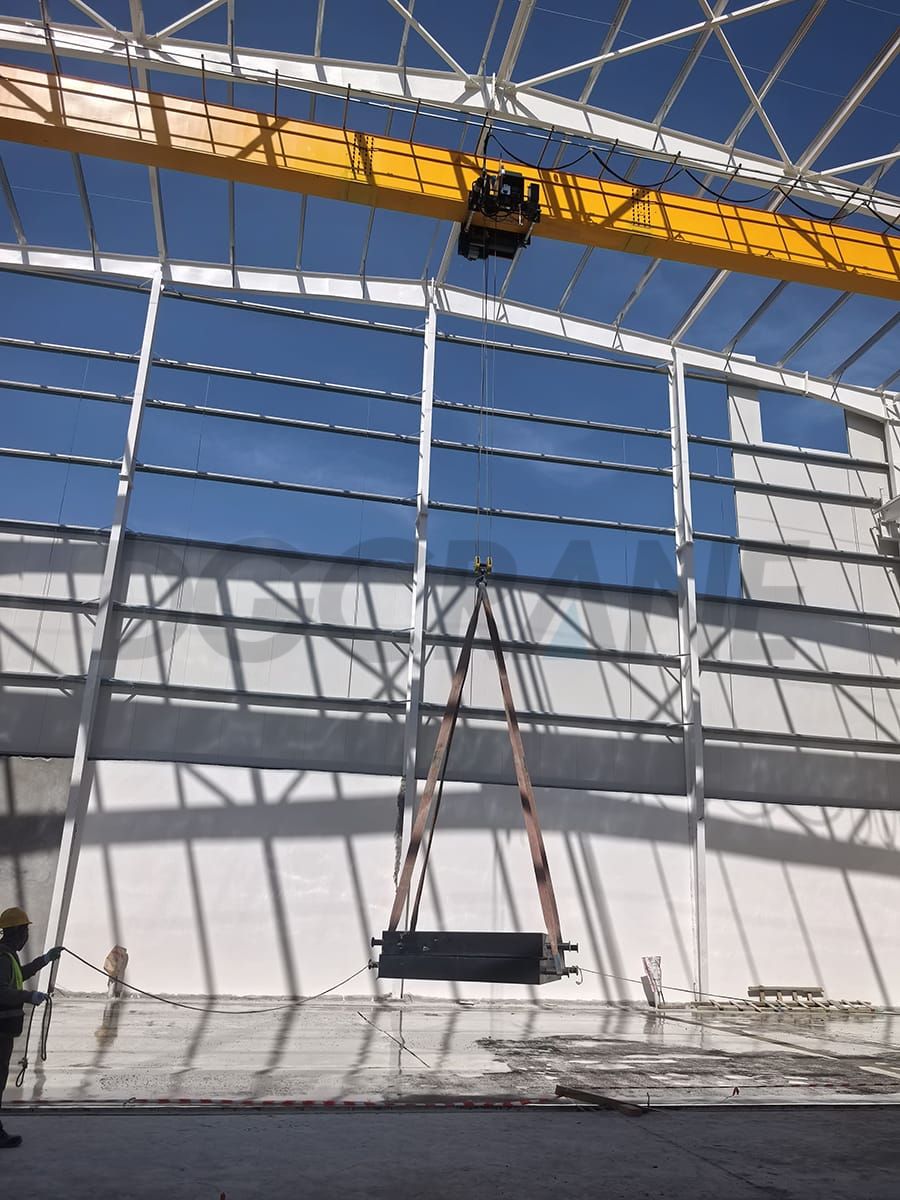

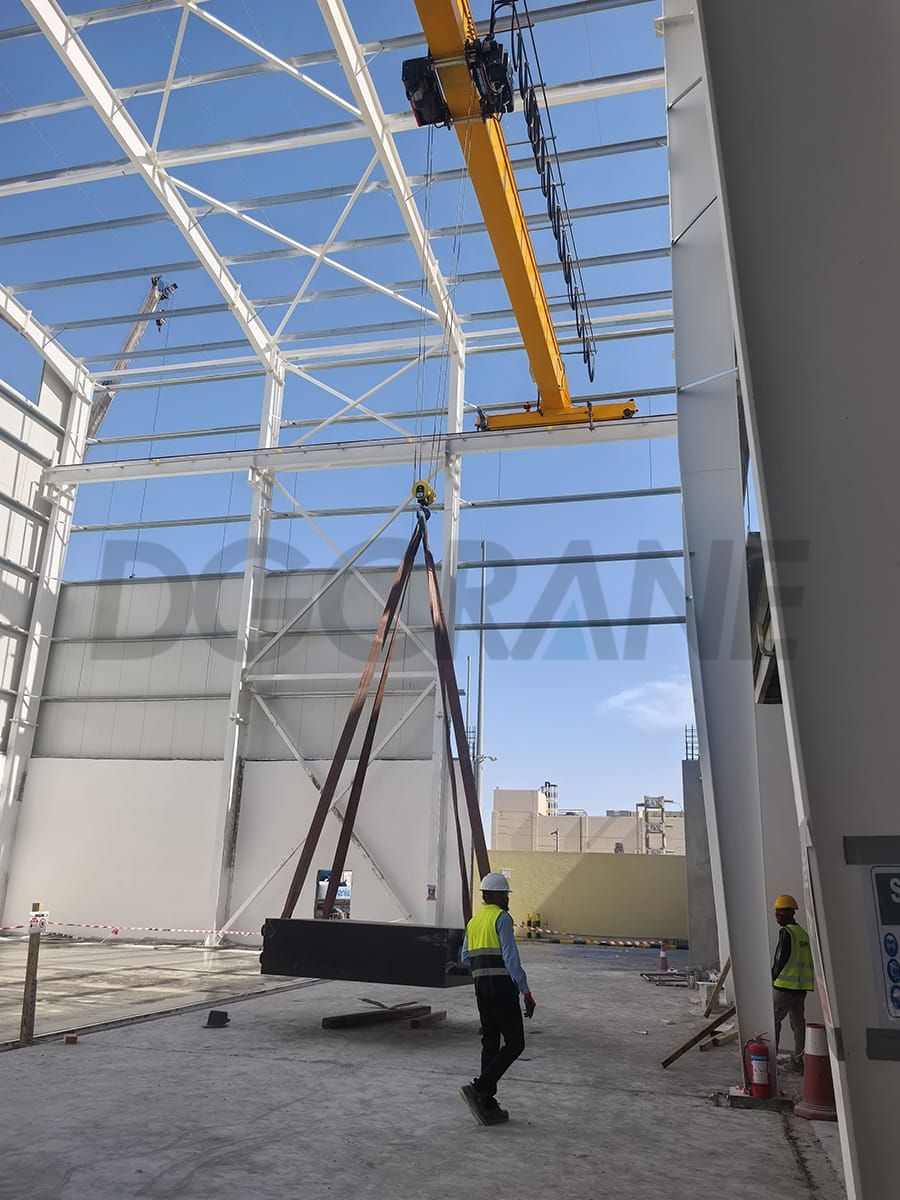

• Load Testing: After installation, load testing was conducted to verify that all performance parameters and safety protection devices met design standards and client requirements. Final acceptance was completed after successful testing.
• Training: On-site training was provided to operators, covering proper crane operation, safety procedures, and maintenance practices.

Project Results

• The single girder overhead crane operates stably in a 60°C high-temperature environment, with no faults in the power, control, or power supply systems, fully meeting the client's production needs.
• Professional engineers supervised the entire installation and commissioning process, ensuring reliable installation quality and smooth equipment operation.
• The client expressed high satisfaction with the overall quality and operation of the crane and stated that DGCRANE will be their preferred partner for future equipment needs.

We have extensive experience in exporting and delivering overhead crane projects in the Middle East. For high-temperature conditions, special parameter requirements, and on-site installation services, we can provide customized solutions. If you have any crane procurement needs, feel free to contact us for a dedicated solution and professional support.
