Explosion Proof Single Girder Overhead Cranes: Safe Lifting Solution for Hazardous Environments
The explosion proof electric single girder crane is a high-safety lifting device specifically designed for flammable and explosive environments. It ensures efficient material handling in hazardous working conditions. These cranes adopt advanced explosion-proof technology, effectively preventing fires or explosions caused by electrical equipment. Depending on specific operational needs and environmental conditions, explosion-proof electric single girder cranes can be categorized into the following two main types.

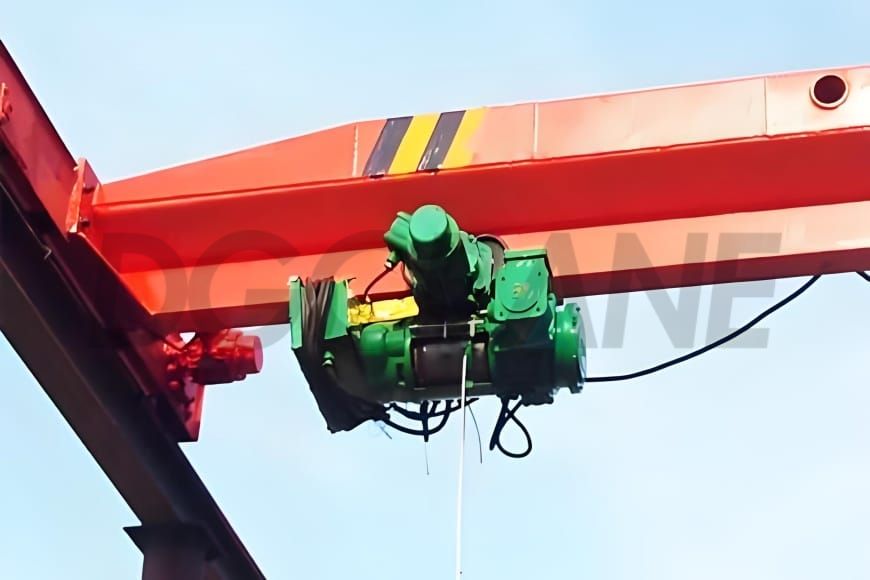

LB Explosion Proof Single Girder Overhead Crane
The explosion-proof single girder overhead crane features a compact structure and stable operation, with its main beam supported on both sides of the runway beams. It is suitable for indoor environments with sufficient overhead space. Designed in full compliance with explosion-proof standards, including all electrical components, this crane is widely used in hazardous areas (Zone 1 and Zone 2) such as petroleum, chemical, and military industries where flammable or explosive gases are present. With its simple structure and ease of maintenance, it is an ideal solution for medium and small lifting tasks.
Key Specifications
- Capacity: 1~20t
- Span length: 7.5-28.5m
- Lifting height: 6m/9m/12m/18m/24m
- Work duty: A3
- Explosion-proof classification: Ex d IIB T4, Ex d IIC T4
- Rated voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
- Crane control mode: Floor control / Remote control
Explosion Proof Single Girder Overhead Crane Price
| Capacity/t | Span/m | Lift Height/m | Duty Class | Power Supply | Price/USD |
|---|---|---|---|---|---|
| 20 | 13.5 | 12.5 | A3 | AC 380V 50Hz | $15,948 |
| 12.5 | 16.5 | 16 | A3 | AC 380V 50Hz | $12,676 |
| 10 | 19.5 | 16 | A3 | AC 380V 50Hz | $10,034 |
| 10 | 16.5 | 16 | A3 | AC 380V 50Hz | $9,103 |
| 5 | 17.4 | 19 | A3 | AC 380V 50Hz | $7,834 |

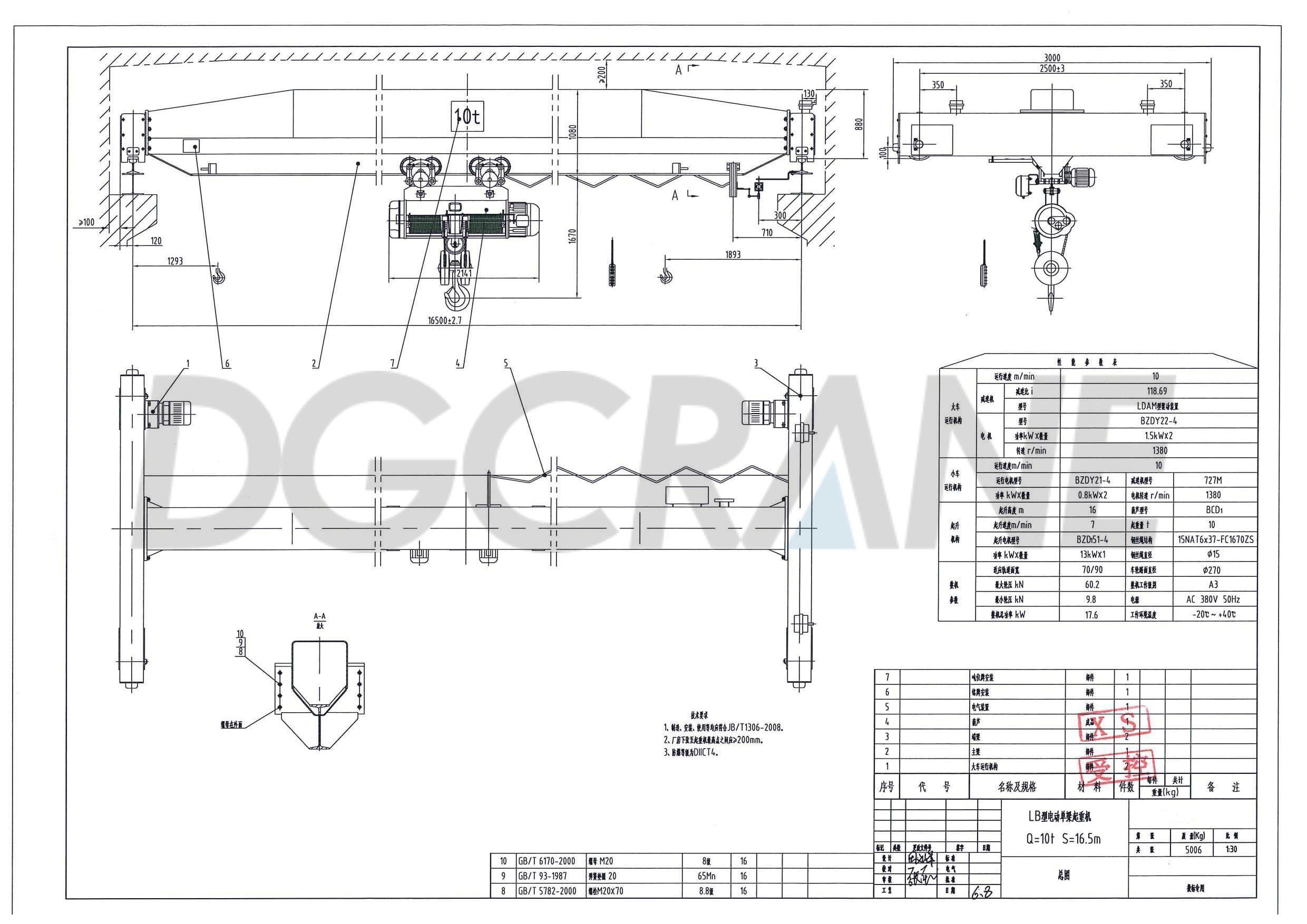

Explosion Proof Single Girder Overhead Crane Cases
- Lifting Capacity (t): 2
- Span (m): 12
- Trolley Speed (m/min): 20
- Crane Traveling Speed (m/min): 20
- Lifting Speed (m/min): 8
- Control Mode: Remote control
- Duty Class: A3
- Explosion-Proof Grade: Grade A paint booth, Level 2 explosion protection (Ex d IIC T5)

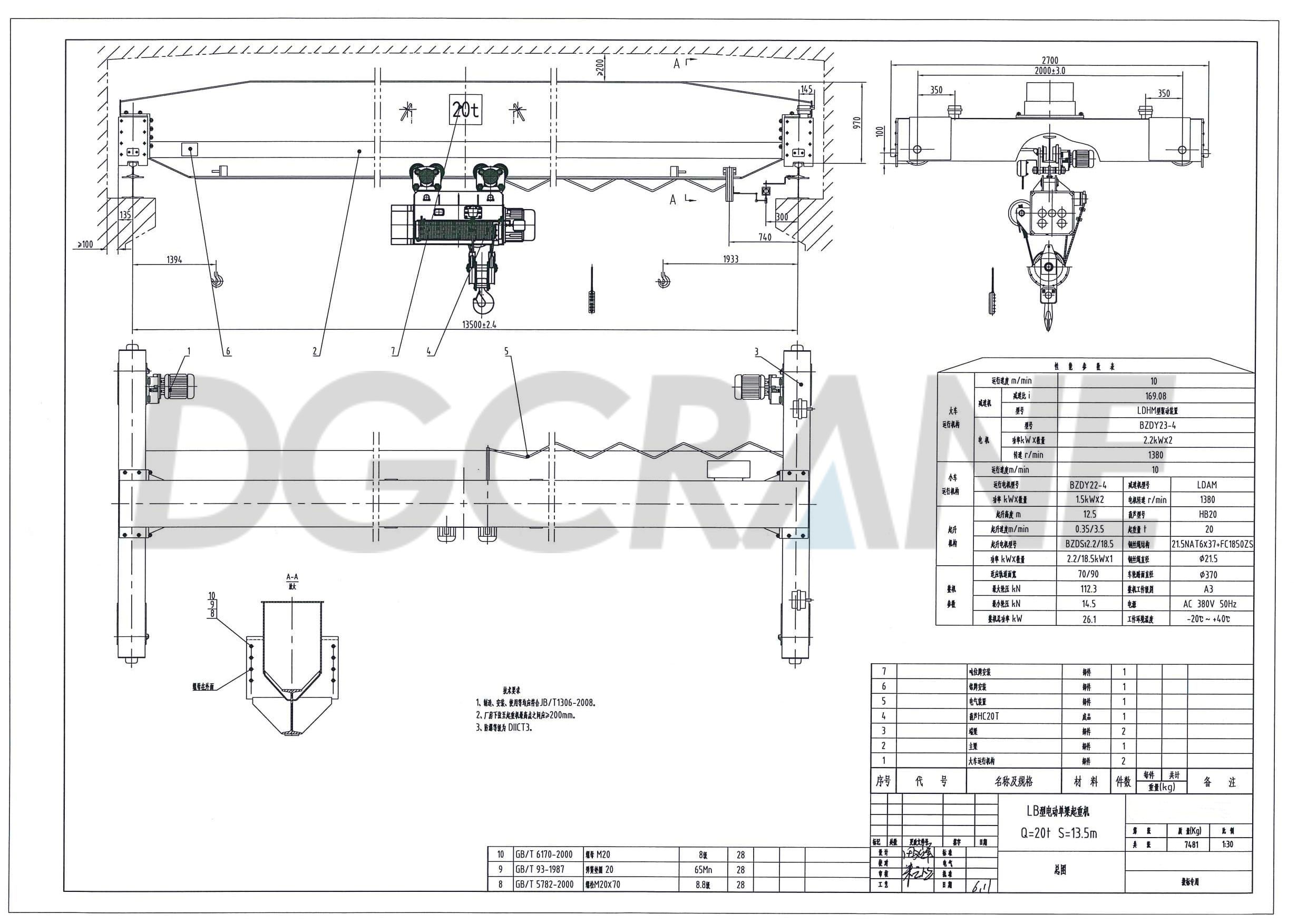

- Product: LB Explosion Proof Single Girder Overhead Crane
- Lifting Capacity: 20 tons
- Lifting Height: 12.5 meters
- Span: 13.5 meters
- Lifting Speed: 0.35 – 3.5 m/min
- Working Class: A3
- Power Supply: AC 380V 50Hz
- Explosion-Proof Grade: Exd II CT3
- Price: RMB 115,700 (tax included)

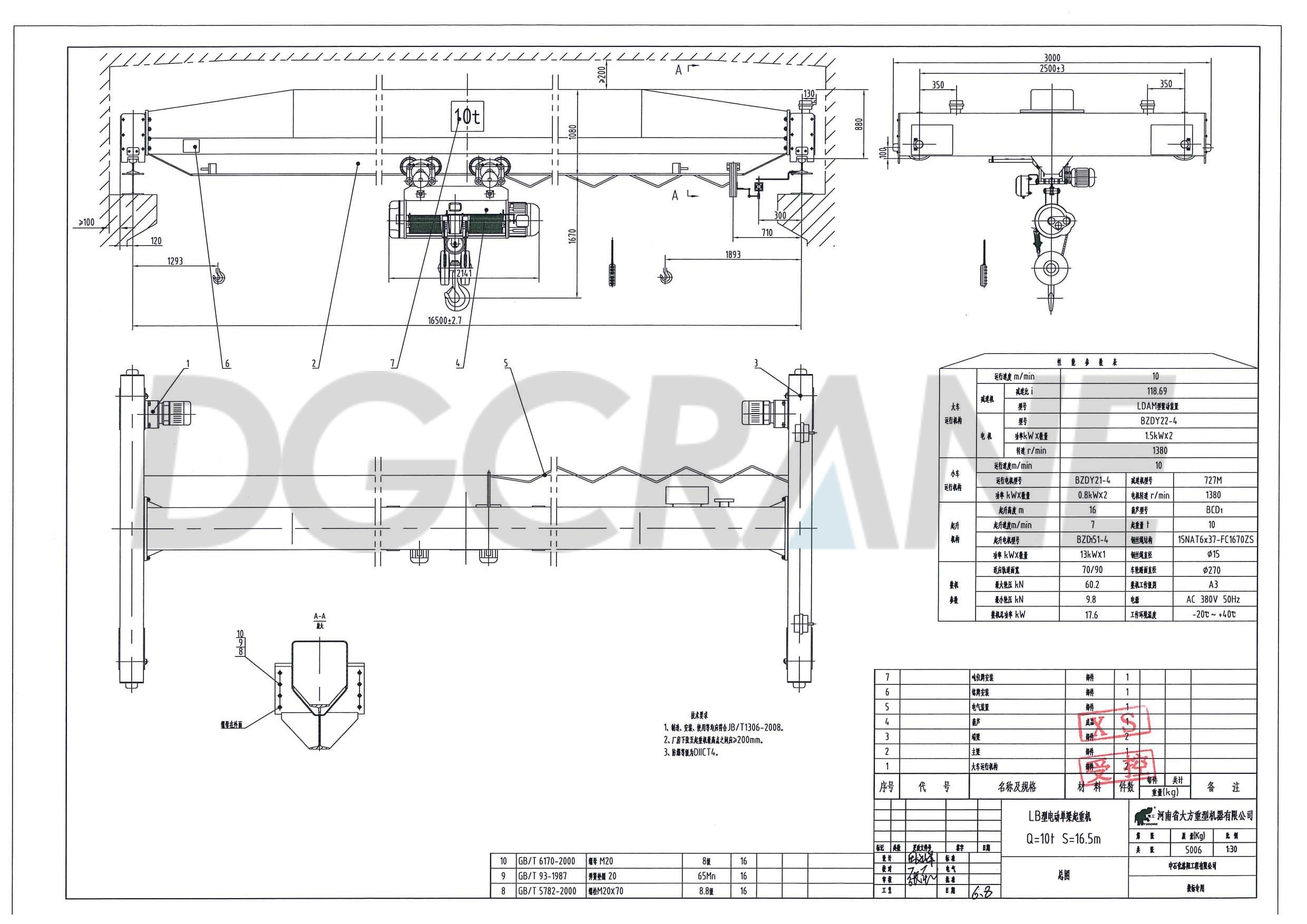

- Product: LB Explosion Proof Single Girder Overhead Crane
- Lifting Capacity: 10 tons
- Lifting Height: 16 meters
- Span: 16.5 meters
- Lifting Speed: 7 m/min
- Working Class: A3
- Power Supply: AC 380V 50Hz
- Explosion-Proof Grade: Exd II CT4

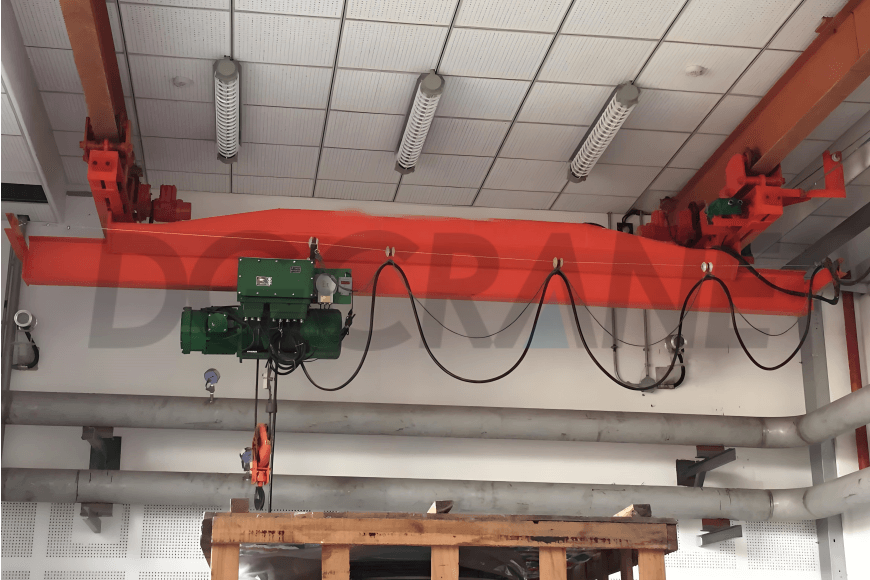

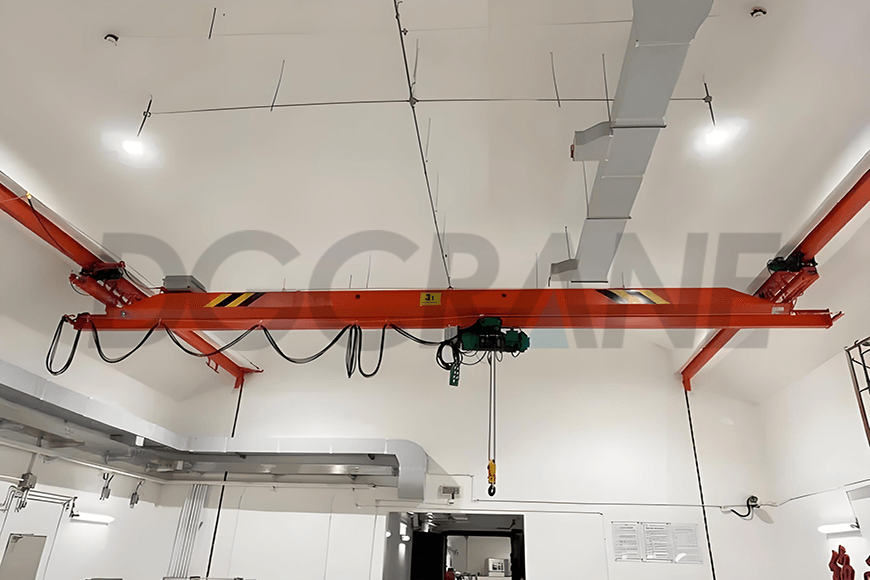

LXB Explosion Proof Single Girder Overhead Crane
The explosion-proof suspension single girder crane is mounted from above, with its runway tracks installed directly on the building roof or supporting beams. It is especially suitable for workshops where overhead space is limited but where the roof structure can bear the load. Like its overhead counterpart, this crane meets explosion-proof requirements and can operate safely in explosive gas atmospheres (Zone 1 and Zone 2). It is particularly well-suited for light-duty applications in space-constrained environments such as precision workshops or laboratory areas.
Key Specifications
- Capacity: 0.5~10t
- Span length: 3-16m
- Lifting height: 6m/9m/12m/18m/24m
- Work duty: A3
- Explosion-proof classification: Ex d IIB T4, Ex d IIC T4
- Rated voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
- Crane control mode: Floor control / Remote control
LXB Explosion Proof Single Girder Overhead Crane Price
| Lifting Capacity/t | Span/m | Lifting Height/m | Control Mode | Explosion-Proof Grade | Power Supply | Price/USD |
|---|---|---|---|---|---|---|
| 2 | 7 | 6 | Pendant + Remote | Ex d IIC T4 | AC 380V 50Hz | $3,586 |
| 5 | 7.5 | 9 | Pendant | Ex d IIB T4 | AC 380V 50Hz | $3,517 |
| 3 | 6 | 9.5 | Pendant | Ex d IIB T4 | AC 380V 50Hz | $3,052 |
| 5 | 5.5 | 8 | Pendant | Ex d IIB T4 | AC 380V 50Hz | $3,379 |
| 3 | 8 | 10 | Pendant | Ex d IIB T4 | AC 380V 50Hz | $3,186 |

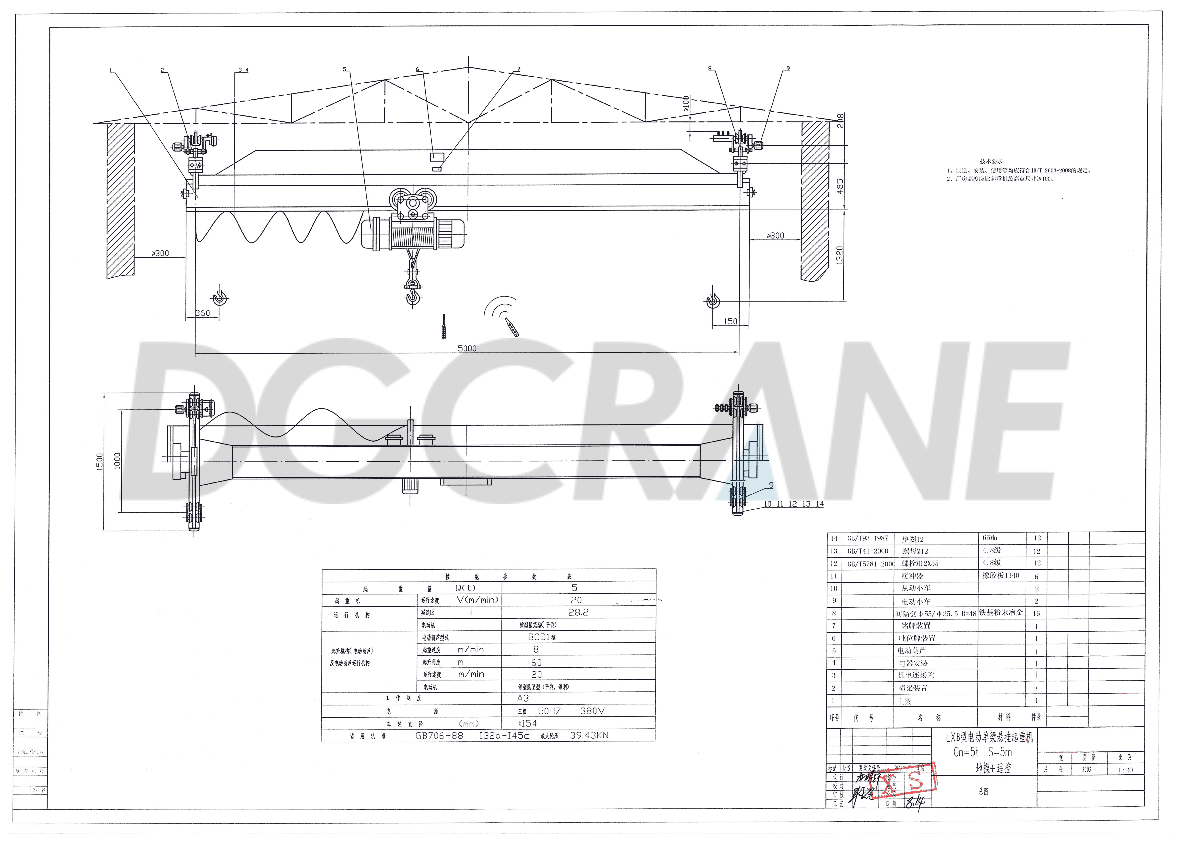

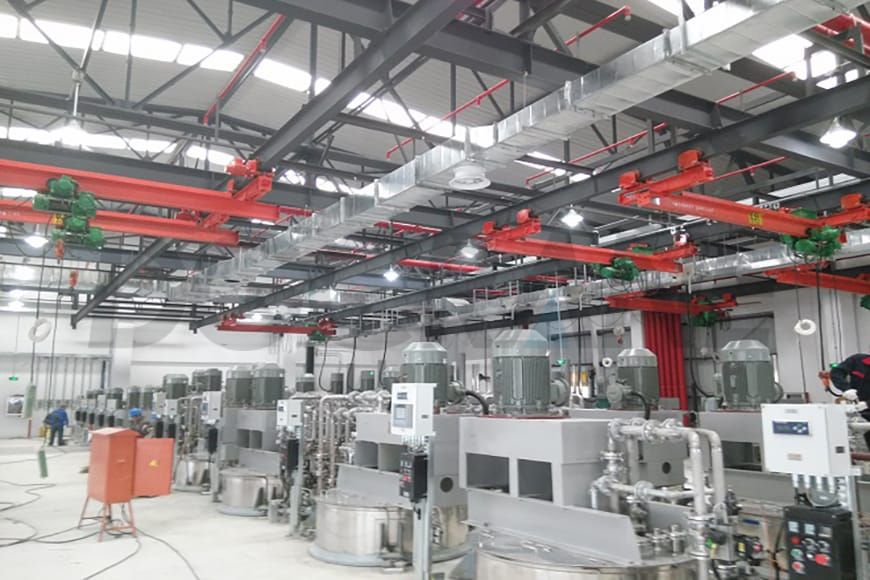

LXB Explosion Proof Single Girder Overhead Crane Cases
- For Maintenance of Gasifier Burner in High-Sulfur Coal Clean Utilization Electro-Thermal Integration Project
- Lifting Capacity (t): 5
- Lifting Speed (m/min): 8
- Trolley Speed (m/min): 20
- Crane Traveling Speed (m/min): 20
- Control Mode: Remote control + Pendant control
- Duty Class: A3
- Explosion-Proof Grade: Ex d IIC T4

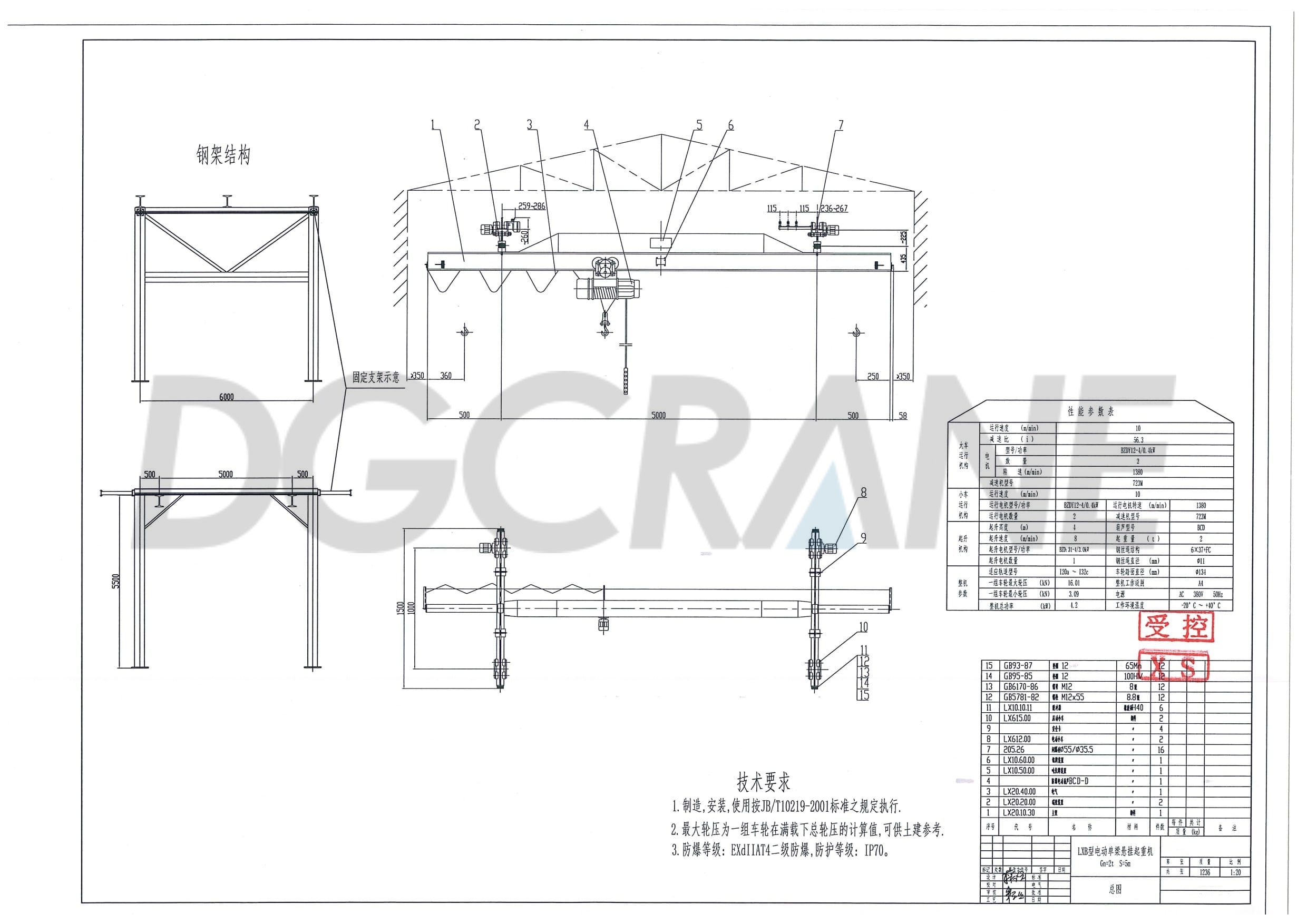

- Product: LXB Explosion Proof Single Girder Overhead Crane
- Lifting Capacity: 2 tons
- Lifting Height: 4 meters
- Span: 5 meters
- Lifting Speed: 8 m/min
- Working Class: A3
- Power Supply: AC 380V 50Hz
- Explosion-Proof Grade: Exd II A T4
- Price: RMB 179,500 (tax included)

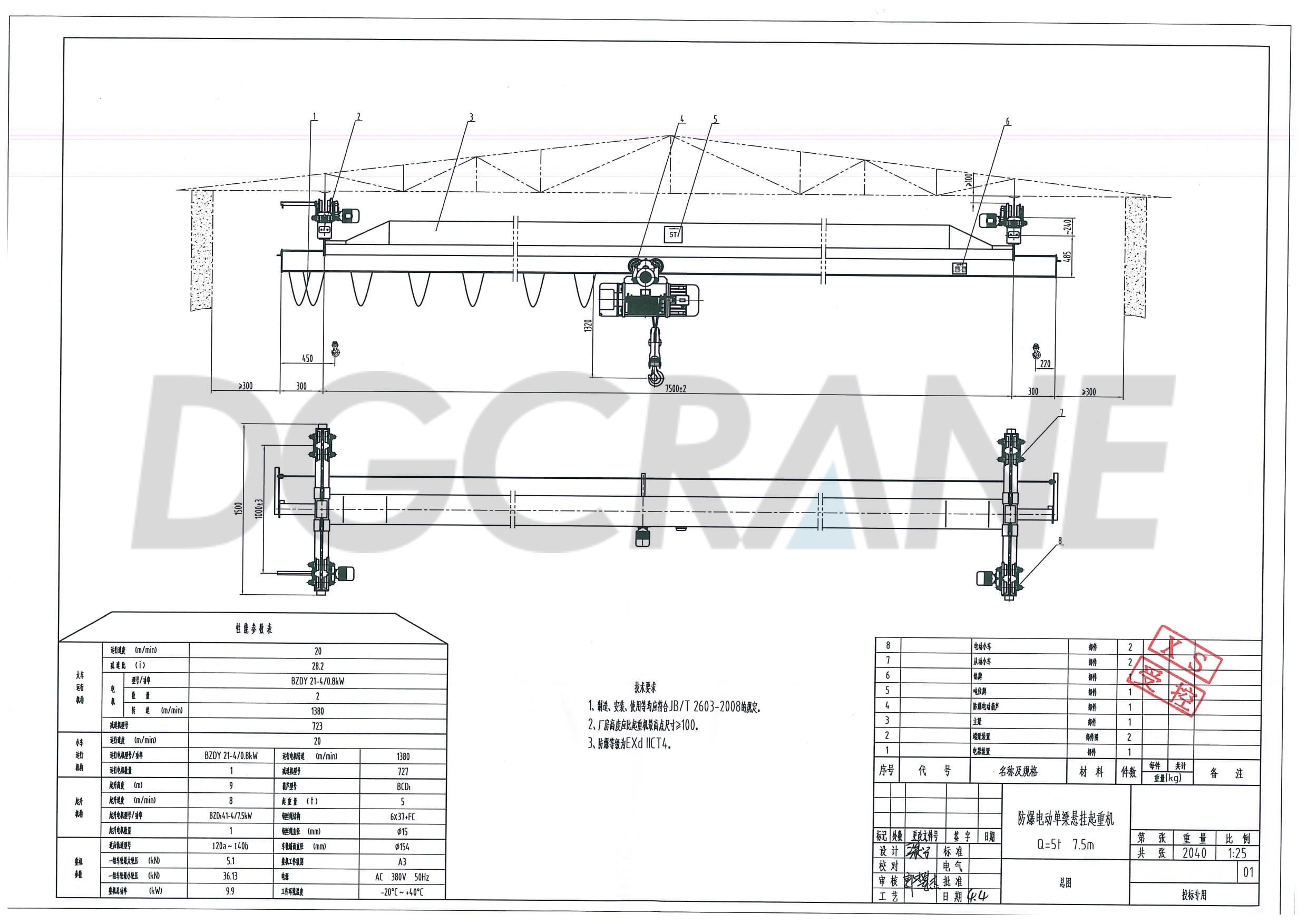

- Product: LXB Explosion Proof Single Girder Overhead Crane
- Lifting Capacity: 5 tons
- Lifting Height: 9 meters
- Span: 7.5 meters
- Lifting Speed: 8 m/min
- Working Class: A3
- Power Supply: AC 380V 50Hz
- Explosion-Proof Grade: Exd II CT4
Application Environment
This explosion proof single girder overhead crane complies with the JB/T10219-2001 standard for explosion-proof overhead cranes, with explosion-proof grades of Ex d IIB T4 and Ex d IIC T4. It is suitable for explosive gas atmospheres formed by flammable gases or vapors with ignition temperatures not lower than the T4 group (135℃) mixed with air. The crane is designed for use in hazardous areas classified as Zone 1 or Zone 2, but not suitable for Zone 0.
- Zone 0: Areas where explosive gas mixtures are present continuously, frequently, or for long periods under normal conditions.
- Zone 1: Areas where explosive gas mixtures are likely to occur under normal conditions.
- Zone 2: Areas where explosive gas mixtures are not normally present, but may appear occasionally and briefly due to abnormal situations such as equipment failure or operator error.
Examples of hazardous gases applicable to this crane are listed below. For other gases not listed here, please refer to Appendix of GB3836.1.
| Explosion-proof Mark | Example Hazardous Gases |
| Ex d II BT4 | Ethane, propane, butane, heptane, decane, ethylene, propylene, carbon monoxide, gasoline, acetone, styrene, toluene, benzene, methanol, ethanol, vinyl chloride, acetaldehyde, diethyl ether |
| Ex d II CT4 | Hydrogen, water gas, acetylene, and gases other than those listed under Ex d IIB T4 |
In summary, this crane is designed for environments with a certain explosion risk but not the highest risk level (Zone 0). It uses appropriate explosion-proof grades according to the type of hazardous gas to ensure safety and reliability.
Explosion-Proof Certificates
Our explosion proof single girder overhead cranes have passed the IECEx for global standards, ATEX for Europe, CCC, Mining Safety Certificate, and Explosion-Proof Qualification Certificate for China.
At DGCRANE, we are committed to delivering high-quality explosion-proof lifting solutions that meet the highest safety standards. Our Explosion proof Single Girder Overhead Cranes are designed for reliable performance in hazardous environments, ensuring both operational safety and long-term durability.
With extensive export experience and a strong global service network, we provide professional support from consultation to installation. Trusted by clients in oil, gas, chemical, and other high-risk industries around the world, DGCRANE is your dependable partner for safe and efficient lifting.
