Rigging Hook: Reliable Industrial Hooks for Safe Load Handling

Frida
Clevis Hook,Eye Hook,Rigging Hook,Self Locking Hook,Webbing Hook

Rigging hooks play a crucial role in a wide range of industries, providing a secure and efficient means of lifting and moving heavy loads. Whether you’re involved in construction, manufacturing, or any field that requires material handling, understanding the various types of rigging hooks and their specific applications is essential for maintaining safety and optimizing productivity.

Main Types of Rigging Hook

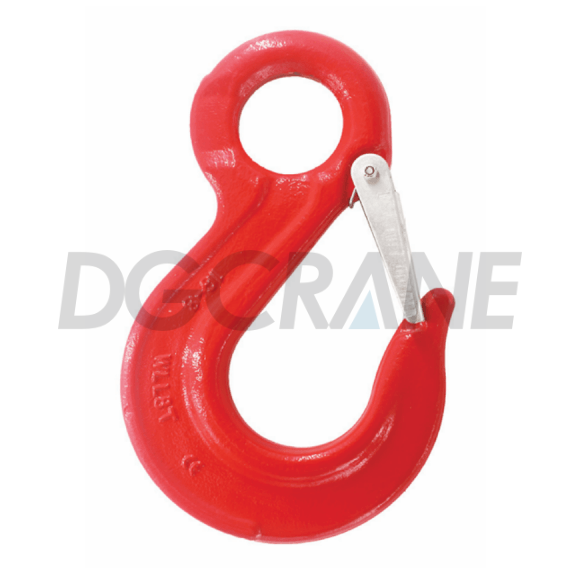

Rigging Hook G80 Eye Sling Hook
G80 Eye Sling Hook with Cast Latch
G80 Clevis Sling Hook with Cast Latch
G80 Clevis Sling Hook with Cast Latch

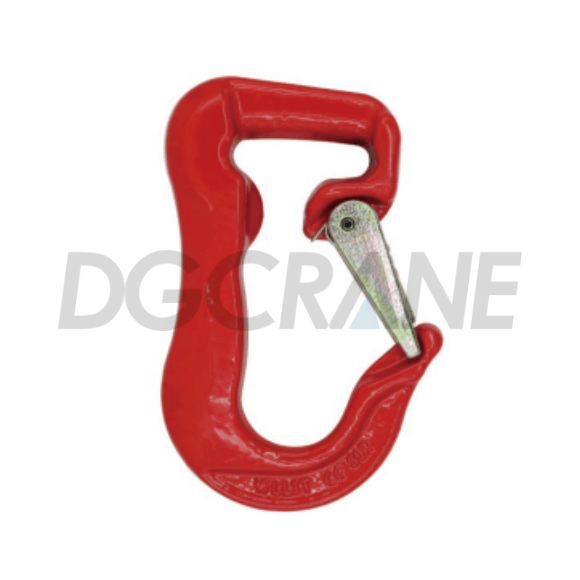

G80 Webbing Sling Hook
G80 Webbing Sling Hook

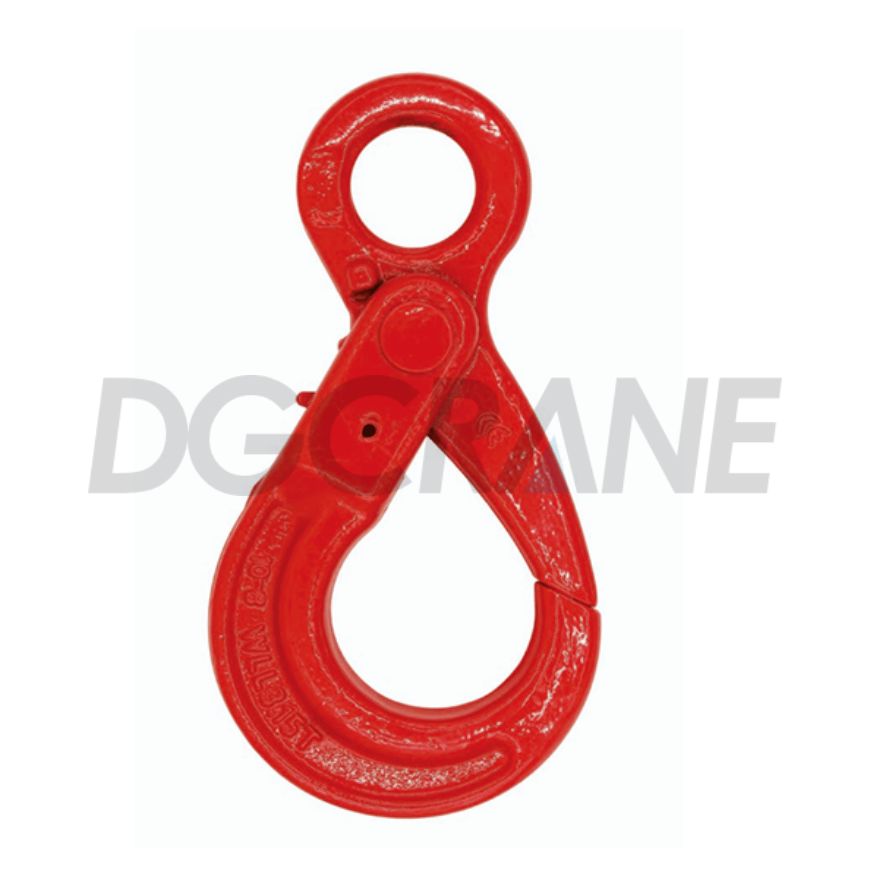

G80 Eye Selflock Hook
G80 Eye Selflock Hook
G80 Swivel Sling Hook with Cast Latch
G80 Swivel Sling Hook with Cast Latch

Features of Rigging Hook

  • Forged or welded super alloy steel.
  • Individually proof tested at 2.5 times Working Load Limit.
  • 100%MagnafluxCrack Detection.
  • Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
  • Meet standard EN1677.
  • Strict break load test.
  • All load pins are 100% individually inspected and tested.

Eye Hook

Eye hooks, as the name suggests, have an eye-shaped opening at the top, allowing for easy attachment to lifting devices such as chains or ropes. Their versatility makes them suitable for a wide range of lifting operations, including overhead lifting, rigging equipment, and suspending loads. Eye hooks are available in various configurations, such as swivel eyes or self-locking eyes, providing flexibility and convenience in different scenarios.

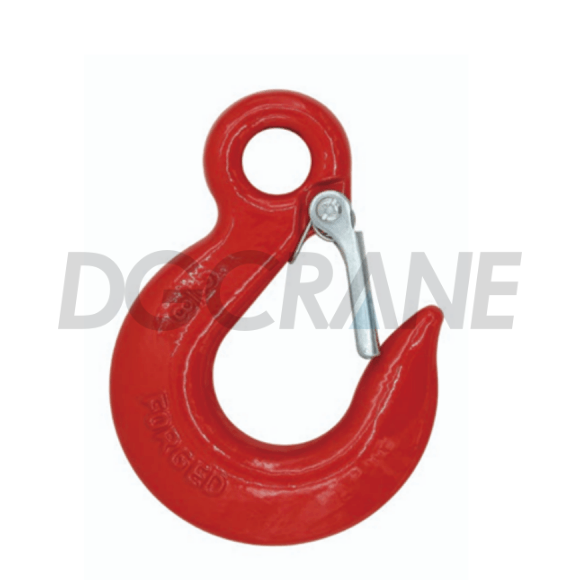

G70 Eye Slip Hook
G70 Eye Slip Hook

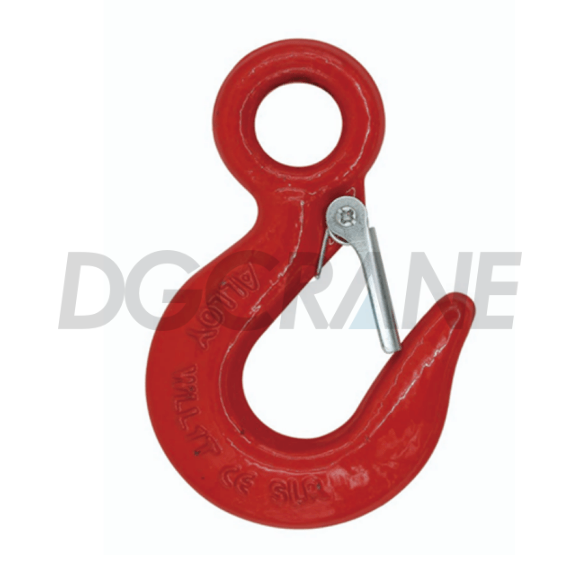

G70 Forged Eye Sling Hook
G70 Forged Eye Sling Hook

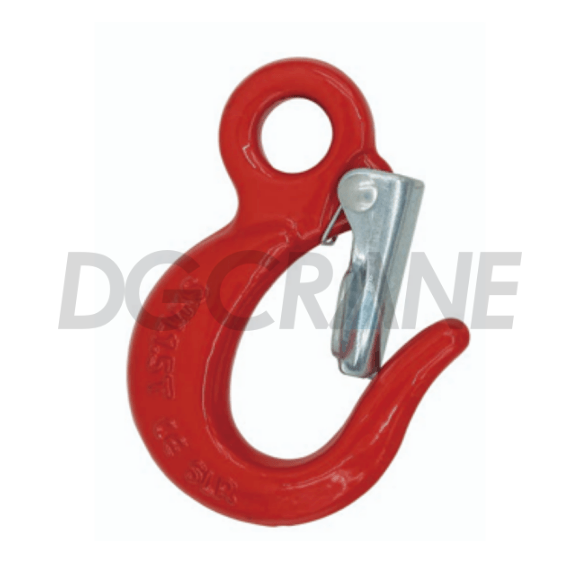

G70 Eye Large Openning Hook with Cast Latch
G70 Eye Large Openning Hook with Cast Latch

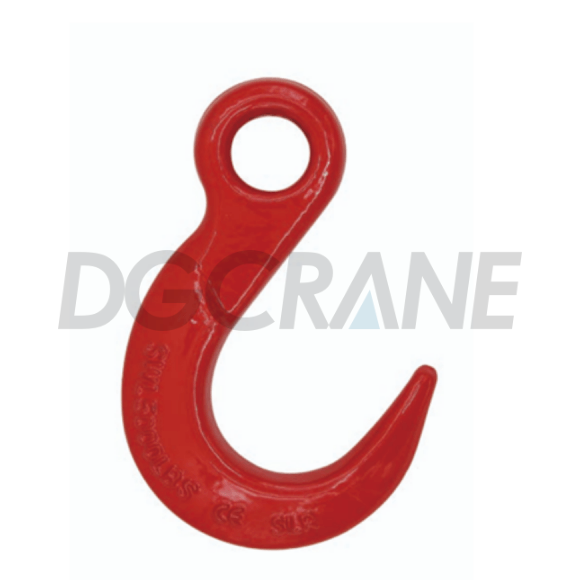

G70 Eye Large Openning Hook
G70 Eye Large Openning Hook
G80 Eye Sling Hook 1
G80 Eye Sling Hook

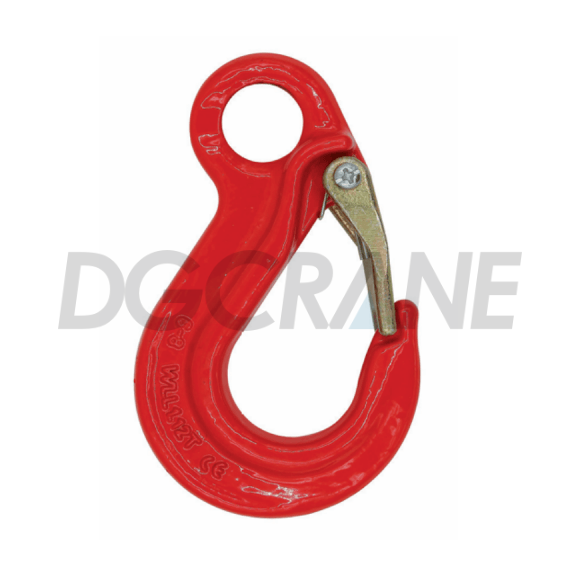

G80 Eye Slip Hook
G80 Eye Slip Hook

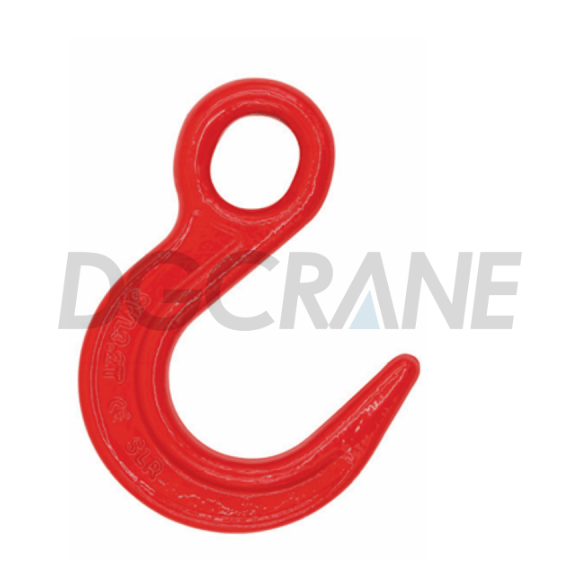

G80 Special Eye Grab Hook
G80 Special Eye Grab Hook

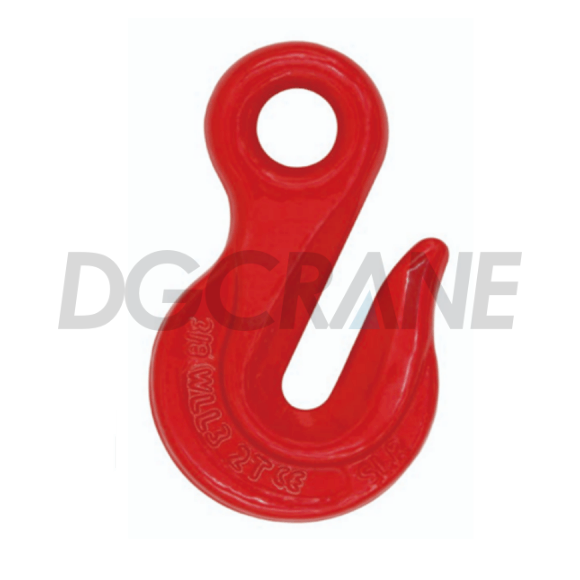

G80 US Deep Throat Eye Grab Hook
G80 US Deep Throat Eye Grab Hook

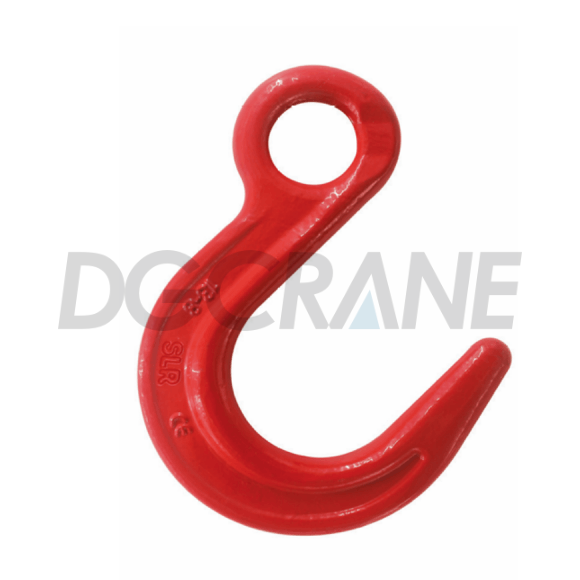

G80 Eye Large Openning Hook 1
G80 Eye Large Openning Hook

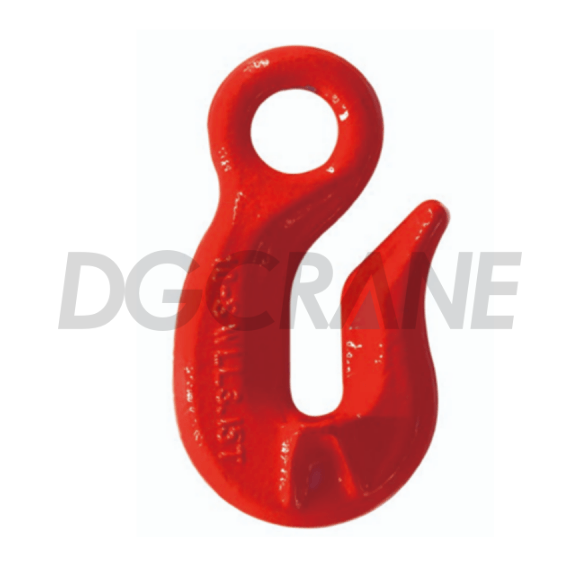

G80 Deep Throat Eye Grab Hook
G80 Deep Throat Eye Grab Hook
G80 Eye Selflock Hook 1
G80 Eye Selflock Hook

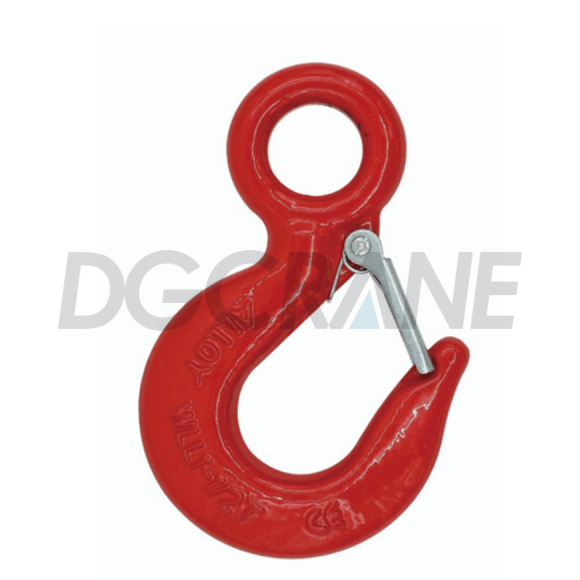

Alloy Eye Sling Hook with Cast Latch
Alloy Eye Sling Hook with Cast Latch

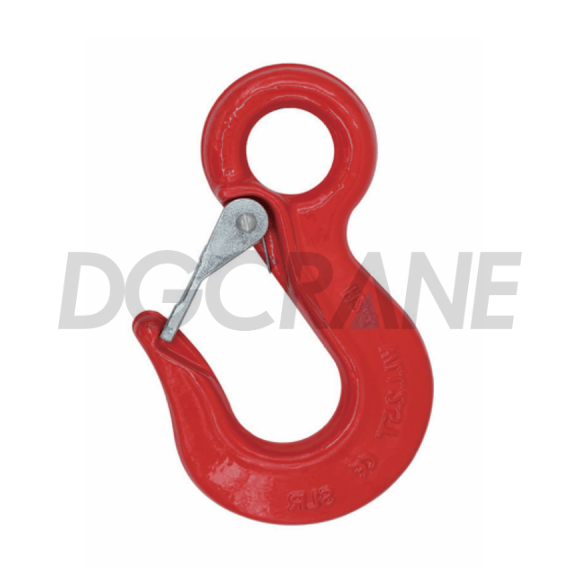

G50 DIN Eye Sling Hook
G50 DIN Eye Sling Hook

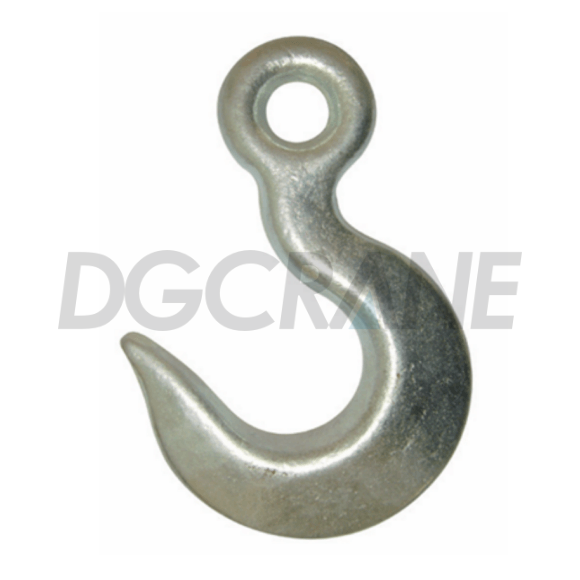

Eye Large Openning Hook
Alloy Eye Large Openning Hook

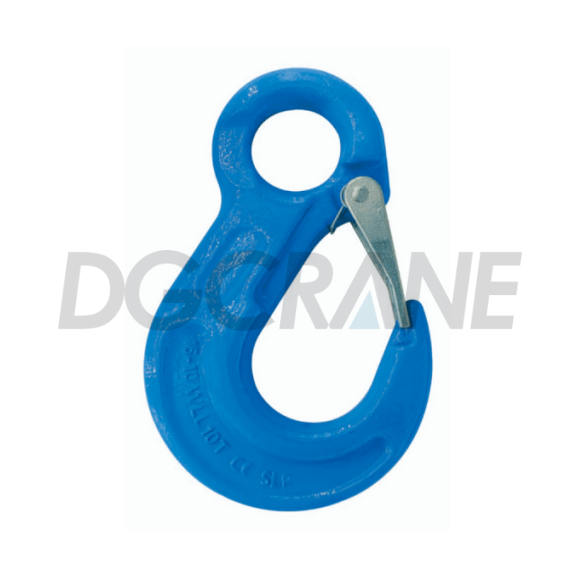

G100 Eye Sling Hook with Cast Latch
G100 Eye Sling Hook with Cast Latch

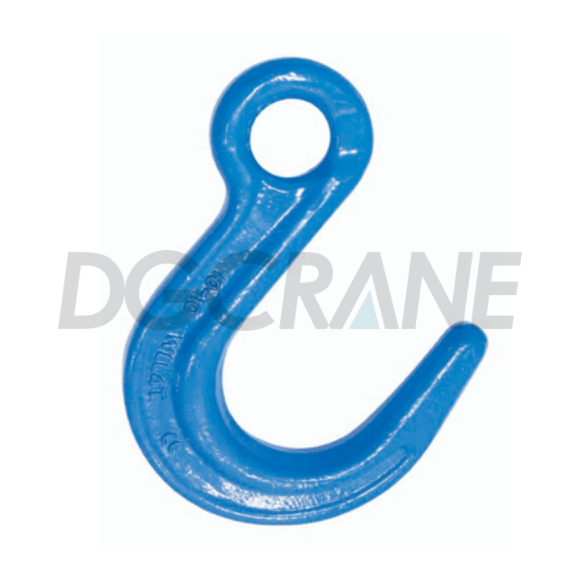

G100 Eye Large Openning Hook
G100 Eye Large Openning Hook

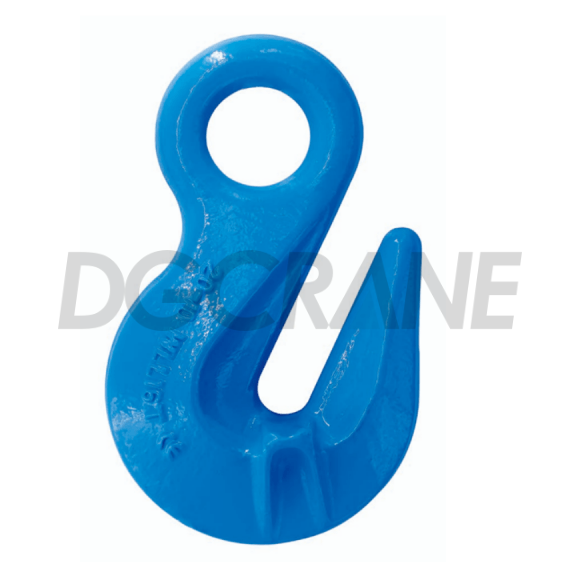

G100 Eye Shortening Grab Hook
G100 Eye Shortening Grab Hook

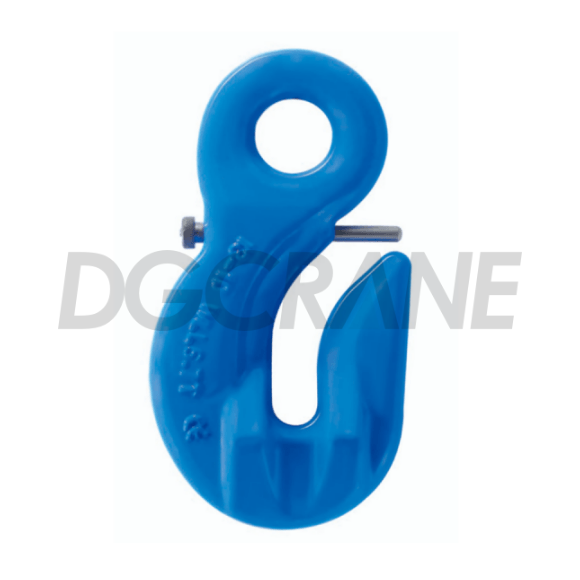

G100 Special Eye Grab Hook with Safety Pin
G100 Special Eye Grab Hook with Safety Pin

Clevis Hook

The clevis hook is one of the most widely recognized types of rigging hooks. It features a U-shaped design with a latch that secures the load. Clevis hooks come in various sizes and capacities, making them suitable for a range of lifting applications. From hoisting heavy machinery to securing cargo during transportation, clevis hooks provide versatility and reliability.

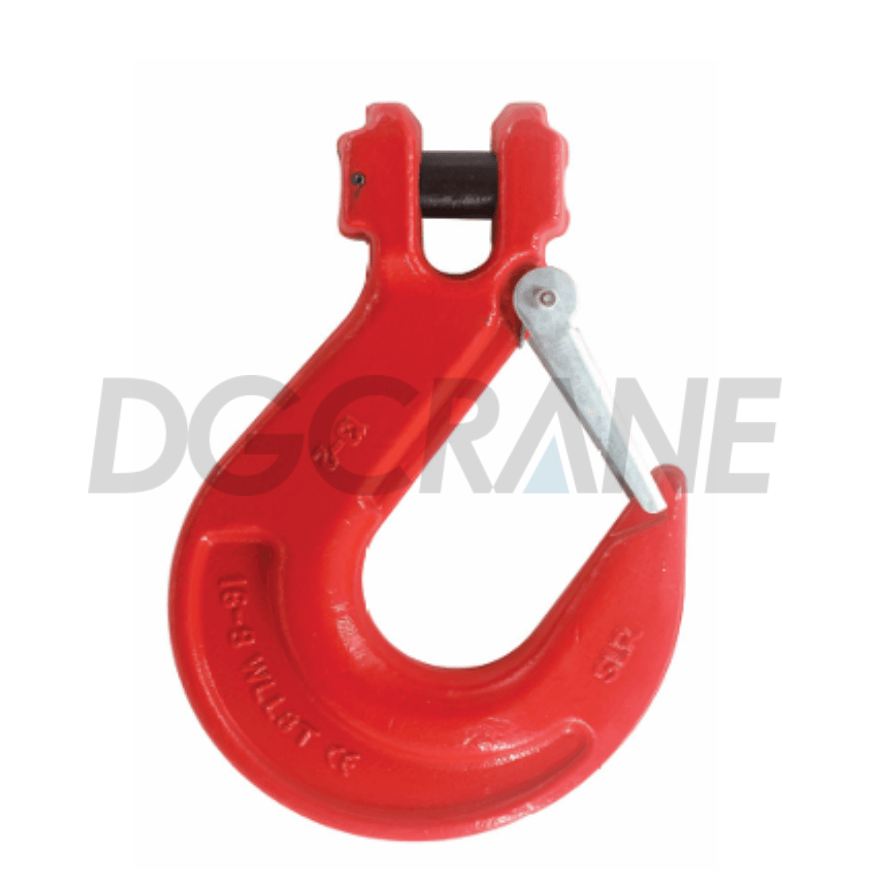

G80 Clevis Sling Hook with Cast Latch 1
G80 Clevis Sling Hook with Cast Latch

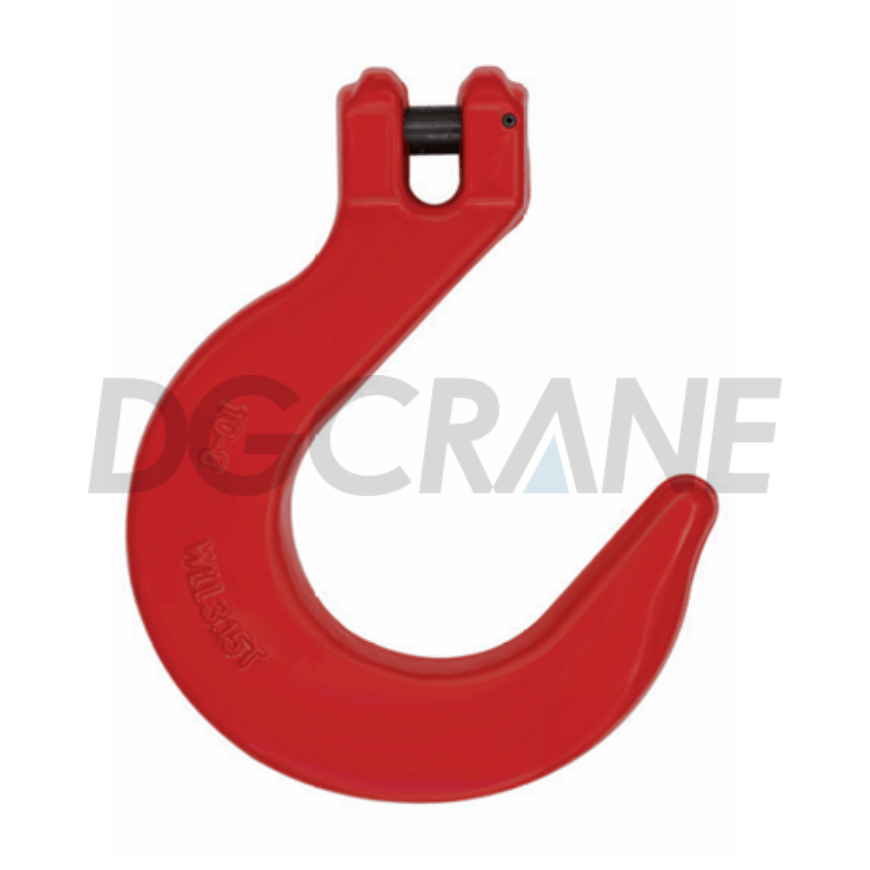

G80 Clevis Large Openning Hook
G80 Clevis Large Openning Hook

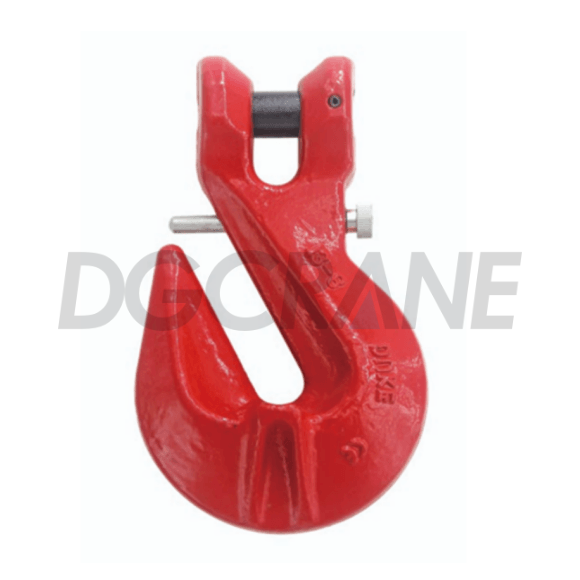

G80 Clevis Shortening Grab Hook with Safety Pin
G80 Clevis Shortening Grab Hook with Safety Pin

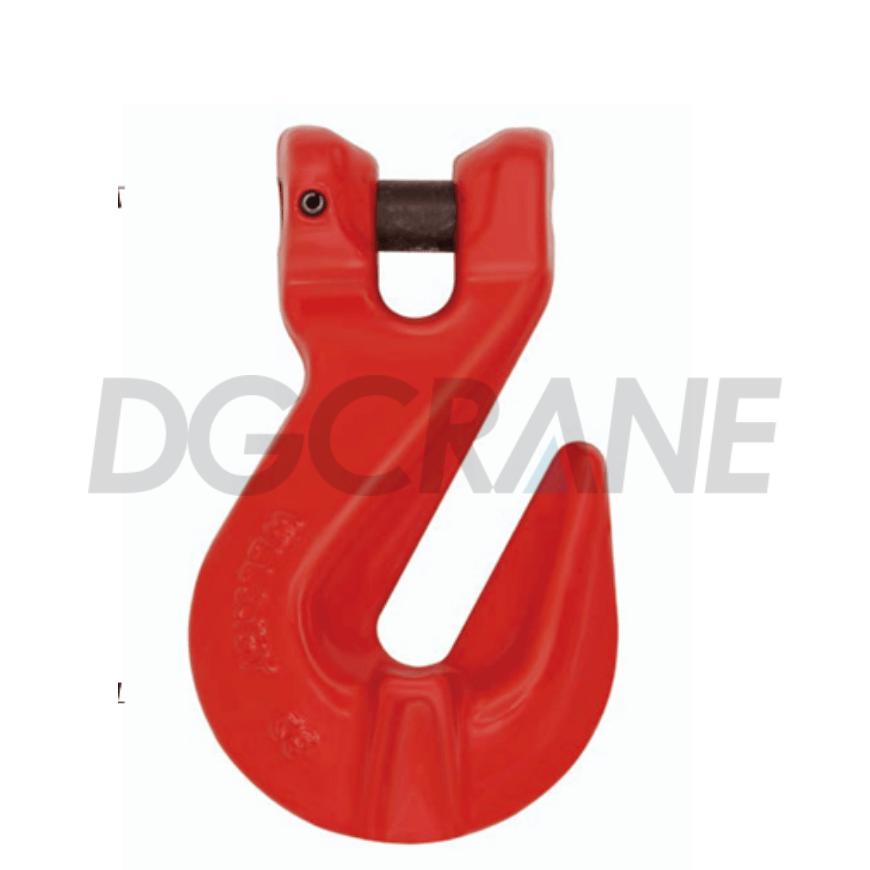

G80 Clevis Shortening Grab Hook
G80 Clevis Shortening Grab Hook

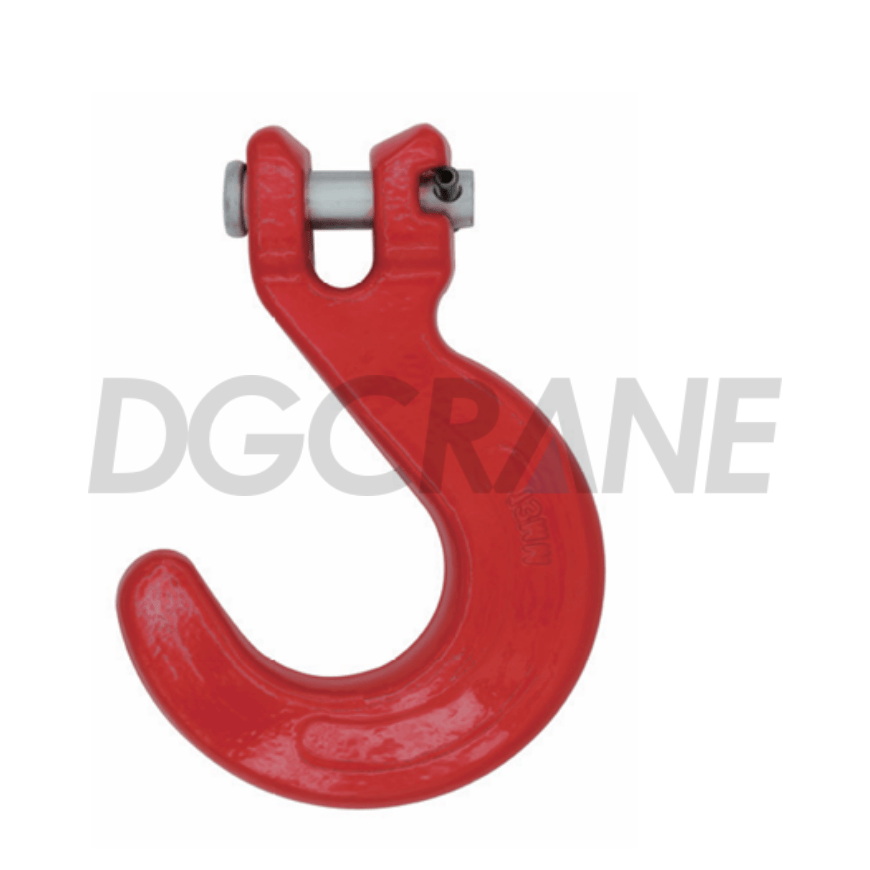

G80 Container Hook
G80 Container Hook

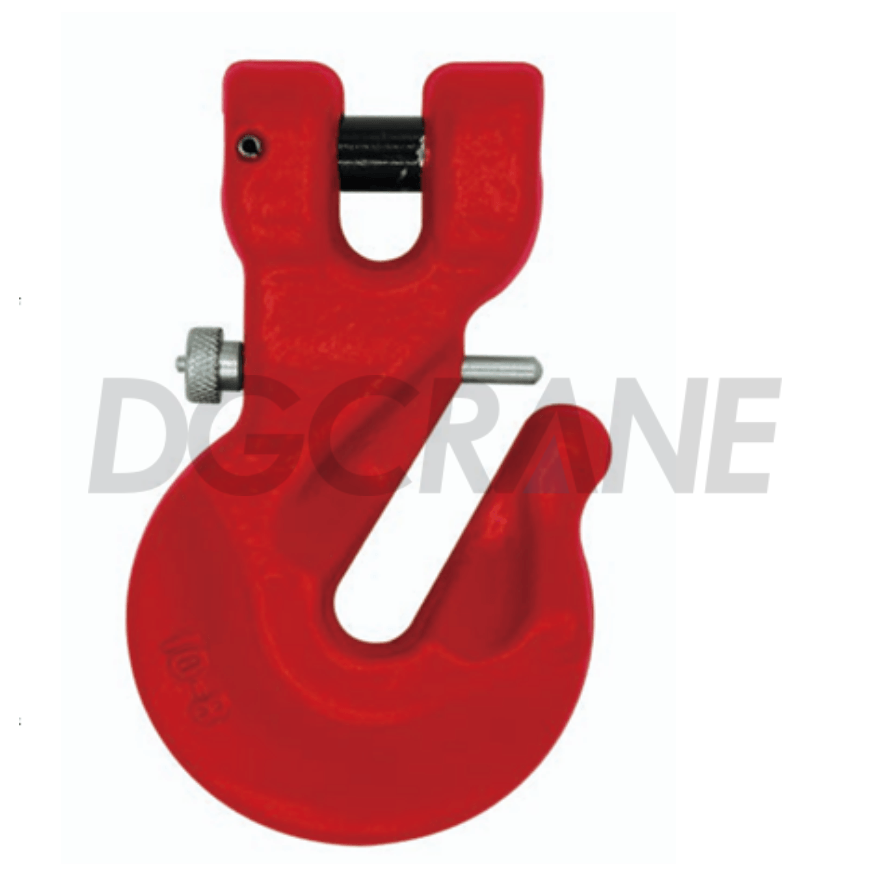

Special Clevis Grab Hook with Safety Pin
Special Clevis Grab Hook with Safety Pin

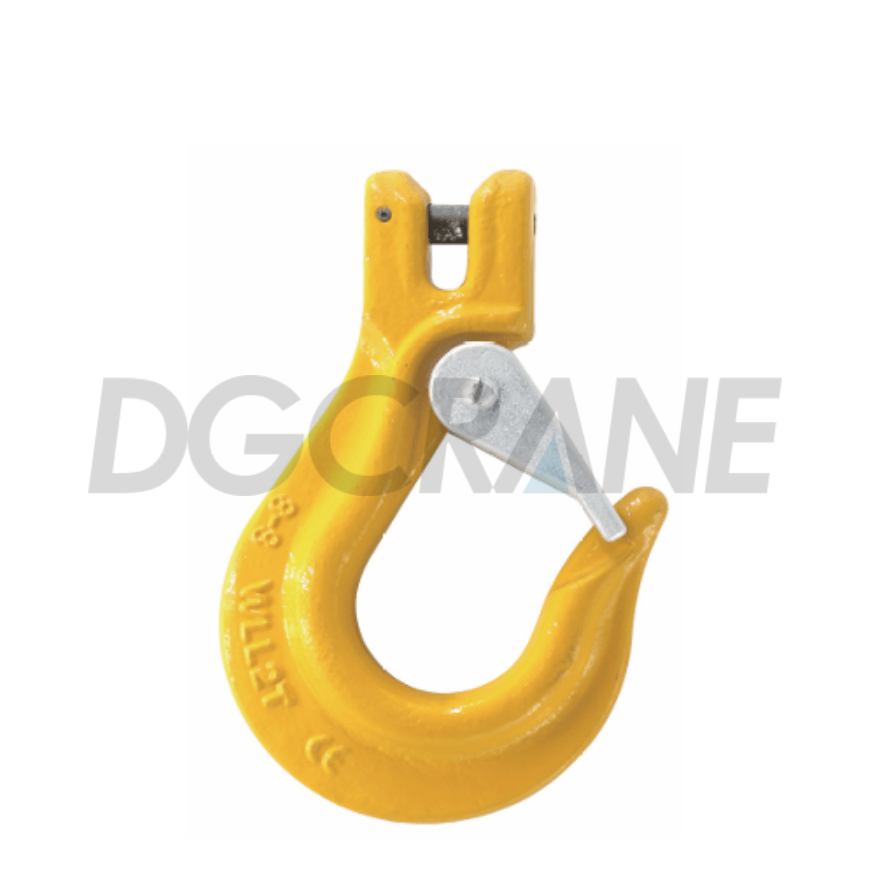

G80 Clevis Slip Hook 1
G80 Clevis Slip Hook

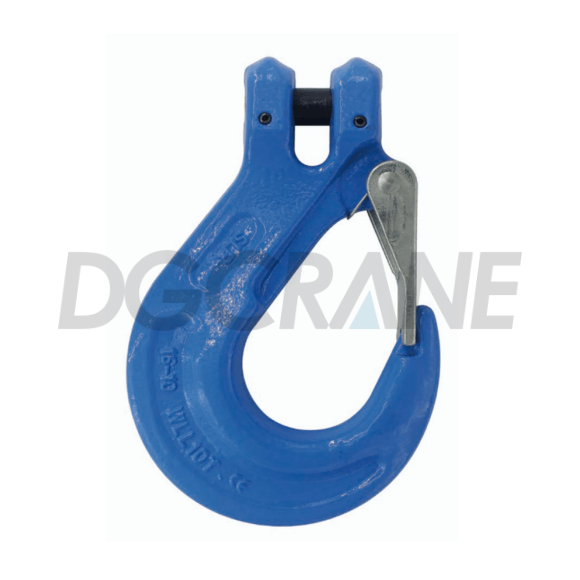

G100 Clevis Sling Hook with Cast Latch 1
G100 Clevis Sling Hook with Cast Latch

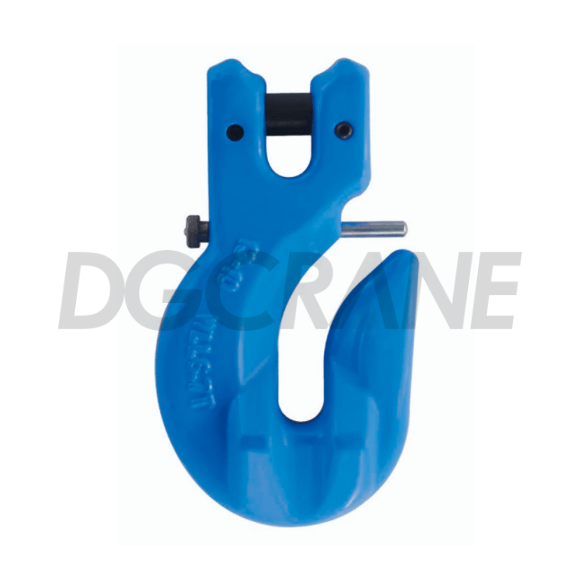

G100 Clevis Grab Hook with Safety Pin
G100 Clevis Grab Hook with Safety Pin

Self Locking Hook

A self locking hook incorporates a robust and well-engineered latch as an integral component. The main advantage of a self locking hook is its exceptional durability and reliability. These hooks are designed in a way that makes it extremely difficult to break the latch, providing enhanced safety during lifting operations. Once the latch closes, it remains securely locked until the load is released from the hook, ensuring a strong and stable connection.

G80 Eye Selflock Hook 2
G80 Eye Selflock Hook

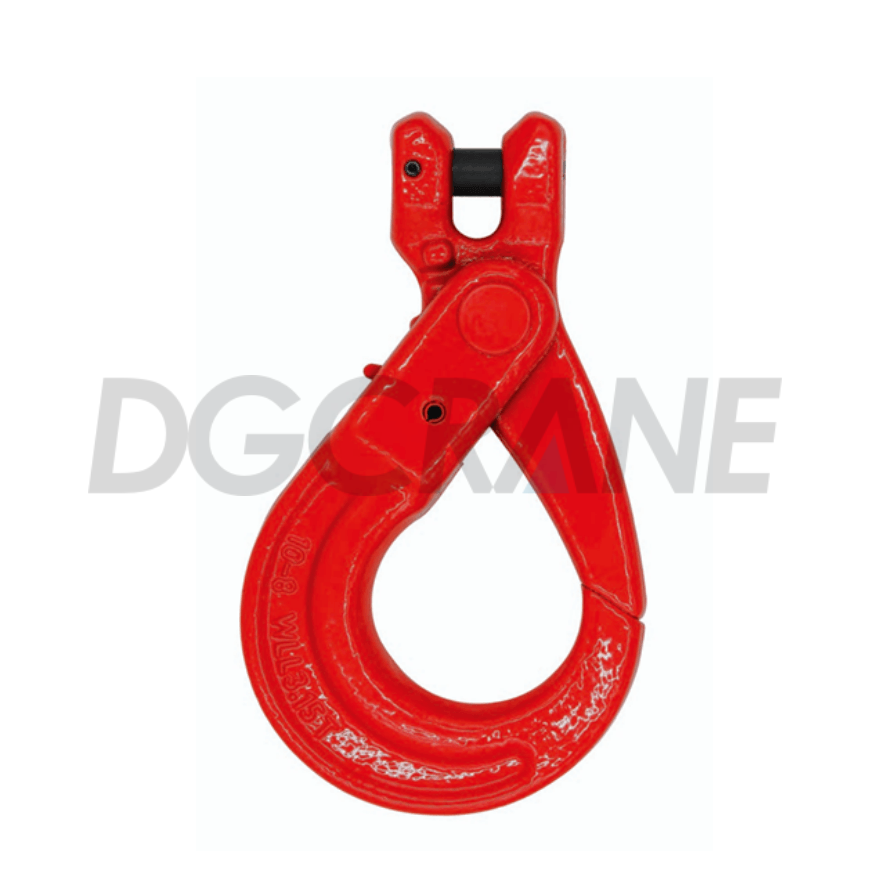

G80 Selflock Hook
G80 Clevis Selflock Hook
G80 Clevis Swivel Selflock Hook
G80 Clevis Swivel Selflock Hook

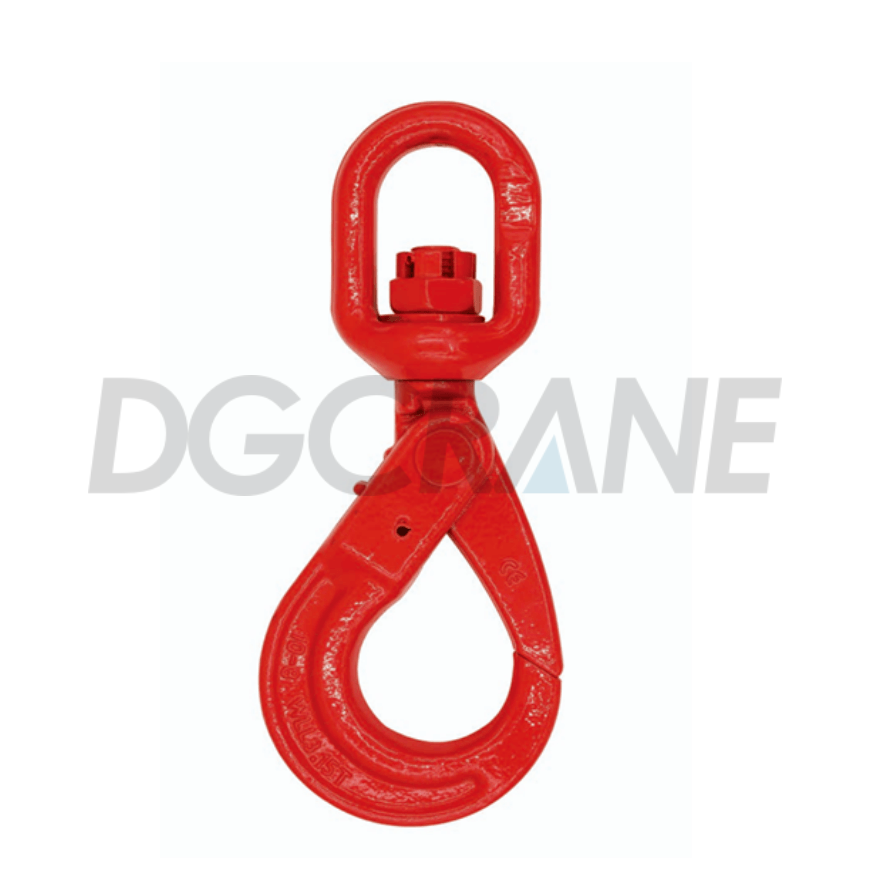

G80 Swivel Sling Selflock Hook
G80 Swivel Sling Selflock Hook

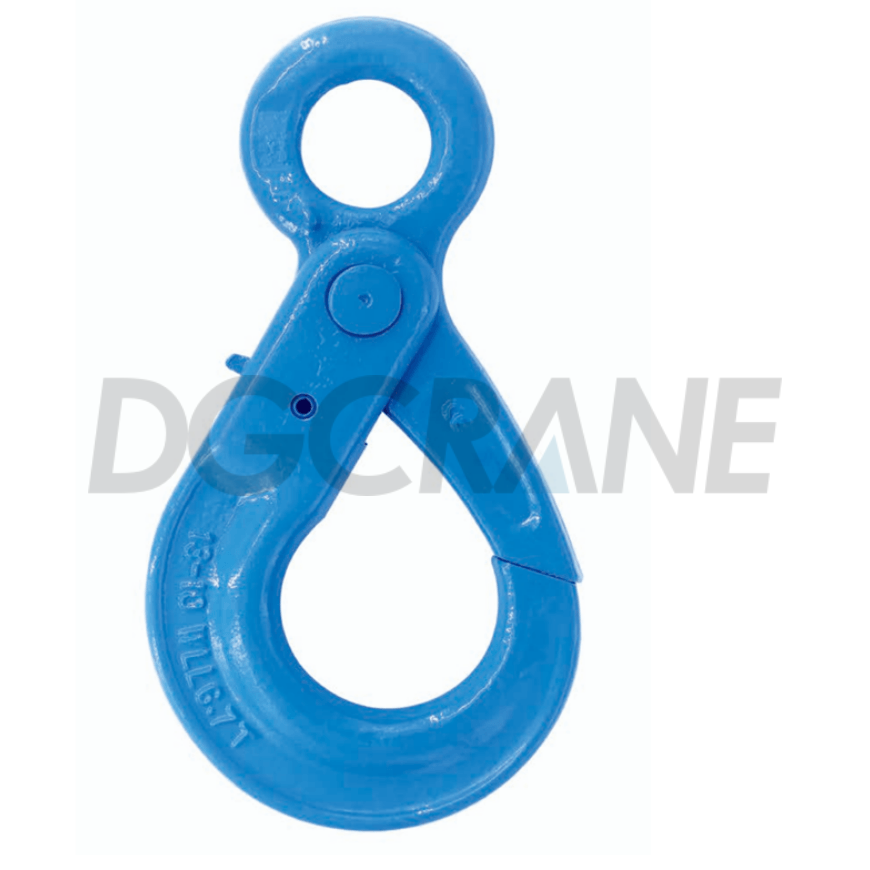

G100 Selflock Hook
G100 Eye Selflock Hook

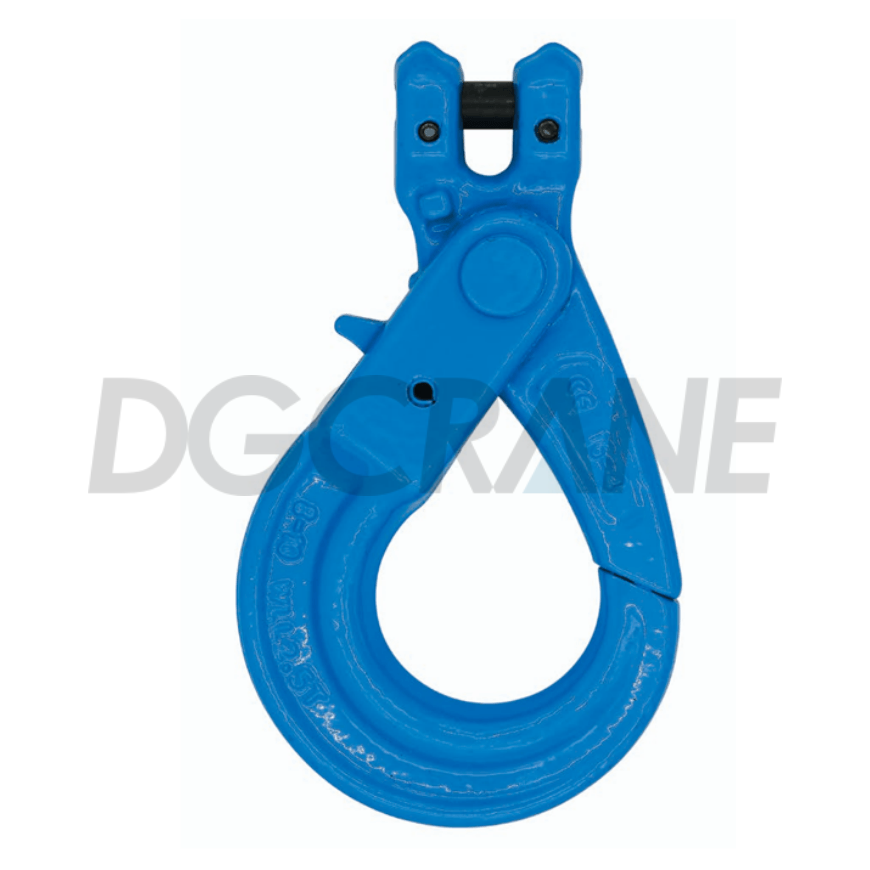

G100 Clevis Selflock Hook
G100 Clevis Selflock Hook

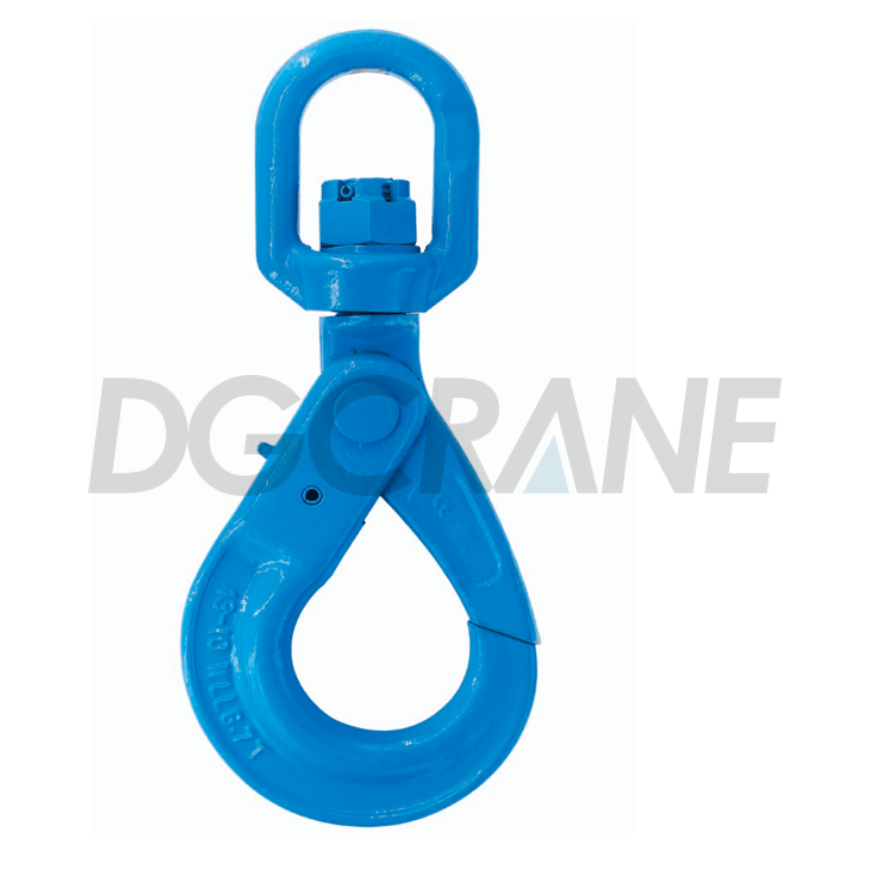

G100 Swivel Selflock Hook
G100 Swivel Selflock Hook

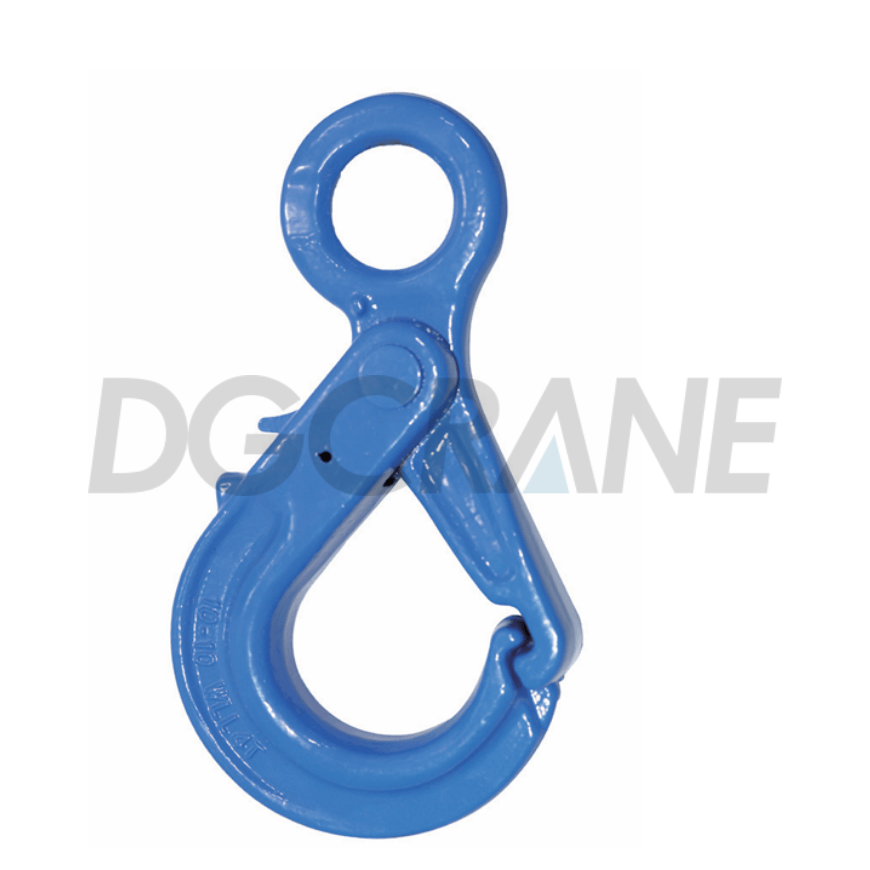

G100 Special Eye Selflock Hook
G100 Special Eye Selflock Hook

Swivel Hook

Swivel hooks offer enhanced maneuverability due to their rotating feature. This type of rigging hook can pivot up to 360 degrees, allowing for smoother and more precise load positioning. Swivel hooks are particularly beneficial in situations where loads need to be rotated or turned during lifting operations. They are commonly used in construction, shipbuilding, and offshore industries.

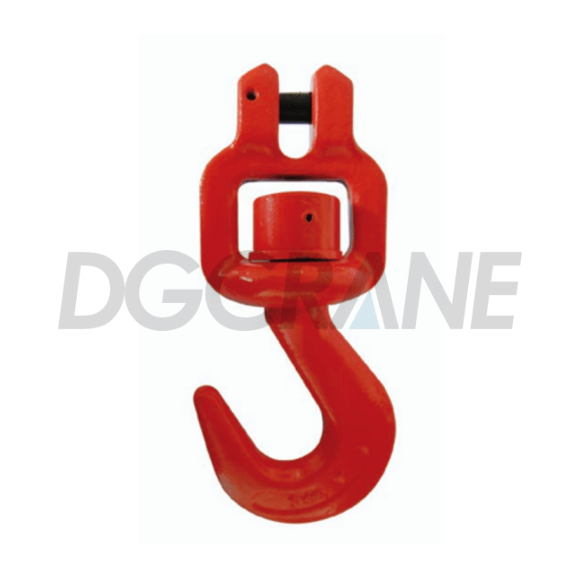

G80 Clevis Swivel Sling Hook
G80 Clevis Swivel Sling Hook

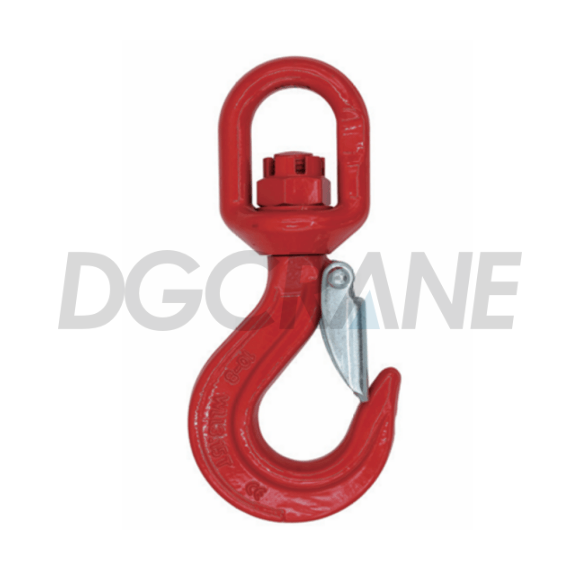

G80 Swivel Sling Hook with Cast Latch 1
G80 Swivel Sling Hook with Cast Latch

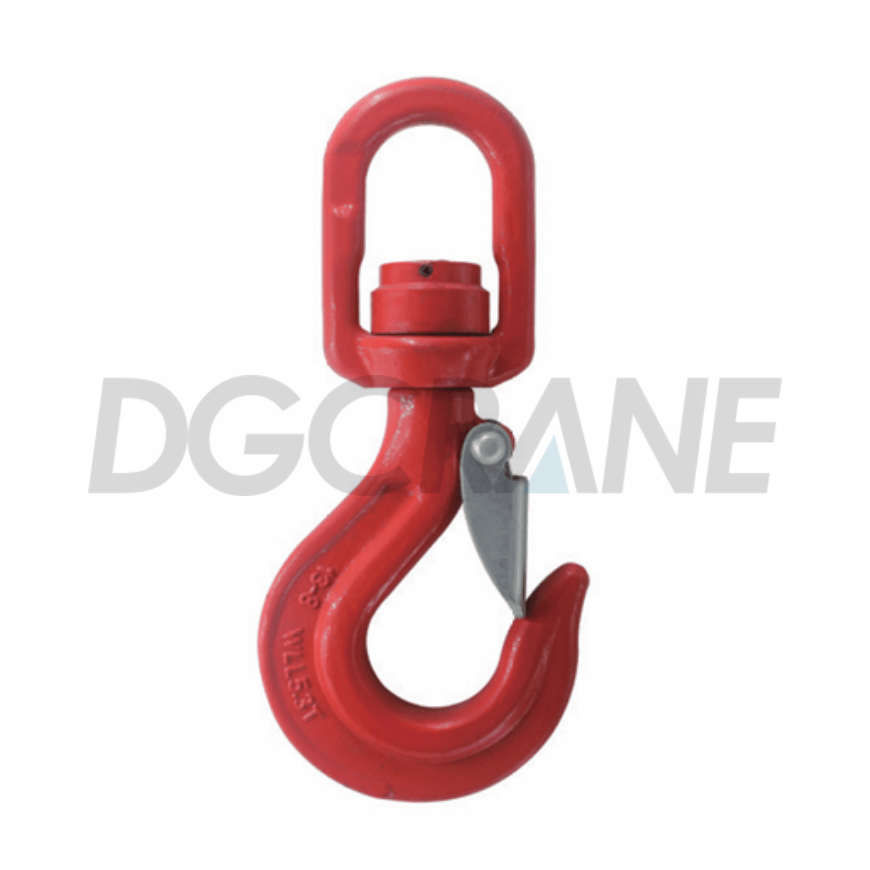

G80 Swivel Selflock Hook with Bearing
G80 Swivel Selflock Hook with Bearing

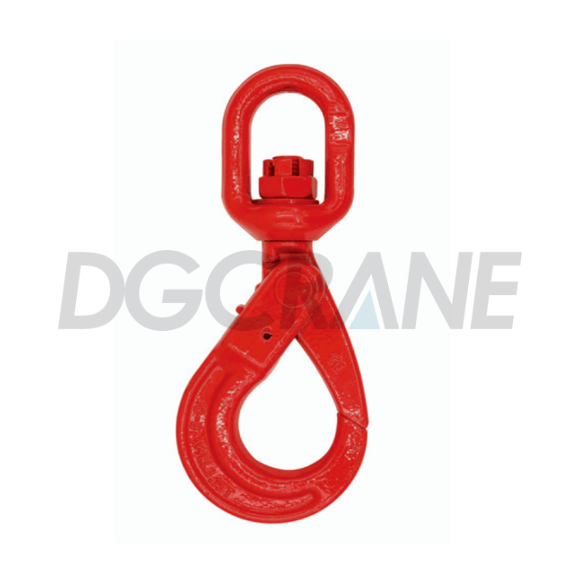

G80 Swivel Sling Selflock Hook 1
G80 Swivel Sling Selflock Hook

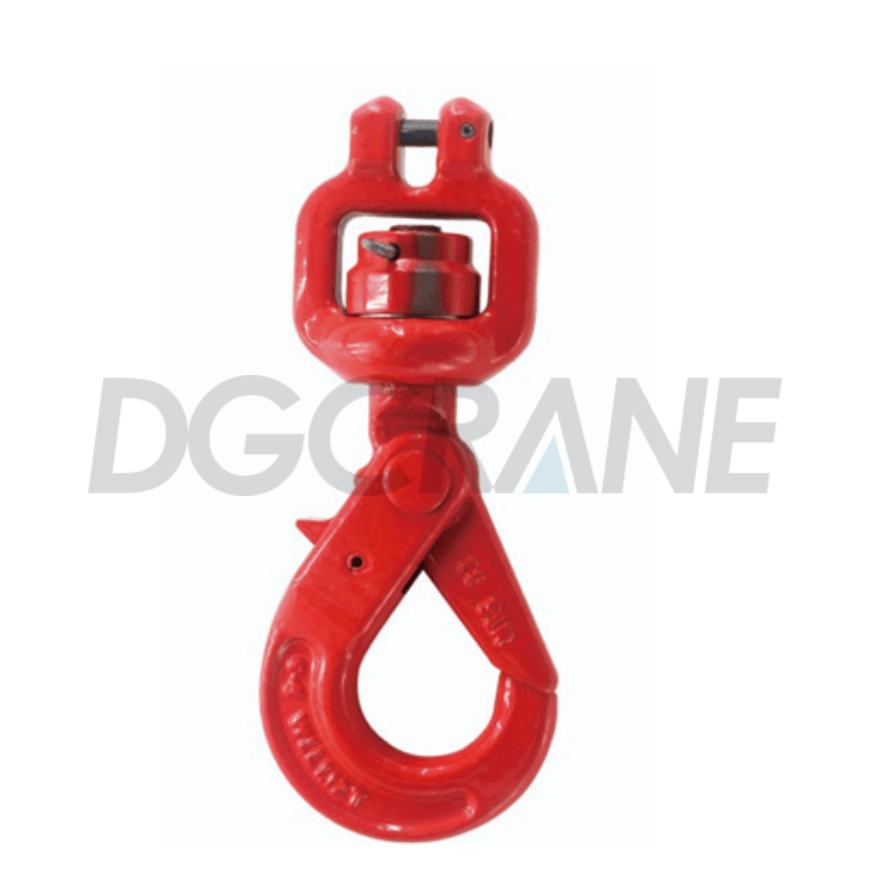

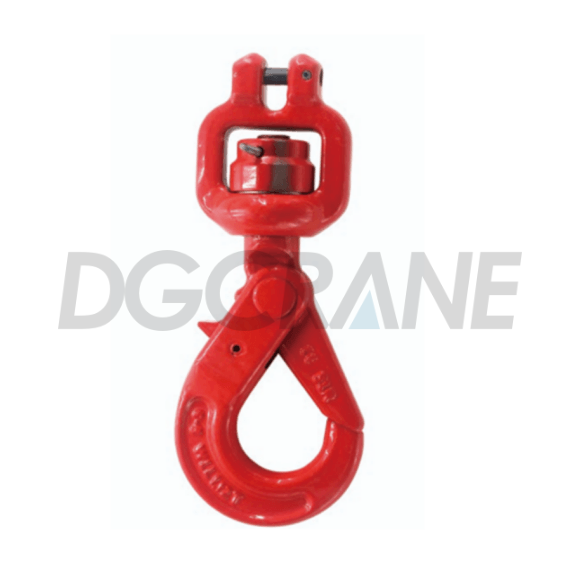

G80 Clevis Swivel Selflock Hook 1
G80 Clevis Swivel Selflock Hook

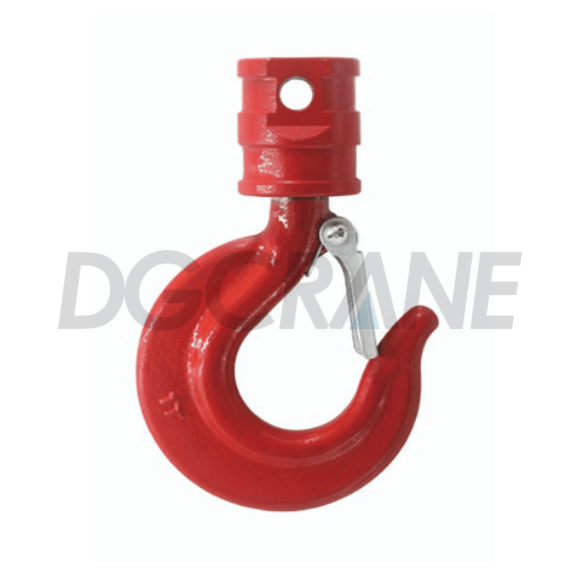

Rotaey Block Hook
Rotaey Block Hook

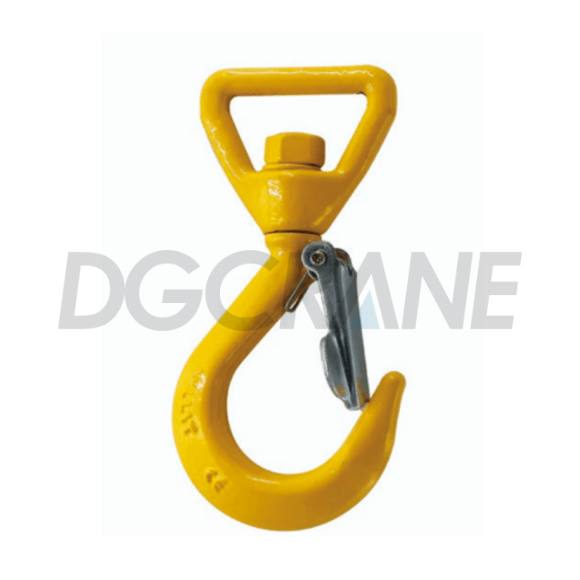

G80 Swivel Sling Hook
G80 Swivel Sling Hook

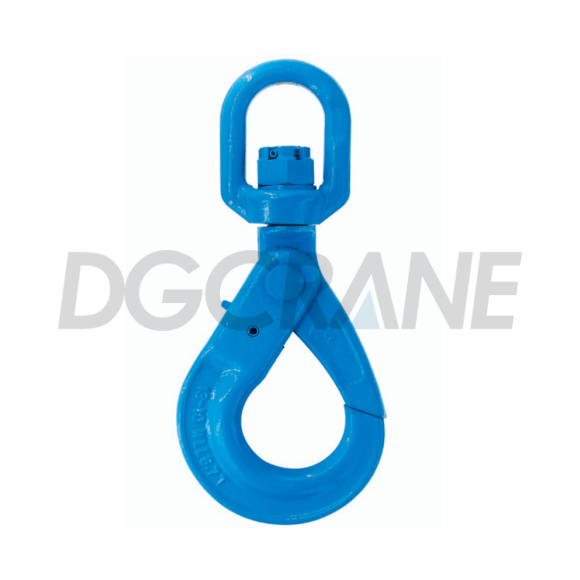

G80 Swivel Selflock Hook
G80 Swivel Selflock Hook

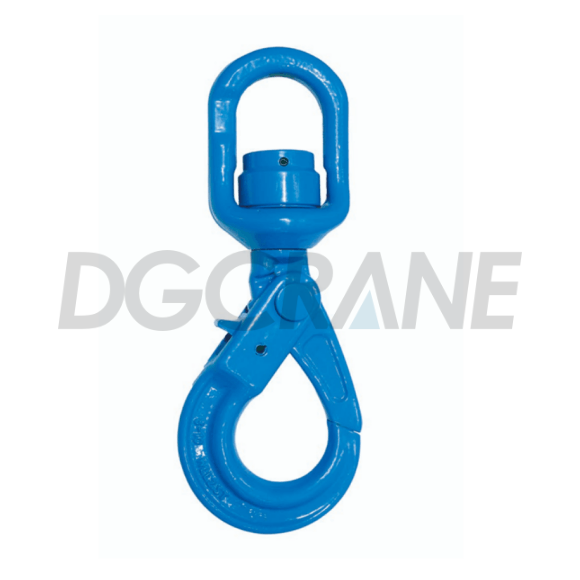

G80 Swivel Sling Selflock Hook with Bearing
G80 Swivel Sling Selflock Hook with Bearing

Webbing Hook

Our webbing hooks offer a robust, lightweight solution for connecting synthetic lifting slings—such as flat webbing and round slings—to your lifting gear. Made from high-strength alloy steel, ensuring maximum safety in construction, transport, and industrial applications.

G80 Webbing Sling Hook 1
G80 Webbing Sling Hook

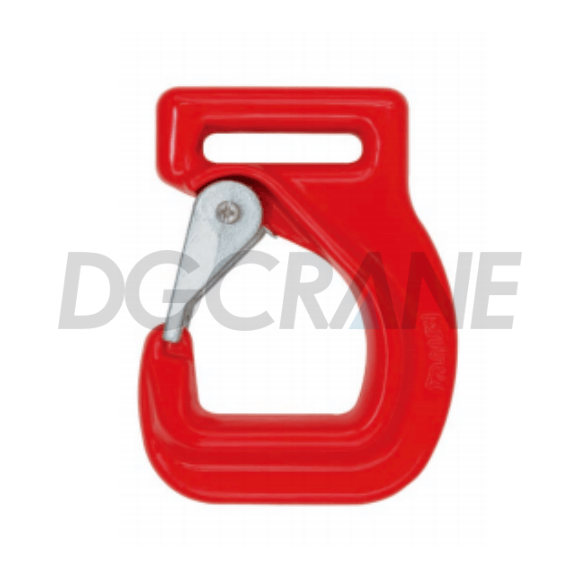

G80 Eye Webbing Sling Hook
G80 Eye Webbing Sling Hook

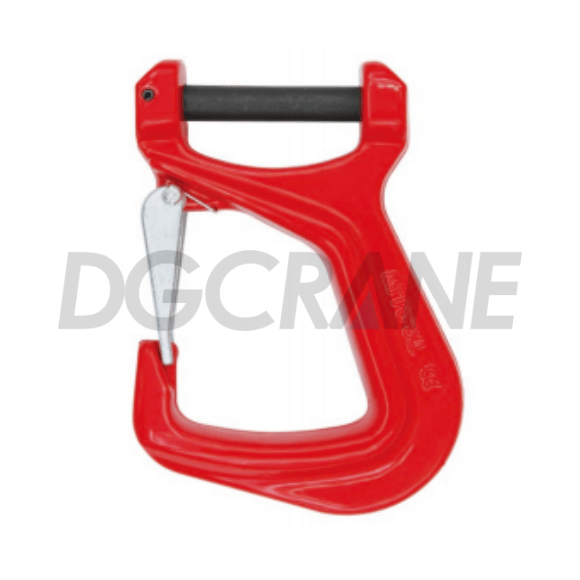

G80 Clevis Webbing Sling Hook
G80 Clevis Webbing Sling Hook

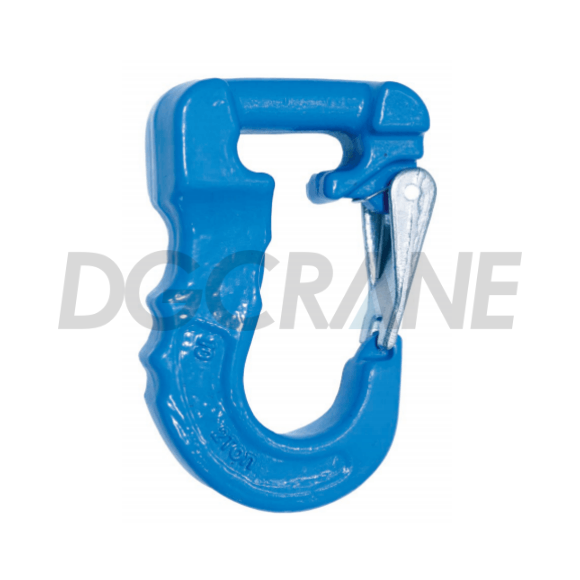

G100 Webbing Sling Hook
G100 Webbing Sling Hook

Safety Precautions for Using Rigging Hooks

  • When using a lifting hook, the top fitting of the sling should be placed in the load-bearing center of the hook. Do not hang it directly on the tip of the hook.
  • If the hook body is corroded or worn by 10% or more of its nominal dimension, it must be scrapped.
  • If cracks can be seen with the naked eye, or if cracks are found through inspection, the hook must be scrapped.
  • For hooks with safety latches, if the latch becomes loose or fails, the parts must be replaced promptly.
  • If the hook opening has deformed by more than 0.25% of the original opening, or if there is deformation in any other part, the hook must be scrapped.
  • For rotating hooks and other swiveling rigging components, lubrication grease should be applied before use.

Production and Inspection Equipment

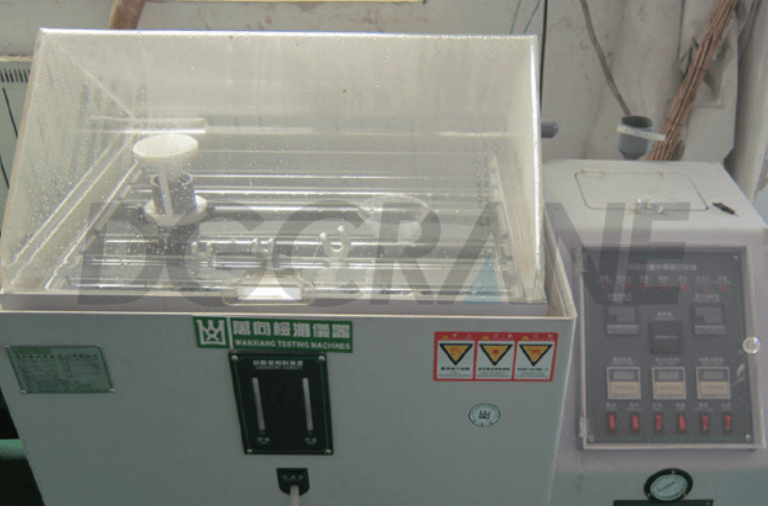

Salt Mist Test
Salt Mist Test

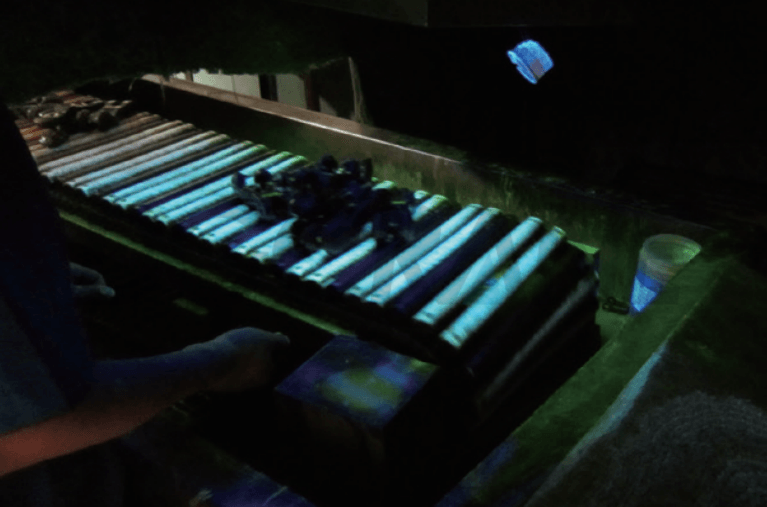

Magnaflux Crack Detection
Magnaflux Crack Detection

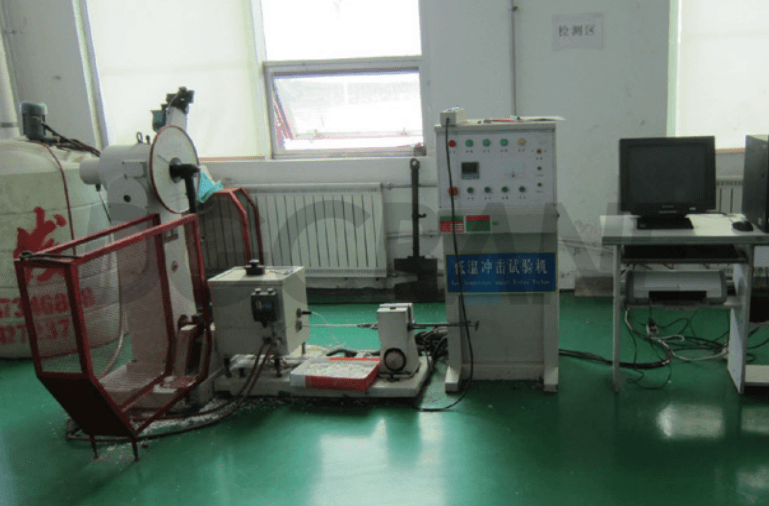

Low Temprature Impact
Low Temprature Impact

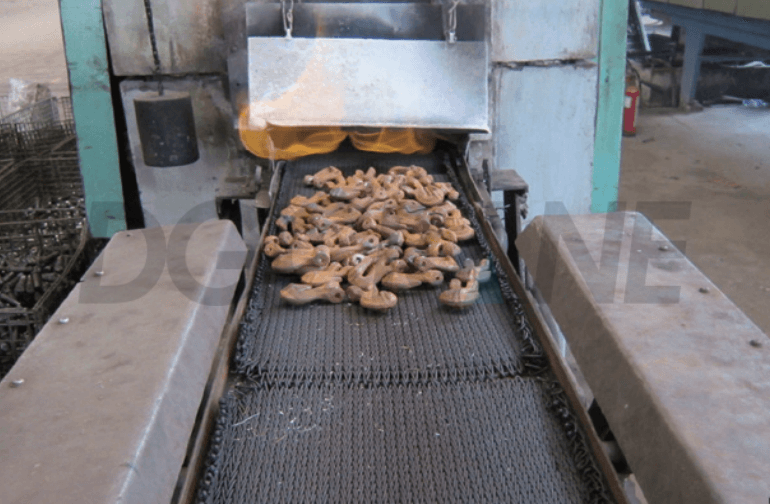

Heat Treatment
Heat Treatment

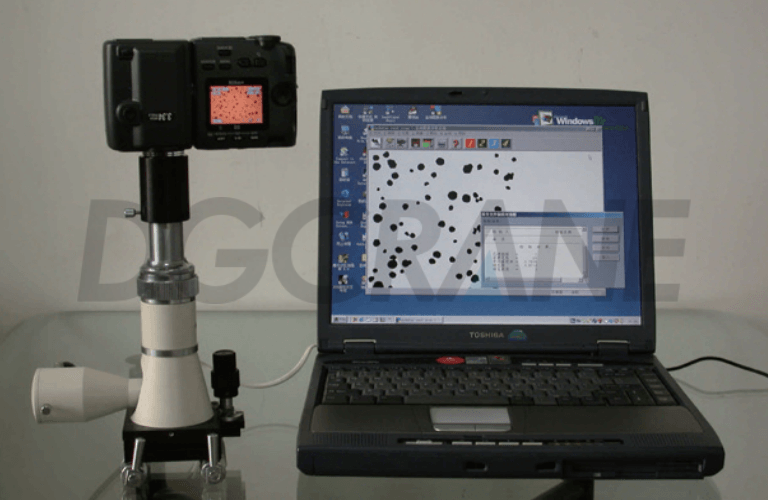

Micrographic Analysis
Micrographic Analysis

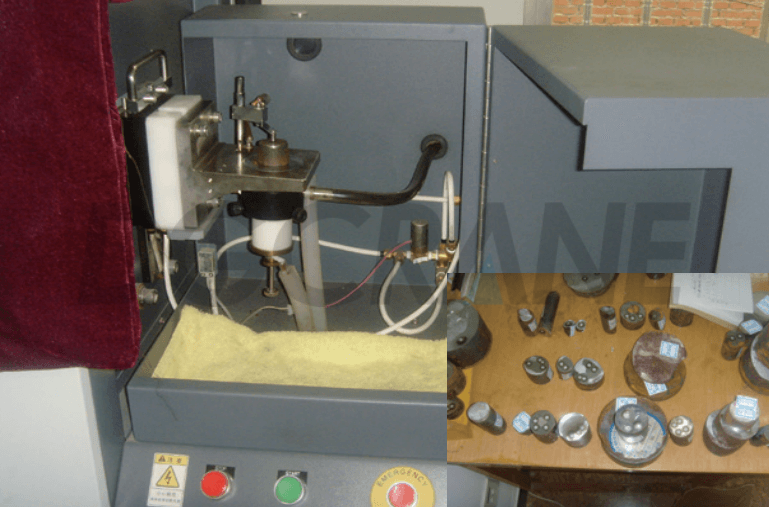

Spectrographic Analisis
Spectrographic Analisis
