3 Ton Jib Crane for Sale: Complete Guide to Types, Prices and Global Projects

If you’re looking for a 3 ton jib crane that combines lifting performance, durability, and flexible installation, DGCRANE offers a full range of solutions to suit different workspace layouts. Our 3 ton models are available in free standing jib cranes, wall mounted jib cranes, and wall travelling jib cranes, all engineered for efficient material handling in workshops, warehouses, and production areas.

As a global jib crane manufacturer and supplier, DGCRANE has delivered customized 3 ton jib crane systems to over 100 countries. Our team provides end-to-end support—from design and pricing to delivery and installation—ensuring every solution adds long-term value to your operation.

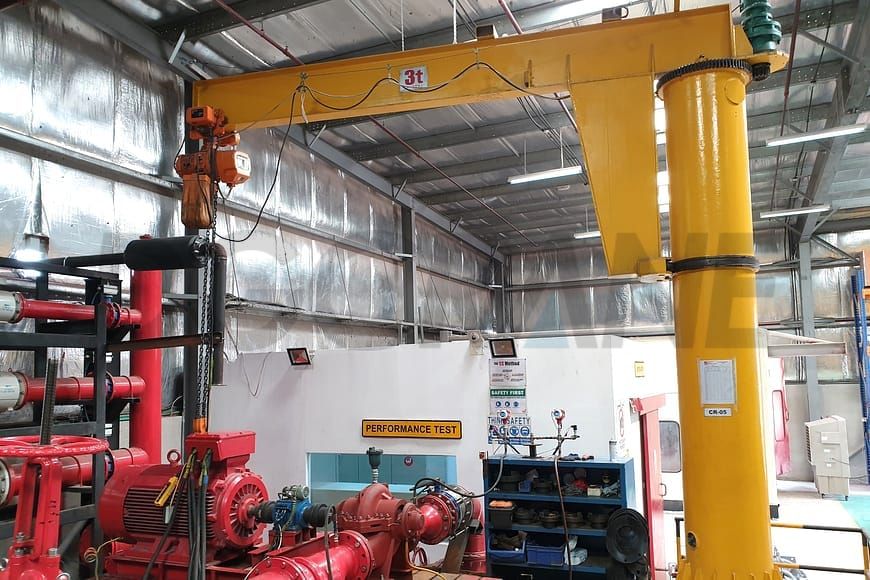

Compare 3 Ton Jib Crane Types

To help you select the most suitable 3 ton jib crane for your specific workspace and operational requirements, the table below compares the key specifications and structural differences among three main types: freestanding jib cranes, wall mounted jib cranes, and wall travelling jib cranes.

The table outlines core details such as maximum load, boom length and height, rotation angle, lifting mechanism, and control method, enabling a clear, side-by-side comparison to guide your decision-making.

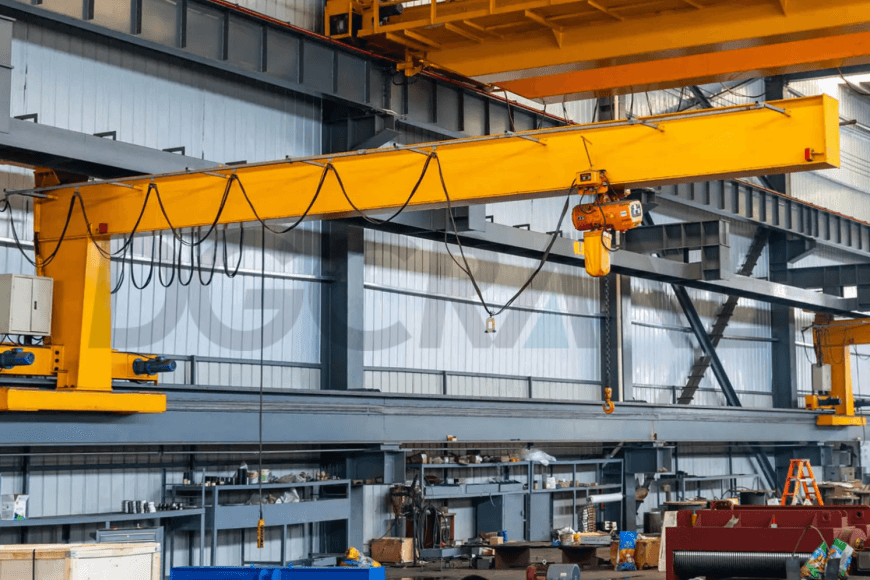

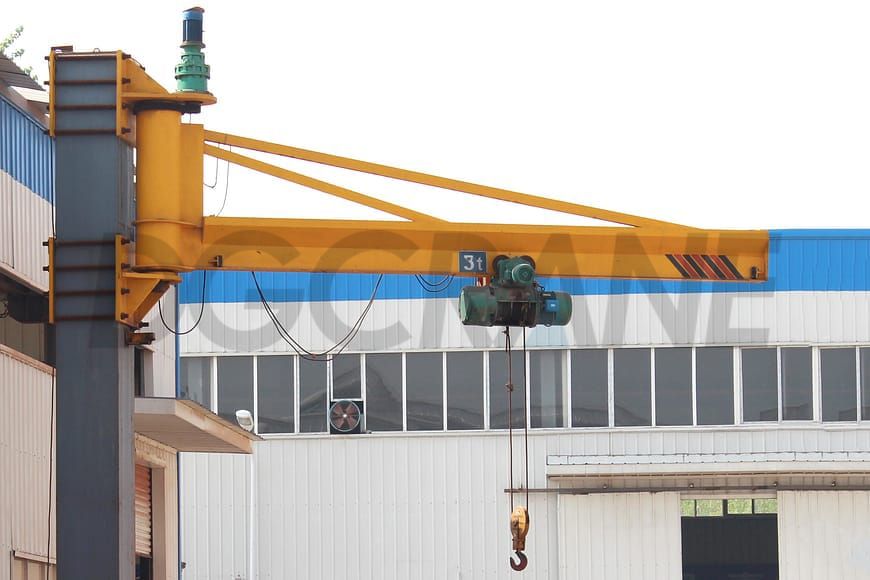

Type	Free Standing Jib Crane	Wall Mounted Jib Crane	Wall Travelling Jib Crane
Illustrative Image
Maximum Load Capacity	10t	5t	5t
Jib Arm Length & Height	10m (for loads under 1t)	10m (for loads under 1t)	10m (for loads under 1t)
Installation Method	Chemical anchor bolts or embedded bolts on concrete floor	Fixed to wall or building column (no floor space required)	Track installed on factory columns; enables longitudinal travel along the rail
Rotation Angle	n×360°, optional electric rotation	Maximum 180°	No rotation
Lifting Device	Electric chain hoist / Electric wire rope hoist	Electric chain hoist / Electric wire rope hoist	Electric chain hoist / Electric wire rope hoist
Control Mode	Pendant control / Remote control	Pendant control / Remote control	Pendant control / Remote control
Features	High load capacity, but requires strict installation conditions; occupies floor space	Space-saving with simple installation; no floor space required	Ideal for workshops or warehouses with large spans and high ceilings; frequent lifting near walls; serves a rectangular space efficiently, but requires higher rail installation cost

Each type offers distinct advantages depending on your installation conditions, space availability, and lifting needs. For example, freestanding models provide full rotational flexibility and higher load capacity but require more floor space and a stronger foundation. In contrast, wall mounted cranes save floor area with simpler installation, while wall travelling cranes maximize horizontal coverage along a fixed track—ideal for servicing long production lines or warehouse aisles.

Choosing the right jib crane is essential for safe and efficient lifting operations. In DGCRANE's in-depth guide, “Buy Jib Crane: What You Need to Know”, you’ll find expert advice on selecting the ideal crane based on type, load capacity, and installation conditions.

3 Ton Jib Crane Price – Competitive Cost with Proven Quality

When considering to buy a jib crane, both performance and price matter. At DGCRANE, our 3 ton jib crane cost is carefully calculated to offer excellent value without compromising on quality. As a trusted jib crane manufacturer, we focus on using reliable components, precision engineering, and strict quality control to ensure long-lasting, efficient operation.

Whether you’re purchasing a freestanding, wall mounted, or wall travelling jib crane, DGCRANE provides transparent pricing, flexible configurations, and expert support. With a strong global track record and cost-effective solutions, we are a reliable choice for companies looking to invest in high-performance jib cranes.

Note: 3 ton Jib crane prices may vary based on market fluctuations, please contact our sales staff for the latest prices.

For a more tailored quote, feel free to contact us directly with your lifting requirements—such as load capacity, lifting height, and site conditions—and our team will provide a customized jib crane solution that fits your needs and budget.

Zora Zhao

Expert in Overhead Crane/Gantry Crane/Jib Crane/Crane Parts Solutions

With 10+ years of experience in the Crane Overseas Export Industry, helped 10,000+ customers with their pre-sales questions and concerns, if you have any related needs, please feel free to contact me!

WhatsApp: +86 158 3611 5029

Email: zorazhao@dgcrane.com

3 Ton Jib Crane Cases – Trusted Worldwide by 120+ Countries

With over 10 years of export experience, DGCRANE has successfully delivered 3 ton jib cranes to clients in more than 120 countries across Asia, Europe, the Middle East, Africa, and the Americas. Our global project cases cover a wide range of industries demonstrating our capability to adapt to diverse site conditions and customer needs.

Known for fast delivery, responsive service, and reliable after-sales support, DGCRANE has built long-term partnerships with international clients who value both product quality and professional cooperation. Whether you’re expanding a facility or upgrading existing equipment, our proven export track record ensures you're working with a trusted jib crane supplier.

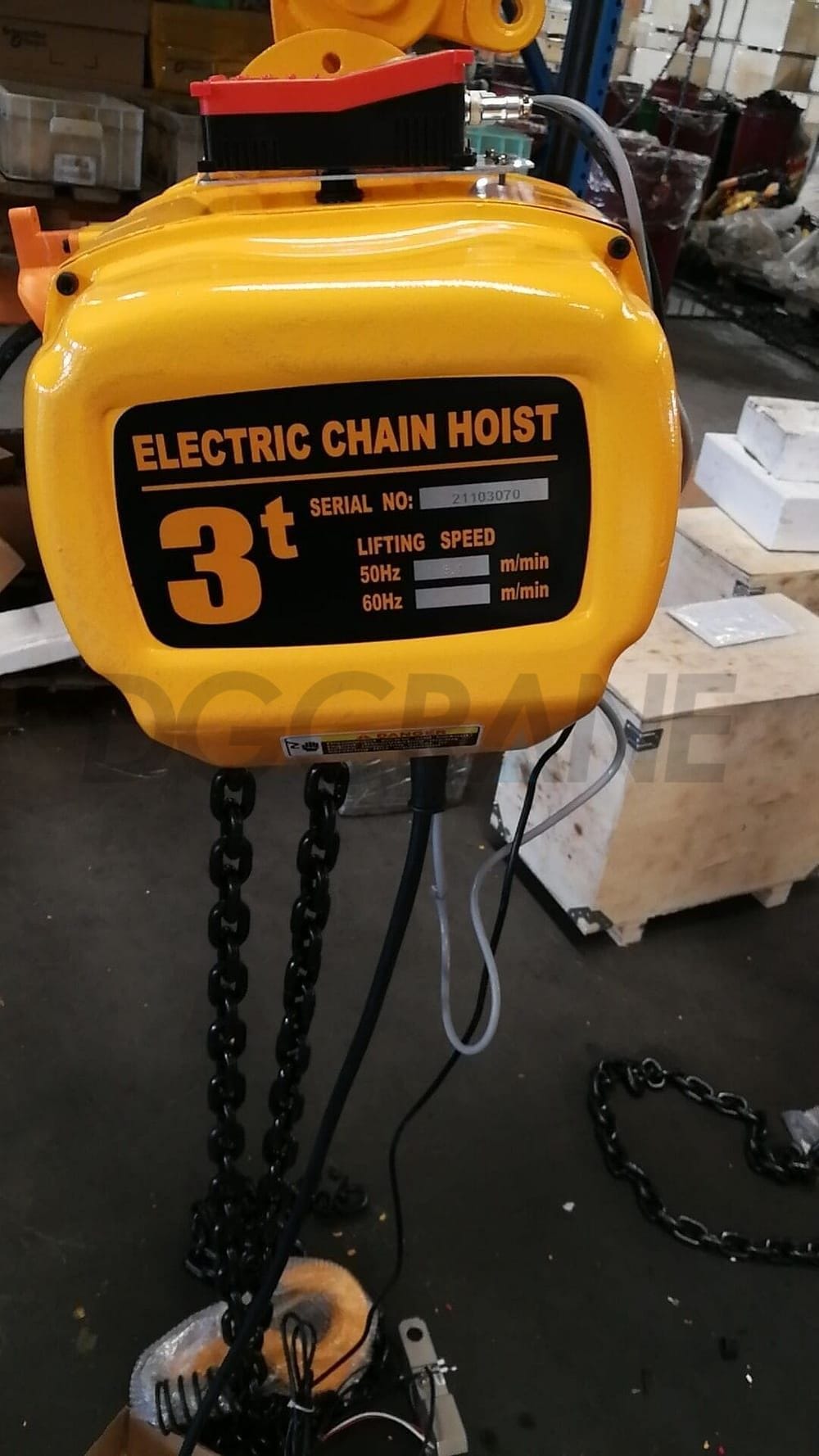

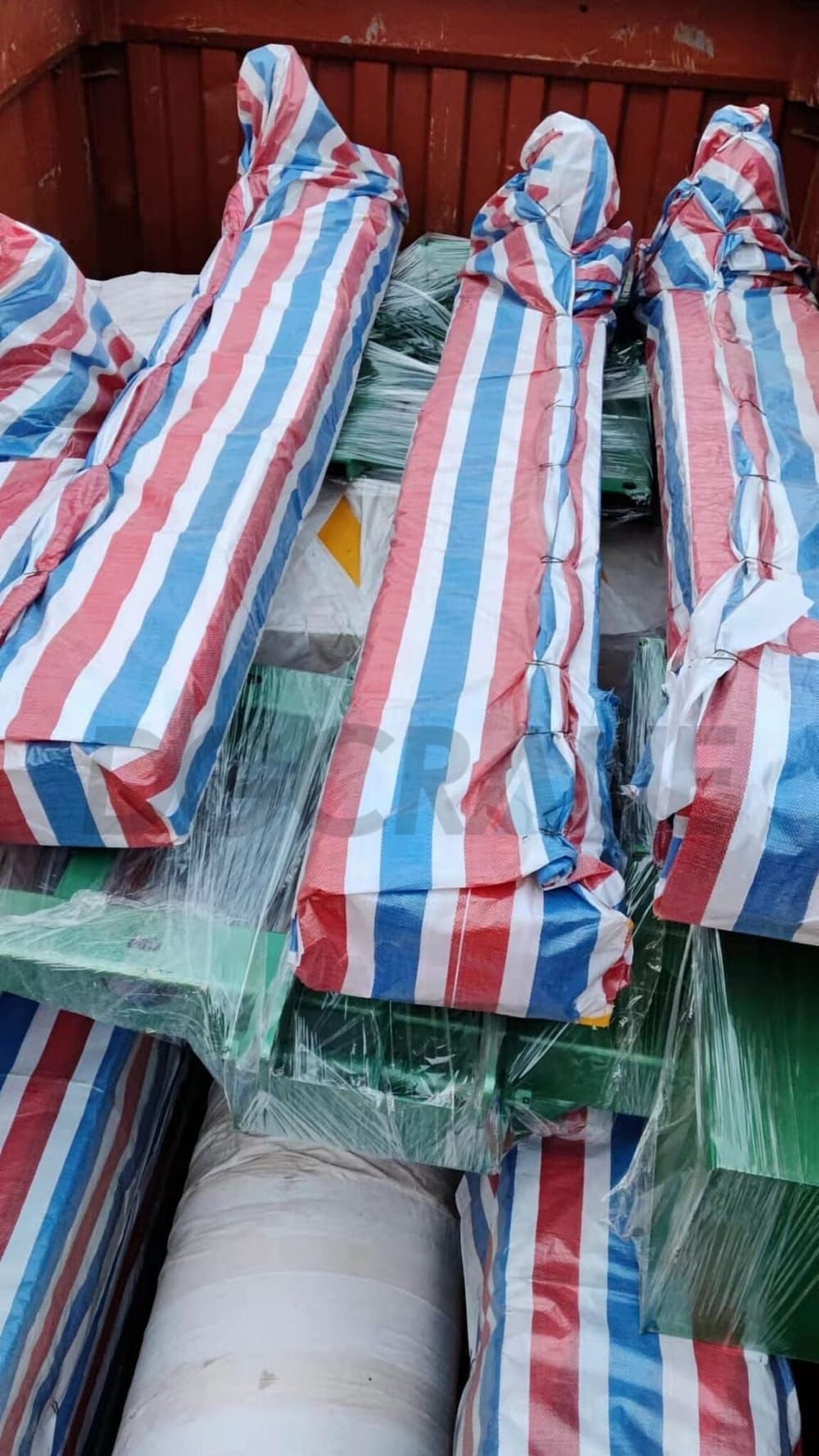

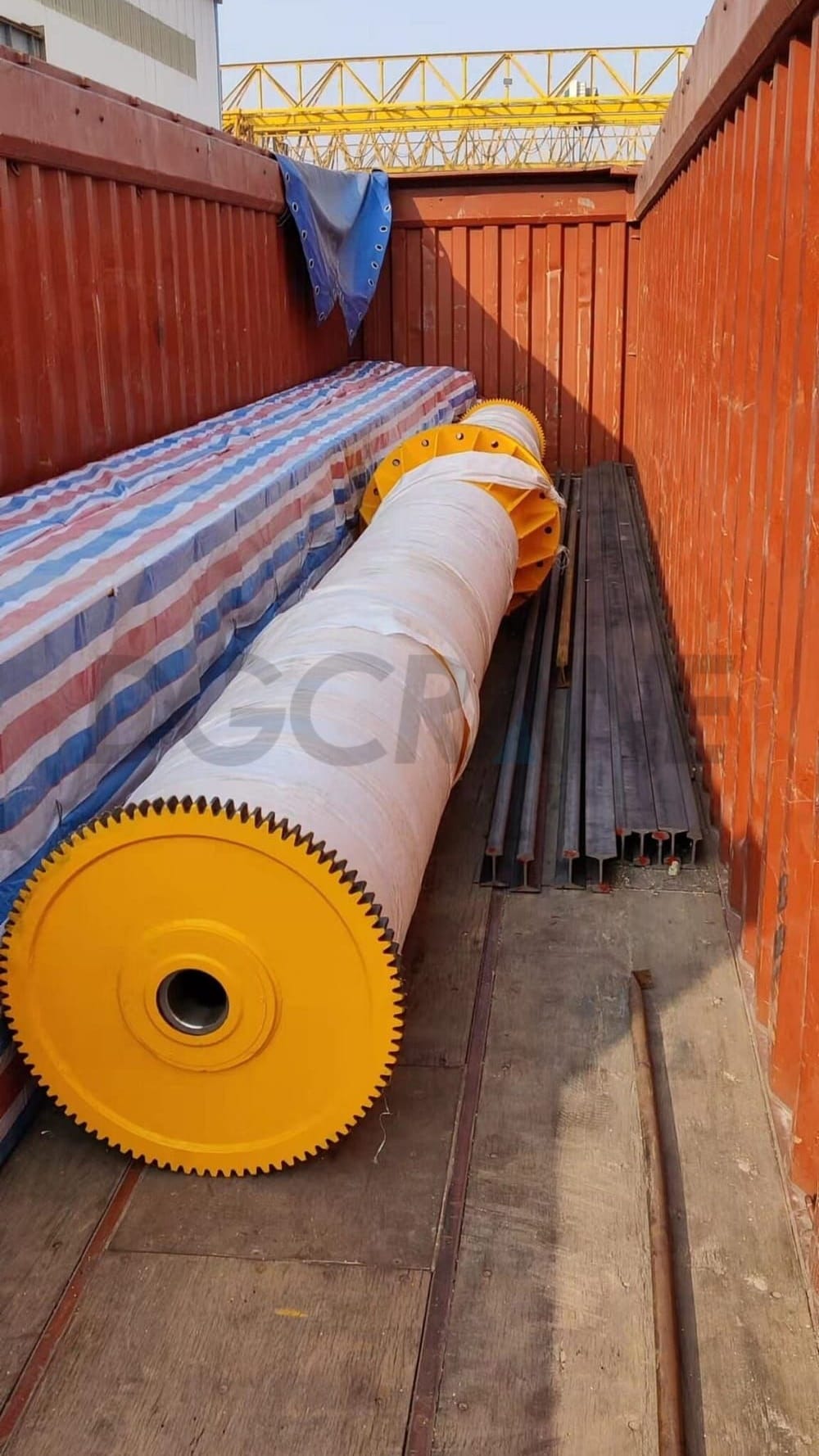

2 Sets of BZD 3 Ton Jib Cranes Exported to Nigeria

In May, we successfully delivered two sets of BZD 3 ton jib cranes to a customer in Nigeria, supporting their workshop lifting operations with efficient and reliable equipment.

Project Details:

• Model: BZD 3 Ton Jib Crane
• Capacity: 3 Ton
• Arm Length: 4.7m
• Lifting Height: 3.5m
• Power Supply: 400V / 50Hz / 3Ph
• Control Mode: Pendant Panel
• Duty Class: A3

Customer Requirements & Solution:

On May 1st, Mr. Ifeanyi contacted us with a request for a 3-ton jib crane suitable for his workshop. He required a solution with strong performance, safety, and easy operation.

Our technical team proposed a BZD-type jib crane customized to his site layout. After confirming the technical details and layout drawings, we quickly reached an agreement. The customer appreciated our prompt response and professional support.

Production & Delivery:

Once the contract was signed and payment received, production began promptly. The cranes were shipped with installation guides and manuals to ensure smooth setup on-site.

Customer Feedback:

Mr. Ifeanyi is highly satisfied with the quality and operation of the cranes, noting their stable performance and practical design.

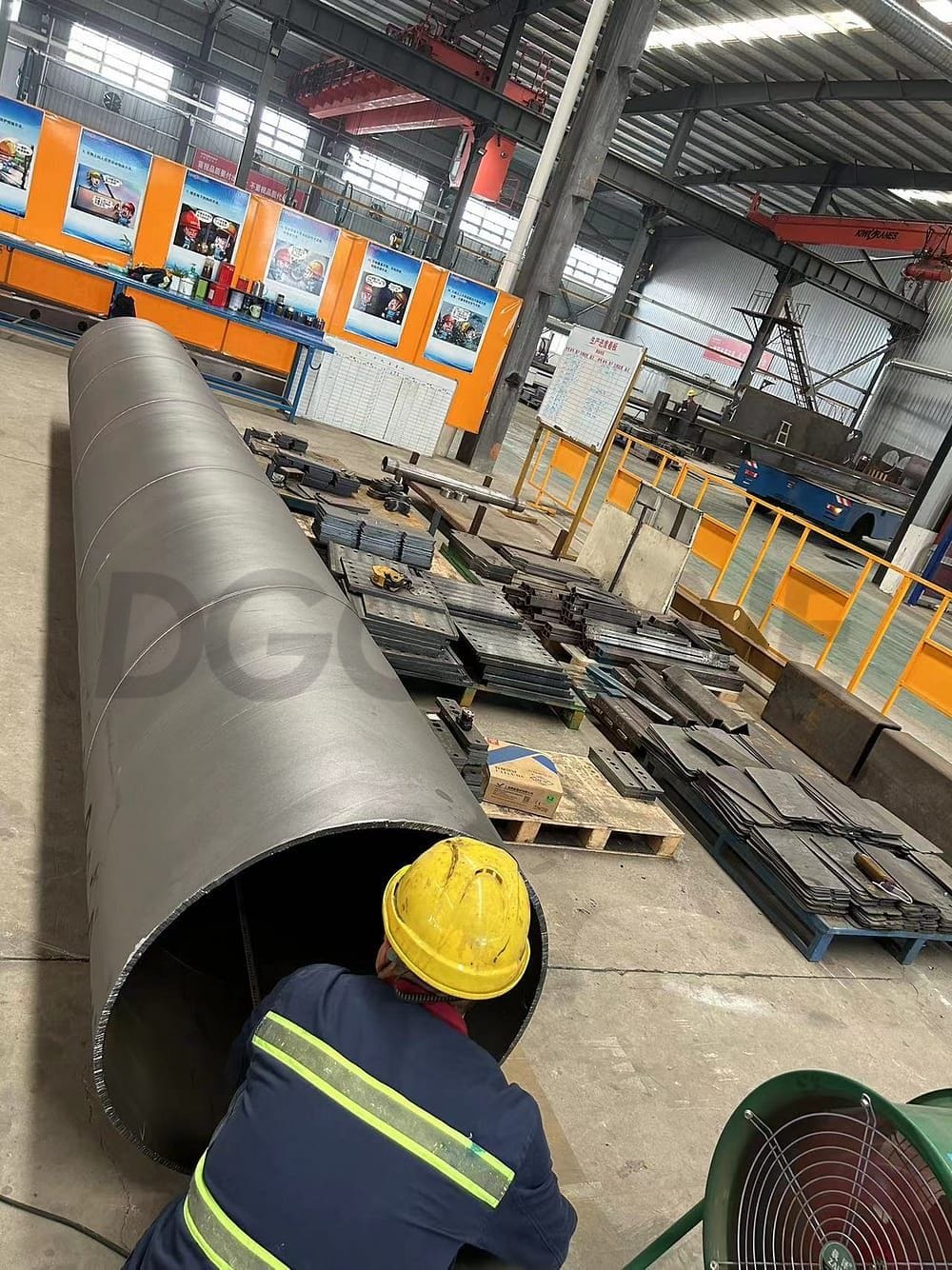

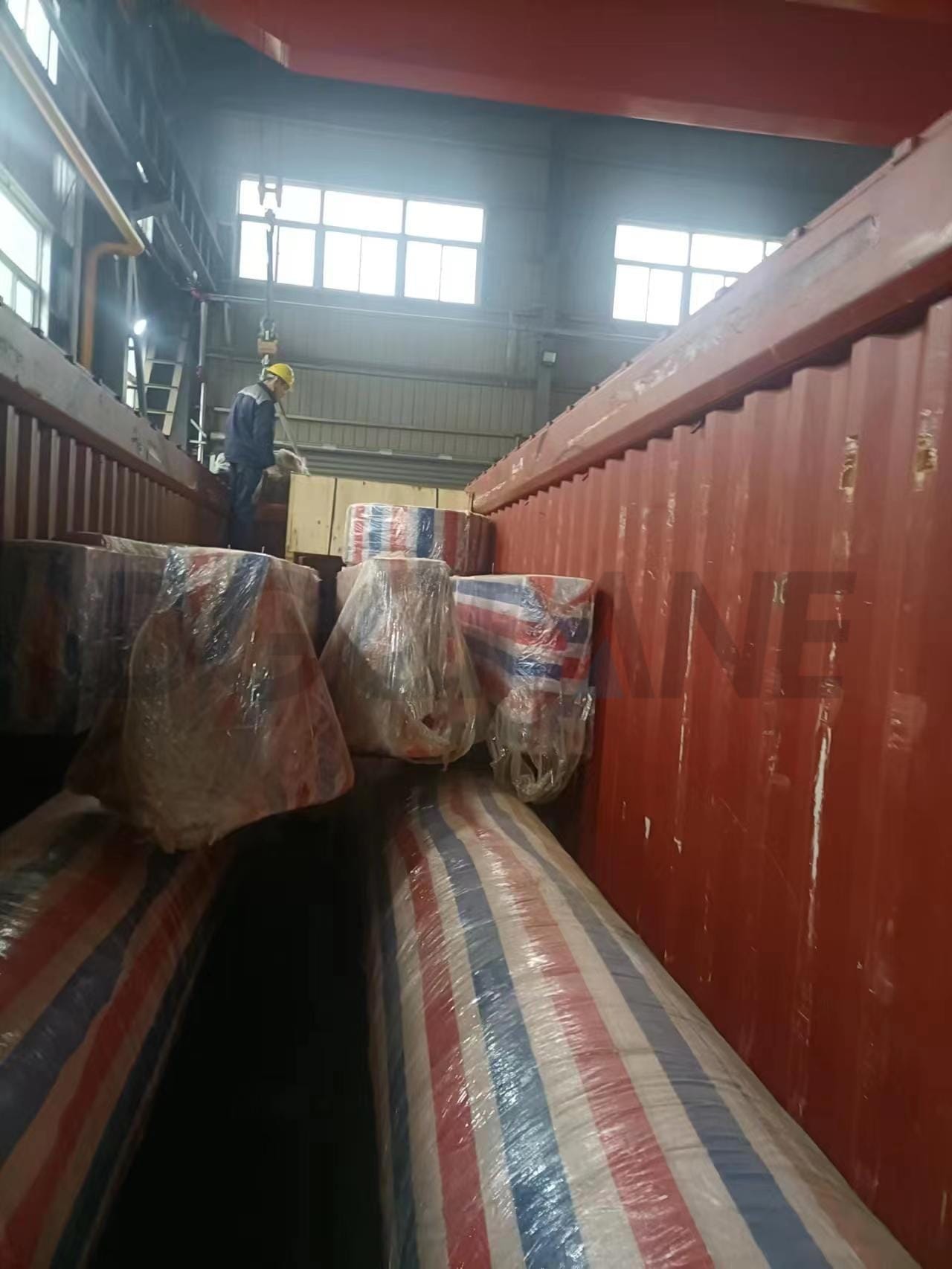

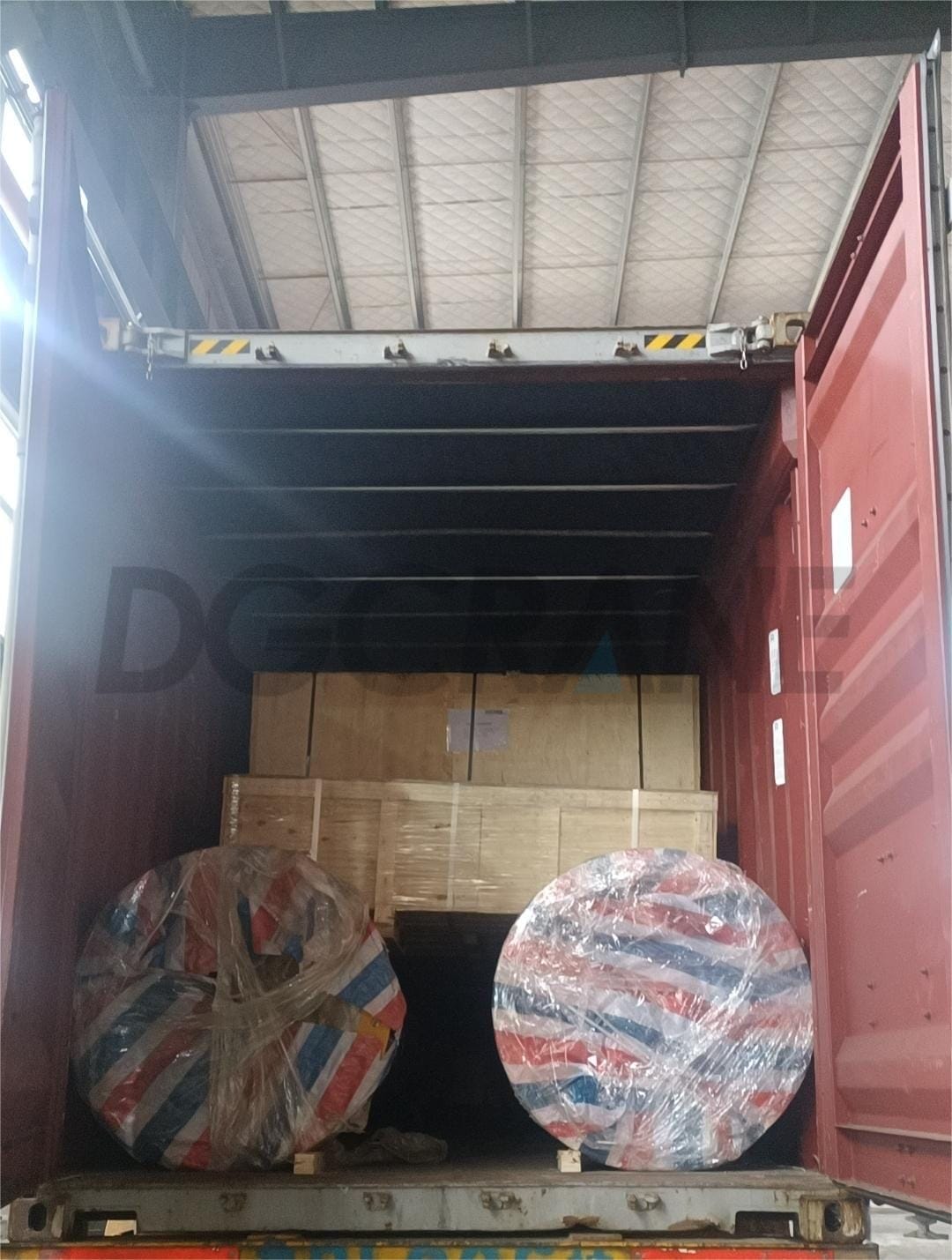

4 Sets of 3-Ton Free Standing Jib Cranes Supplied to Mexico

We recently completed the delivery of four 3-ton free-standing jib cranes to a long-term industrial client in Mexico, supporting their expanding production facility with high-efficiency lifting equipment.All cranes were packed securely and loaded into a 40-foot open-top container for safe international transport.

Technical Specifications:

• Capacity: 3 Ton
• Total Arm Length: 6.5m (Effective: 6m)
• Lifting Height: 5.5m
• Power Supply: 440V / 60Hz / 3 Phase (24V Control Voltage)
• Hoist Type: Steel Wire Rope Electric Hoist (Dual Speed: 5 / 0.8 m/min)
• Slewing Range: 360°
• Slewing Speed: 0–0.6 r/min (VFD Controlled)
• Hoist Travel Speed: 5–20 m/min
• Control Method: Pendant with Push Button
• Work Duty: A5
• Working Temperature: -20°C to +40°C

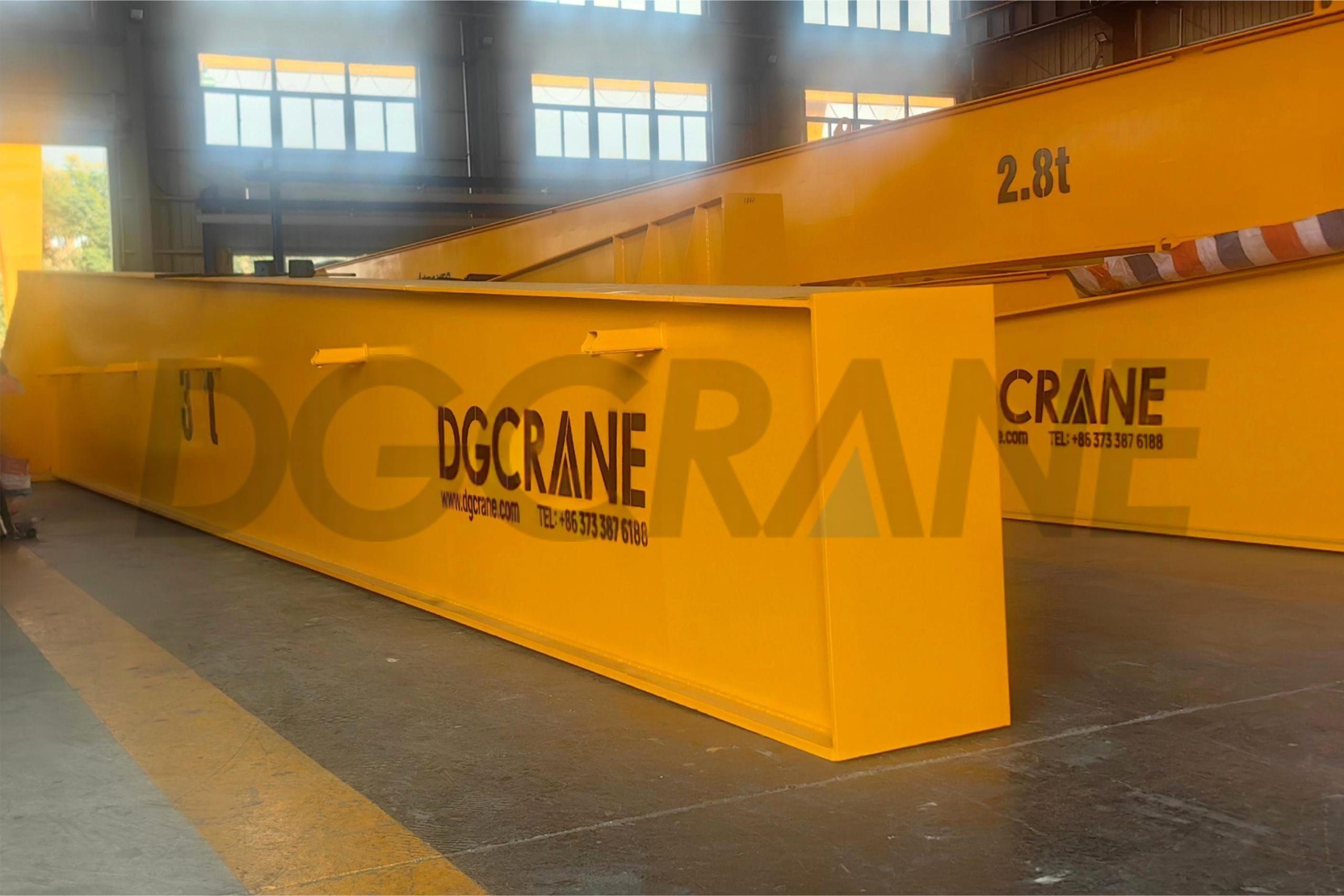

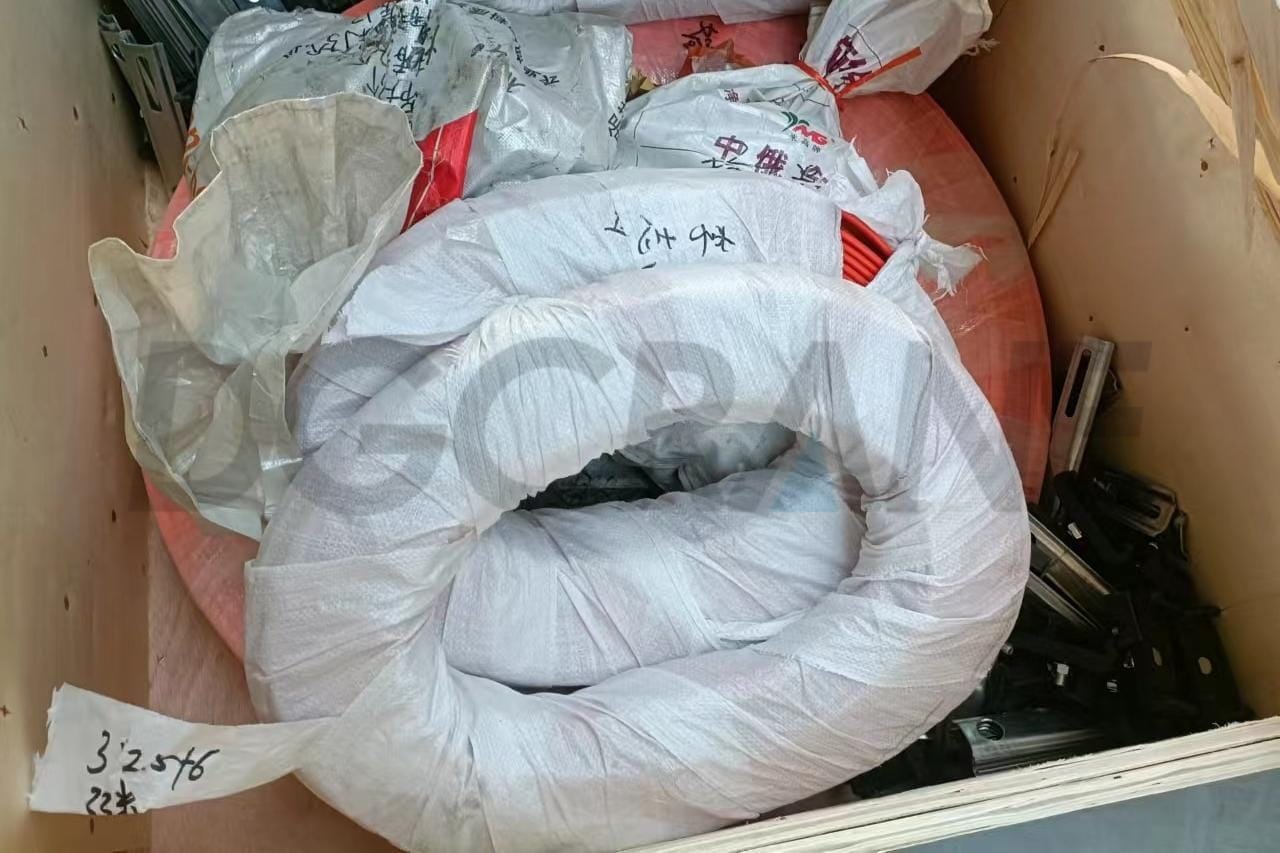

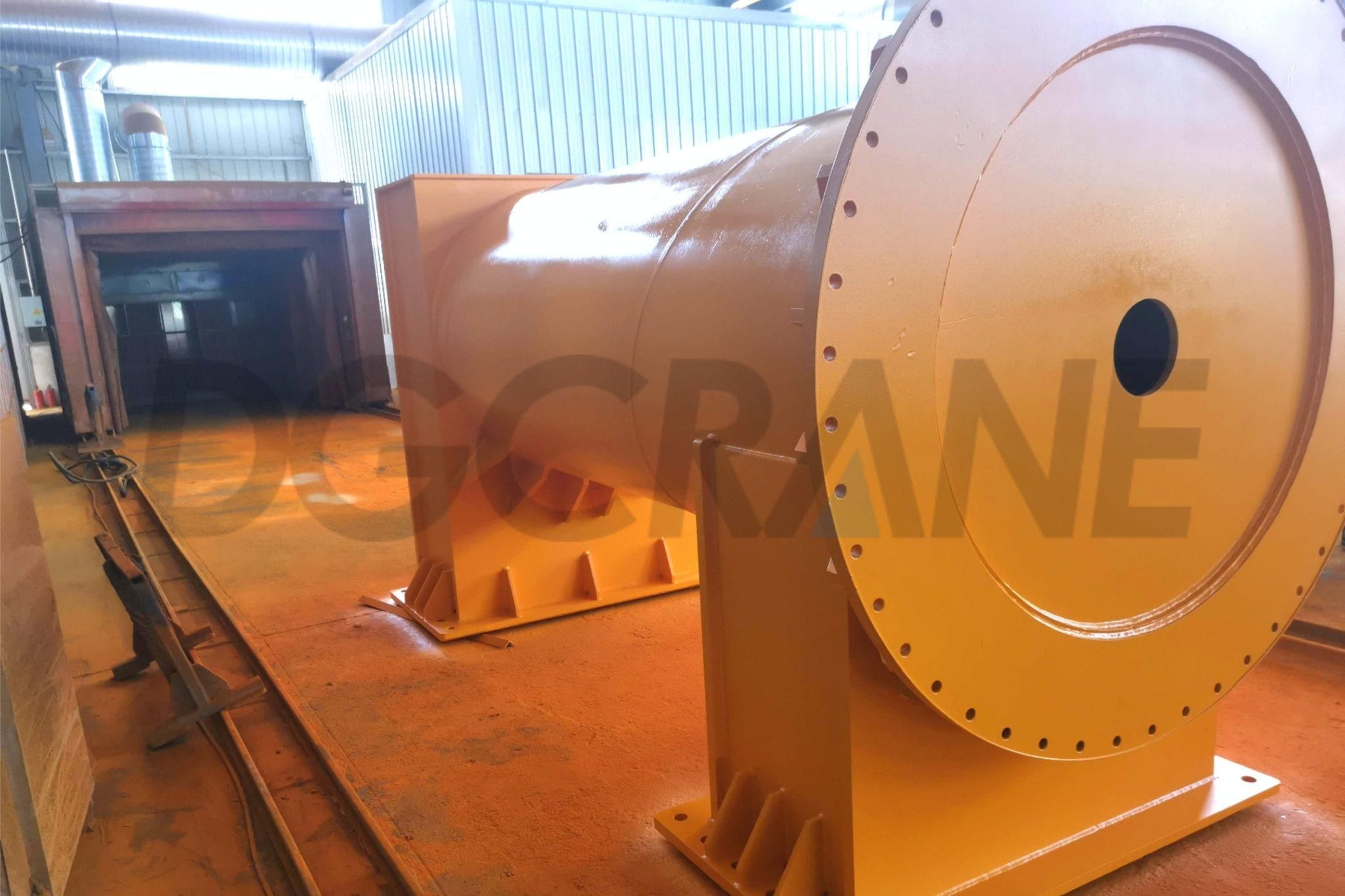

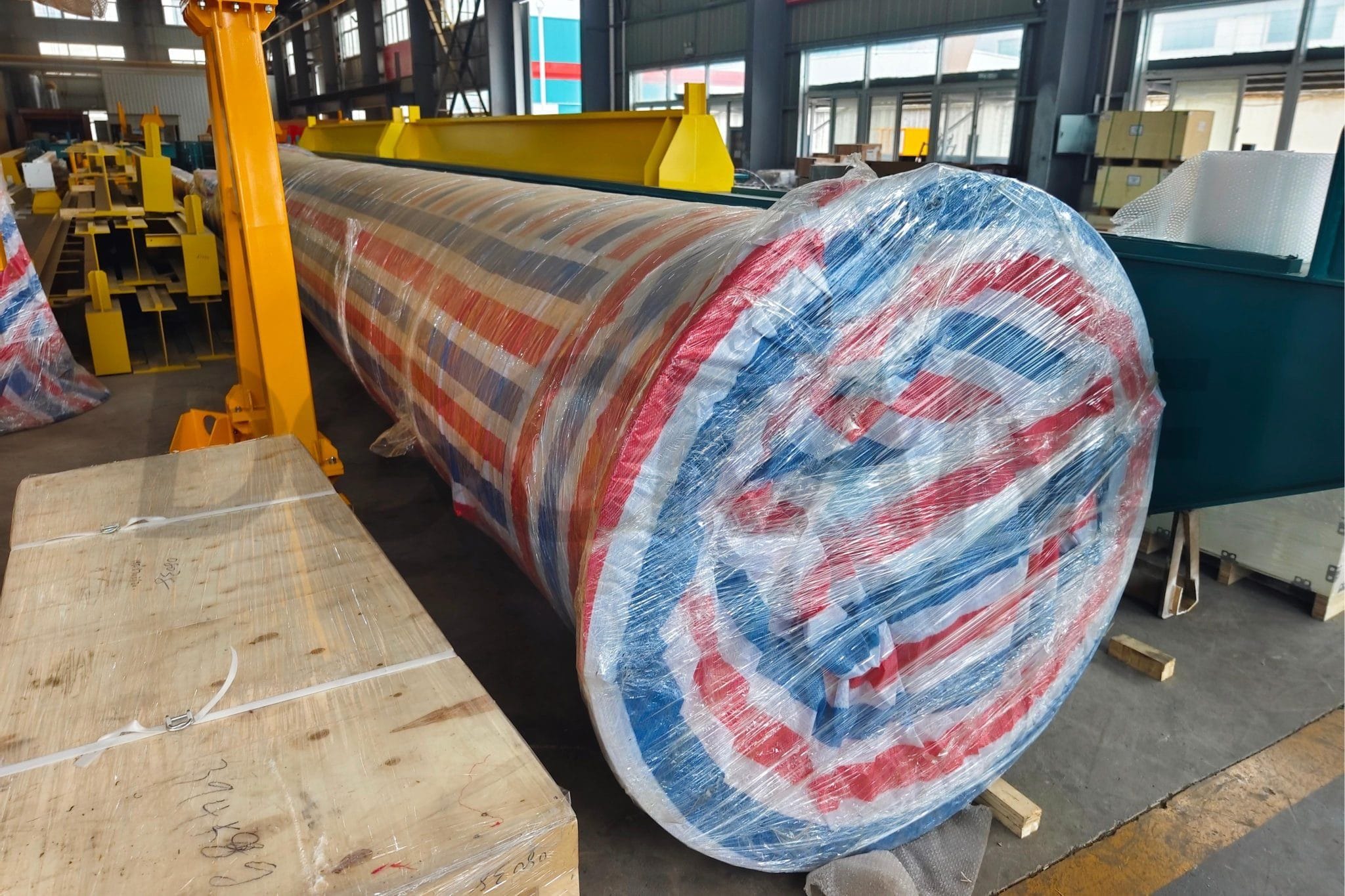

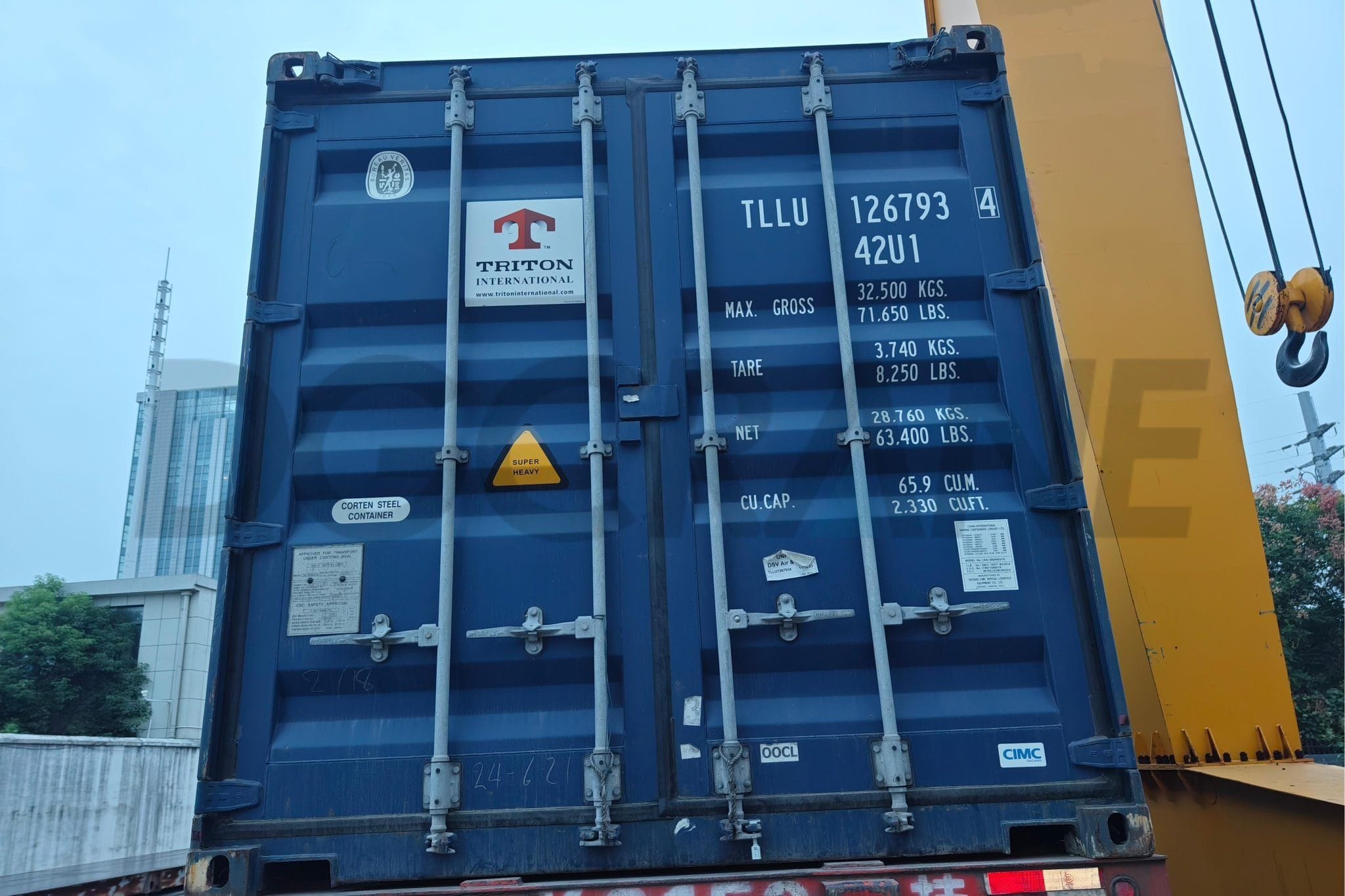

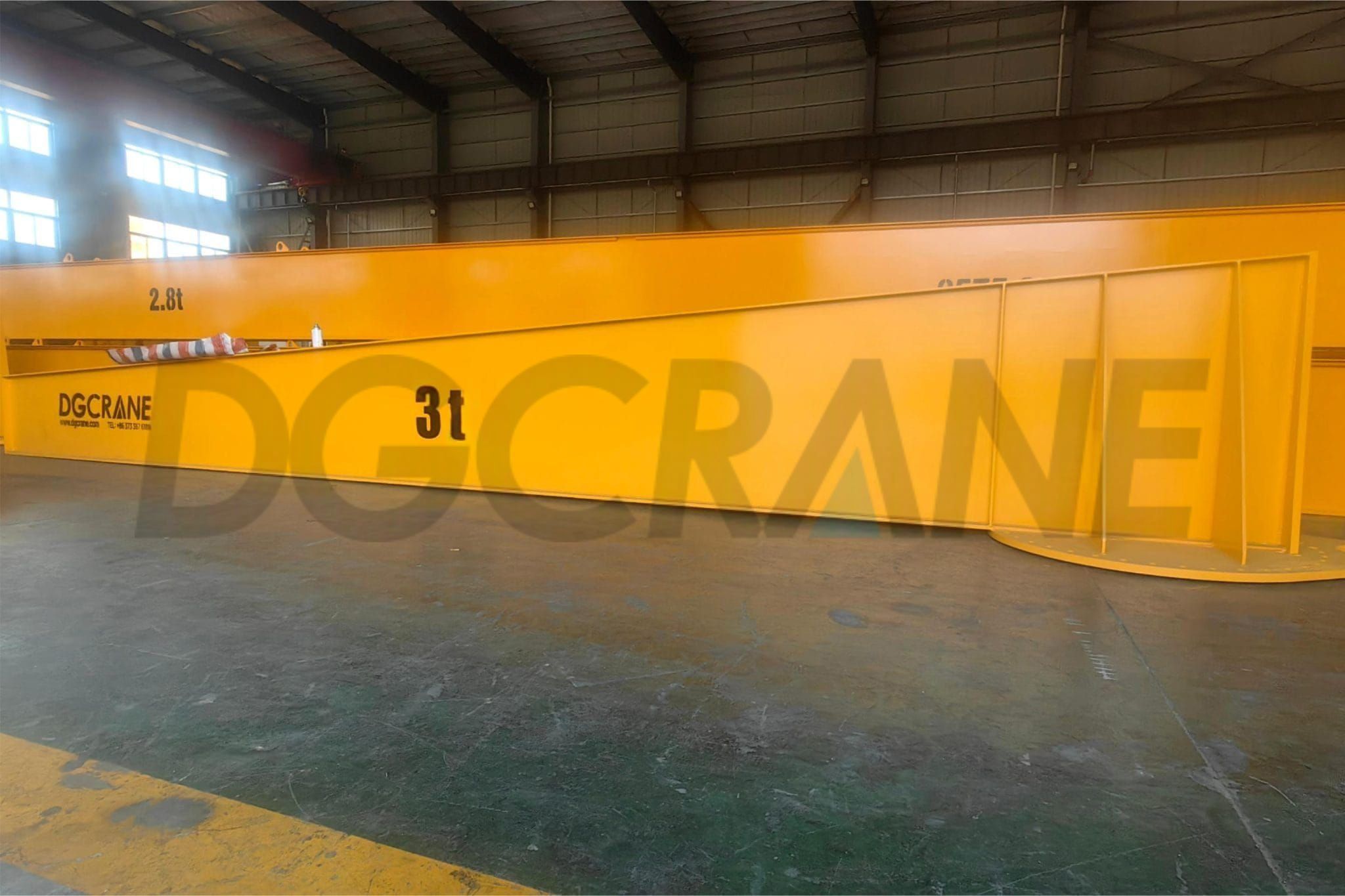

4 Sets of 3T Free-Standing & 1 Set of 10T Wall-Mounted Jib Crane Delivered to Mexico

In a recent shipment to Mexico, we successfully delivered a comprehensive lifting solution that included four 3-ton free-standing jib cranes and one 10-ton wall-mounted jib crane. The project was customized for a returning client — a leading local manufacturer — with whom we've established a long-term partnership.

Technical Specifications:

3T Free Standing Jib Crane (x4 units)

• Lifting Capacity: 3,000 kg
• Arm Length: 11m (effective)
• Lifting Height: 7m
• Rotation: 360°
• Control: Pendant + Wireless Remote
• Duty Class: A5
• Hoisting Speed: 5 / 0.8 m/min
• Slewing & Travel: Inverter-controlled
• Power Supply: 440V / 60Hz / 3Ph

10T Wall Mounted Jib Crane (x1 unit)

• Lifting Capacity: 10,000 kg
• Arm Length: 11m (effective 10m)
• Lifting Height: 22m
• Rotation: 180°
• Control: Pendant + Wireless Remote
• Duty Class: M5
• Hoisting Speed: 10 / 2.5 m/min
• Power Supply: 440V / 60Hz / 3Ph

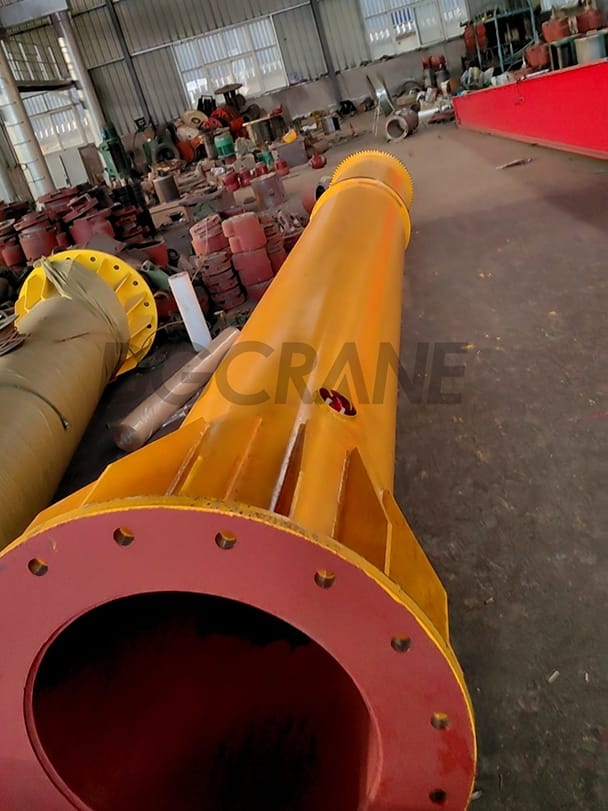

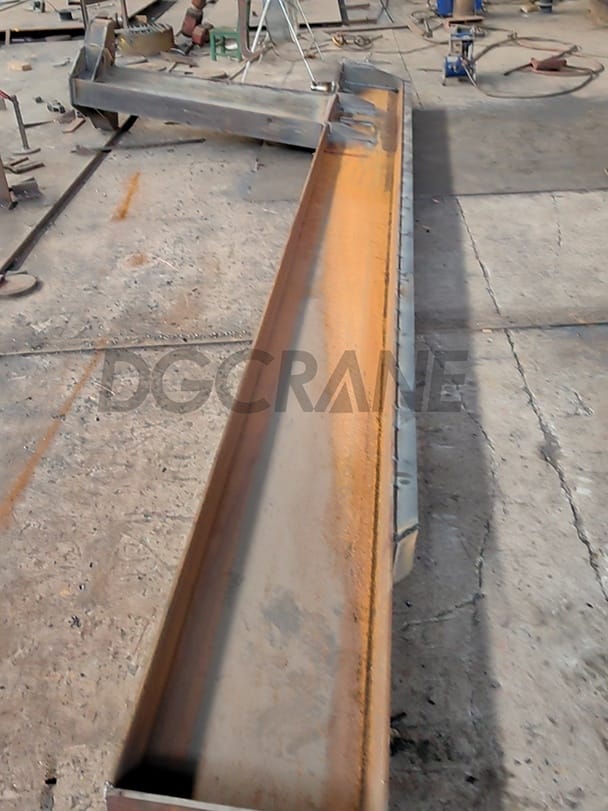

Customized 3 Ton Pillar-Mounted Jib Crane Delivered to the Philippines

We recently delivered a custom-engineered 3-ton pillar-mounted jib crane to a client in the Philippines, designed specifically for their workshop’s structural layout and environmental conditions.

Key Specifications:

• Lifting Capacity: 3 Ton
• Arm Length: 5m (Working radius: 1.4m–4.7m)
• Lifting Height: 5m
• Crane Height: 6.5m
• Rotation: 360°
• Hoisting Speed: 4.5 / 1.5 m/min (dual speed)
• Hoist Travel Speed: 11 m/min
• Slewing Speed: 0.5 r/min
• Lifting Mechanism: Electric Chain Hoist
• Control Method: Pendant + Wireless Remote
• Power Supply: 220V / 60Hz / 3 Phase
• Temperature Range: -40°C to +20°C (Not recommended for use below -20°C)

3 Ton Jib Crane Safety Tips – Stay Safe During Operation

To ensure safe and efficient use of your 3 ton jib crane, operators must follow essential safety practices during lifting operations. Proper training, environmental awareness, and strict adherence to operational protocols are key to preventing accidents and equipment damage.

Key safety precautions include:

• Stay focused at all times – Operators must remain attentive and avoid distractions during crane operation.
• Ensure crane stability – Always monitor the jib crane's balance to prevent tipping or instability.
• Watch load position and movement – Keep a close eye on the load's alignment to avoid collisions or dropping.
• Follow approved operation methods – Do not adjust boom angle or lifting speed arbitrarily; follow the specified procedures.
• Be aware of your surroundings – If pedestrians or vehicles are nearby, implement proper safety barriers or warnings.
• Power down after use – Always switch off the crane and secure it after operation to prevent unintended movement or accidents.

By following these guidelines, operators can maintain a safe working environment and extend the service life of the crane.

Jib Crane Safe Operation Guidelines

To ensure the safe and efficient use of jib cranes in daily operations, all operators must strictly adhere to the following safety requirements and procedures.

Safety Requirements for Jib Crane Operation

• Operators must receive professional training and hold valid operation certificates.
• Before operation, all safety devices and lubrication points must be thoroughly inspected to ensure proper functioning.
• The work area should be evaluated in advance to confirm it meets safety standards and provides sufficient space for lifting operations.
• Operators must wear appropriate personal protective equipment (PPE), such as safety harnesses and helmets.
• Lifting operations must follow standardized procedures. Unauthorized adjustments or unsafe practices are strictly prohibited.
• Operators must comply with all relevant safety regulations and never operate the jib crane under overload conditions.

Safe Operating Procedures

• Before lifting, verify the weight of the load and determine the correct lifting point to select the appropriate crane configuration.
• Conduct a safety assessment of the work area and identify potential risks such as obstacles or collision hazards.
• Perform a full equipment inspection and test run to ensure all parts and safety mechanisms function properly.
• Confirm that the load is securely attached and the lifting point meets safety standards before beginning the operation.
• Maintain clear communication with other team members during crane operation to ensure synchronized and safe movements.
• After completing the task, inspect and maintain the crane, and clean the work area to keep equipment in optimal condition.

Ready to Buy a 3 Ton Jib Crane?

DGCRANE offers high-quality, cost-effective 3 ton jib cranes—free standing, wall mounted, and wall travelling—trusted by clients in 120+ countries. With over 10 years of export experience, we provide tailored lifting solutions backed by expert support and fast delivery.

Contact us today with your lifting requirements (load capacity, height, and building conditions), and get a customized quote that fits your needs.

Let DGCRANE help you lift smarter and safer.
