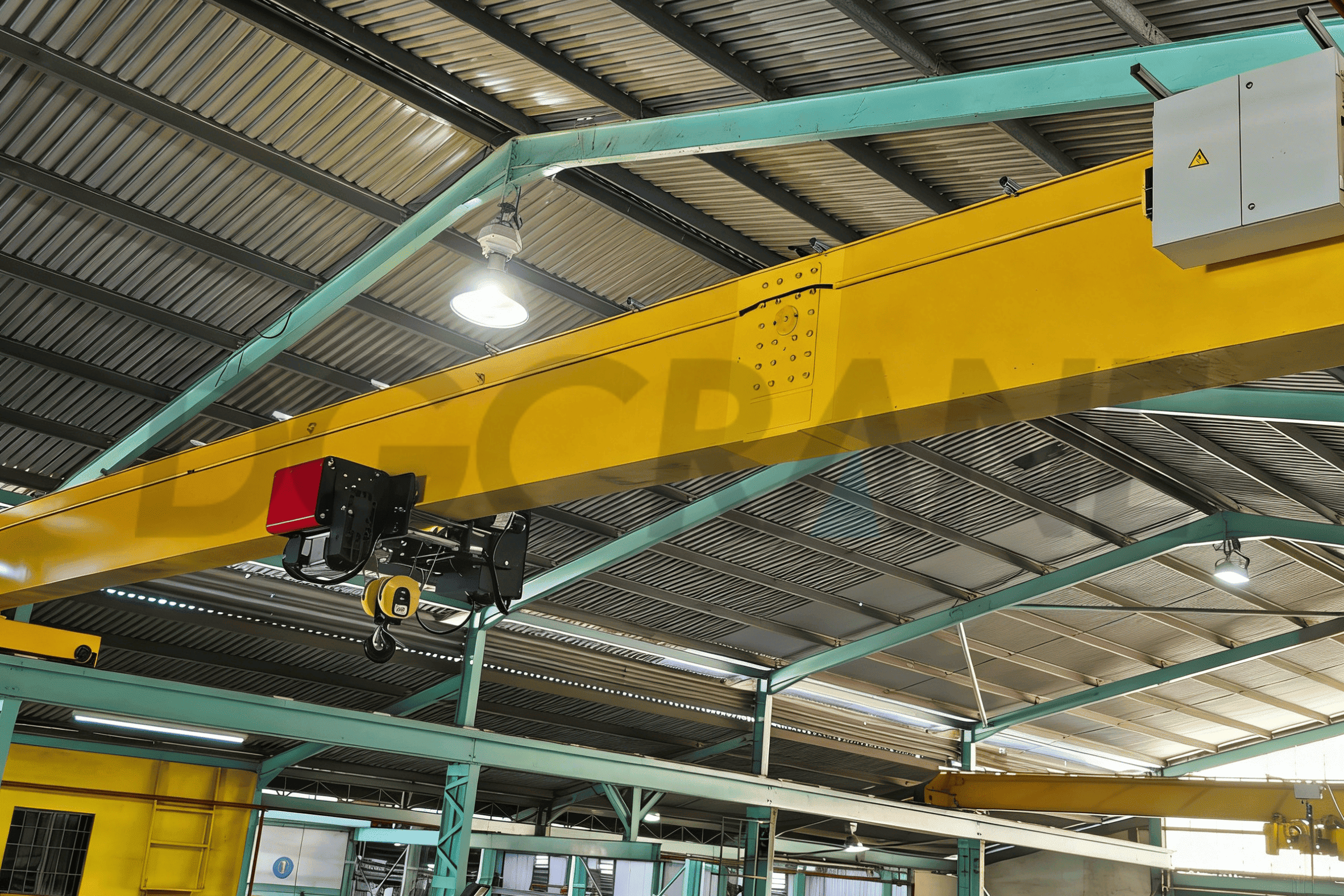

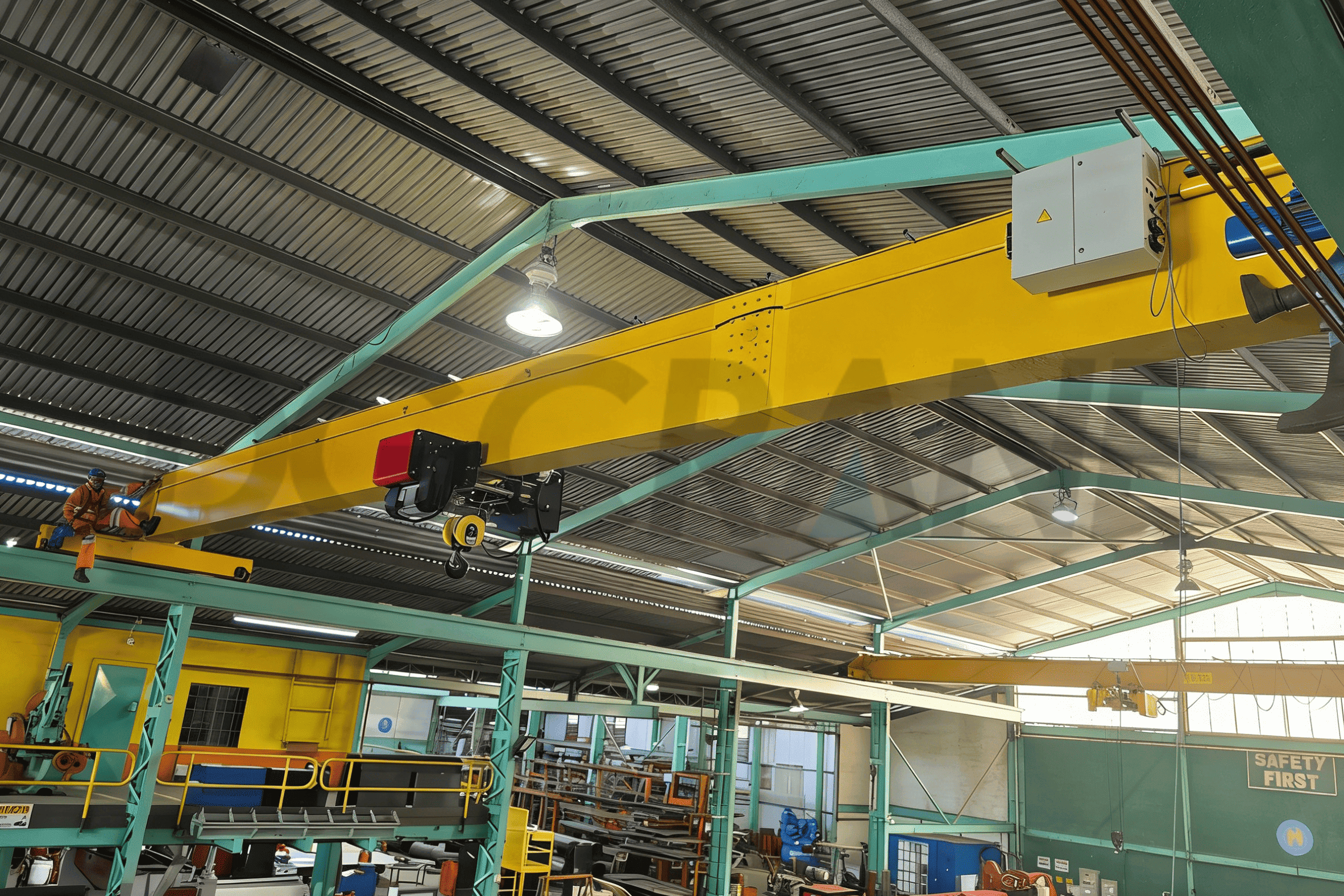

10T Single Girder Overhead Crane Exported to Trinidad and Tobago
Crane Specifications:
- Model: HD 10-ton single girder overhead crane
- Capacity: 10 tons
- Span: 15.4 m
- Lifting height: 7.6 m
- Lifting mechanism: NR-type electric wire rope hoist
- Lifting speed: 5.0 / 0.8 m/min
- Traversing speed: 2–20 m/min
- Traveling speed: 3–30 m/min
- Power supply: 380V, 50Hz, 3-phase
The client contacted us on May 7, seeking to replace the crane currently in use at their factory. After a month of communication, we proposed two solutions: one including the main beam, and the other including only the crane kits. Ultimately, the client was very satisfied with our pricing and chose the solution that included the main beam.

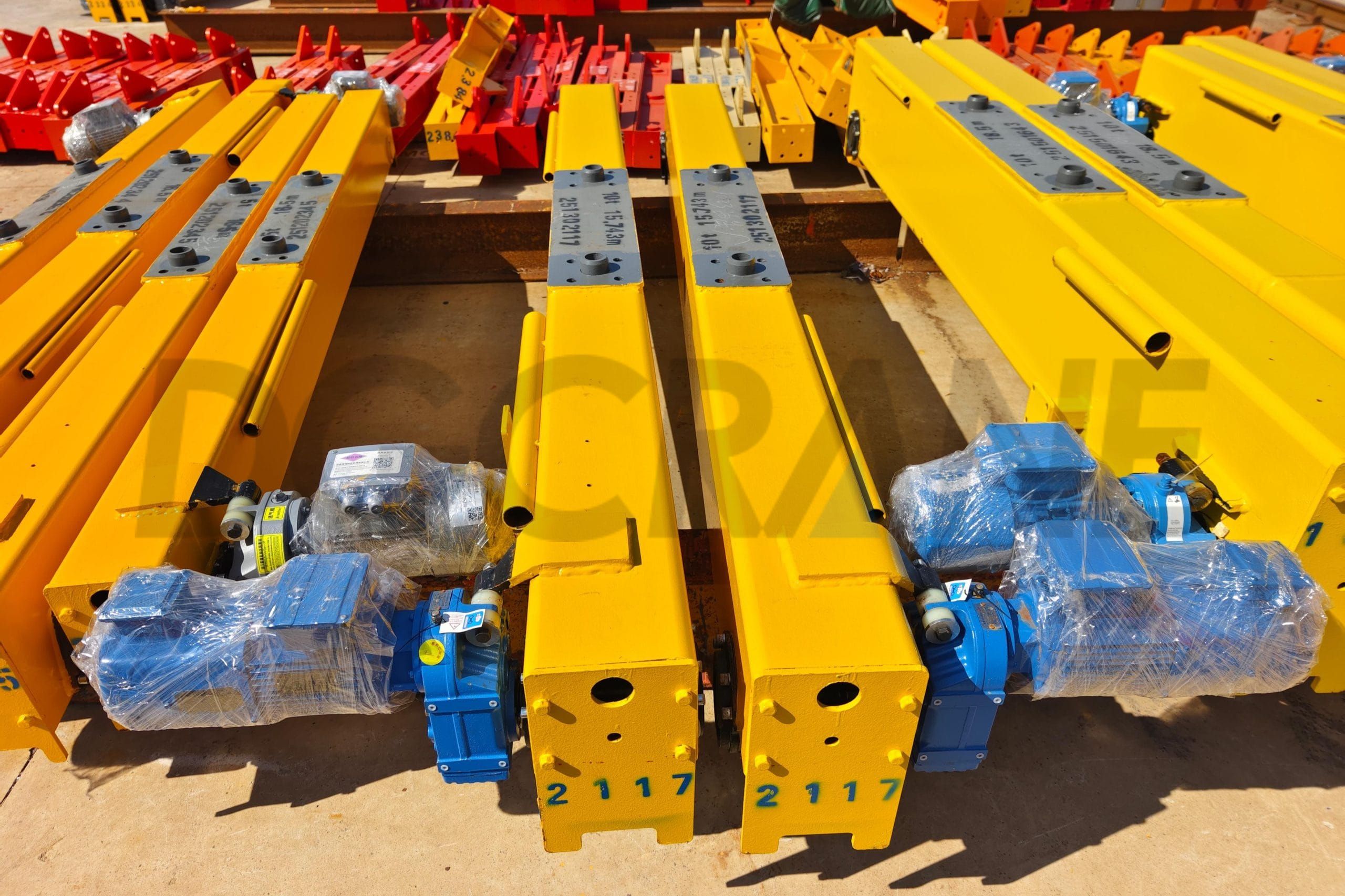

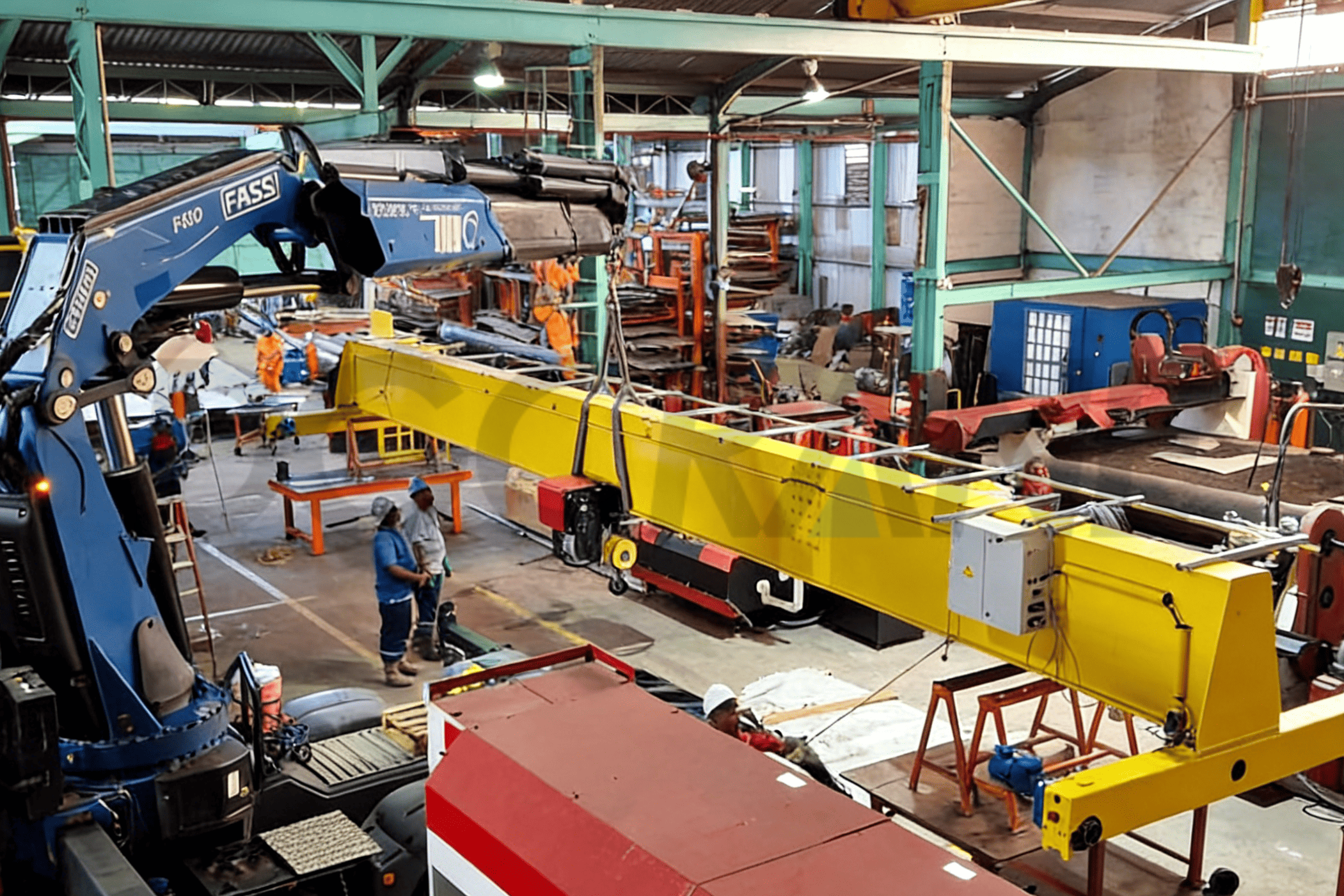

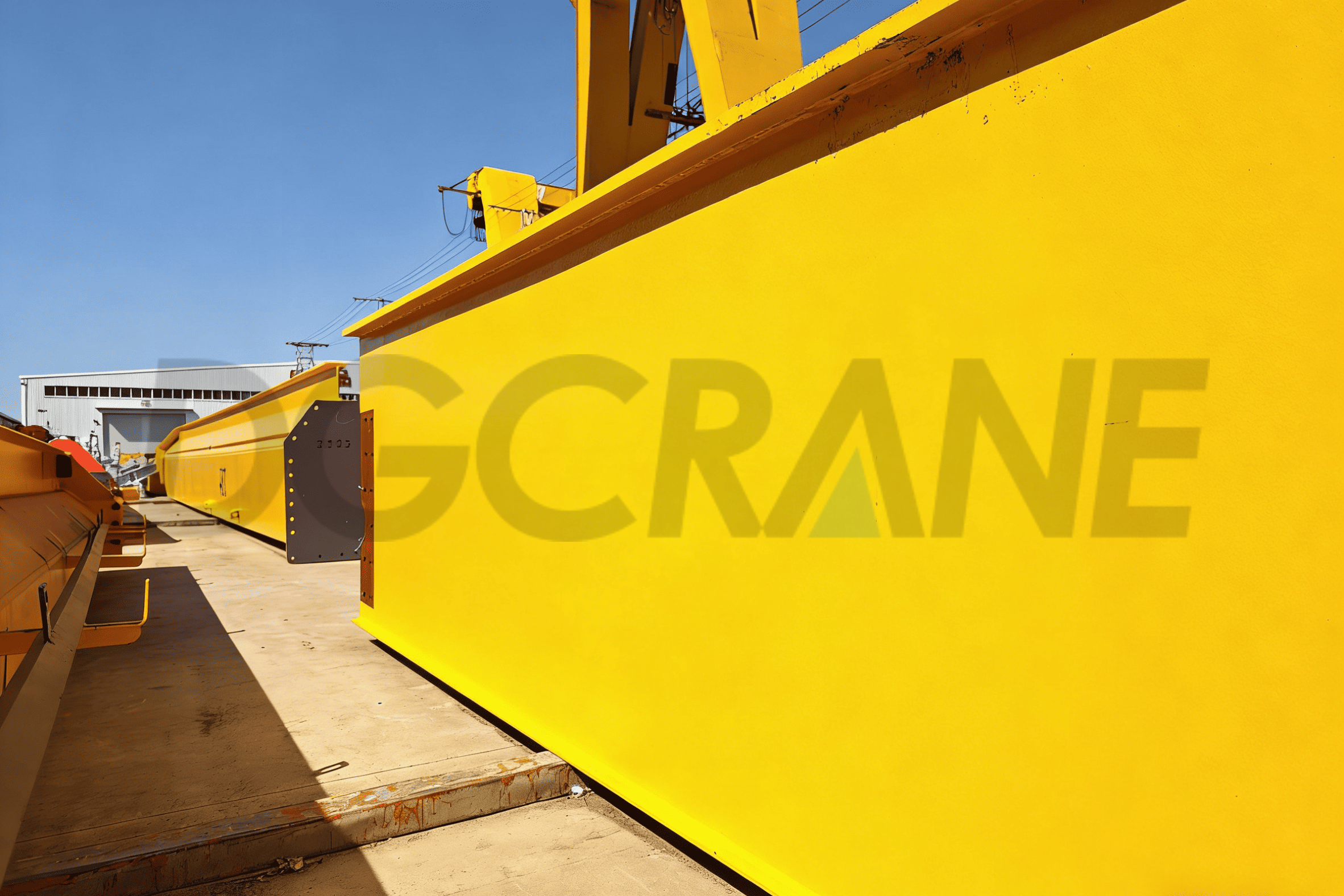

Below are some production and installation photos of the crane for your reference:
