Double Girder Gantry Cranes ,Double Girder Overhead Crane And Crane Parts For Sale to Philippines

Feb 20,2021
Crane news

Detailed specifications for cranes:

4 sets of MG 16T-S:16.6M A5 double girder gantry cranes (A5)
Lifting Capacity: 16t
Span: 16.6m
Lifting height: 5.6m
Lifting mechanism: 16t QD trolley
Lifting speed: 3.6m/min
Trolley traversing speed: 30.5m/min;
Crane traveling speed: 3.9-39m/min
Industrial voltage: 440v 60hz 3ph
Control model: Cabin control+ Ground control
Work Site: Indoor

4 sets of MG 25T-S:16.6M A5 double girder gantry cranes (A5)
Lifting Capacity: 25t
Span: 16.6m
Lifting height: 5.6m
Lifting mechanism: 25t QD trolley
Lifting speed: 3.2m/min
Trolley traversing speed: 30.5m/min;
Crane traveling speed: 3.5-35m/min
Industrial voltage: 440v 60hz 3ph
Control model: Cabin control+ Ground control
Work Site: Indoor

1 set of LH type 16T-S:20.9m double girder overhead crane with lower horizontal LH hoist trolley (A3)
Lifting Capacity : 16t;
Span: 20.9m ;
Lifting height: 6.06m;
Lifting mechanism: 16t lower horizontal LH hoist trolley;
Lifting speed: 3.5m/min
Trolley and crane traversing speed: 20m/min;
Industrial voltage: 440v 60hz 3ph
Work Site: Indoor

Article:

These cranes and spare parts were delivered to our client in End of October, 2019, and all these products need total 18 sets of 40' OH(High open top) containers.

For these 8 sets of 16t and 25t double girder gantry cranes, they are all used indoor. Considering the working frequency is much heavy, we design and produce the A5 duty group double girder gantry crane with QD trolley.

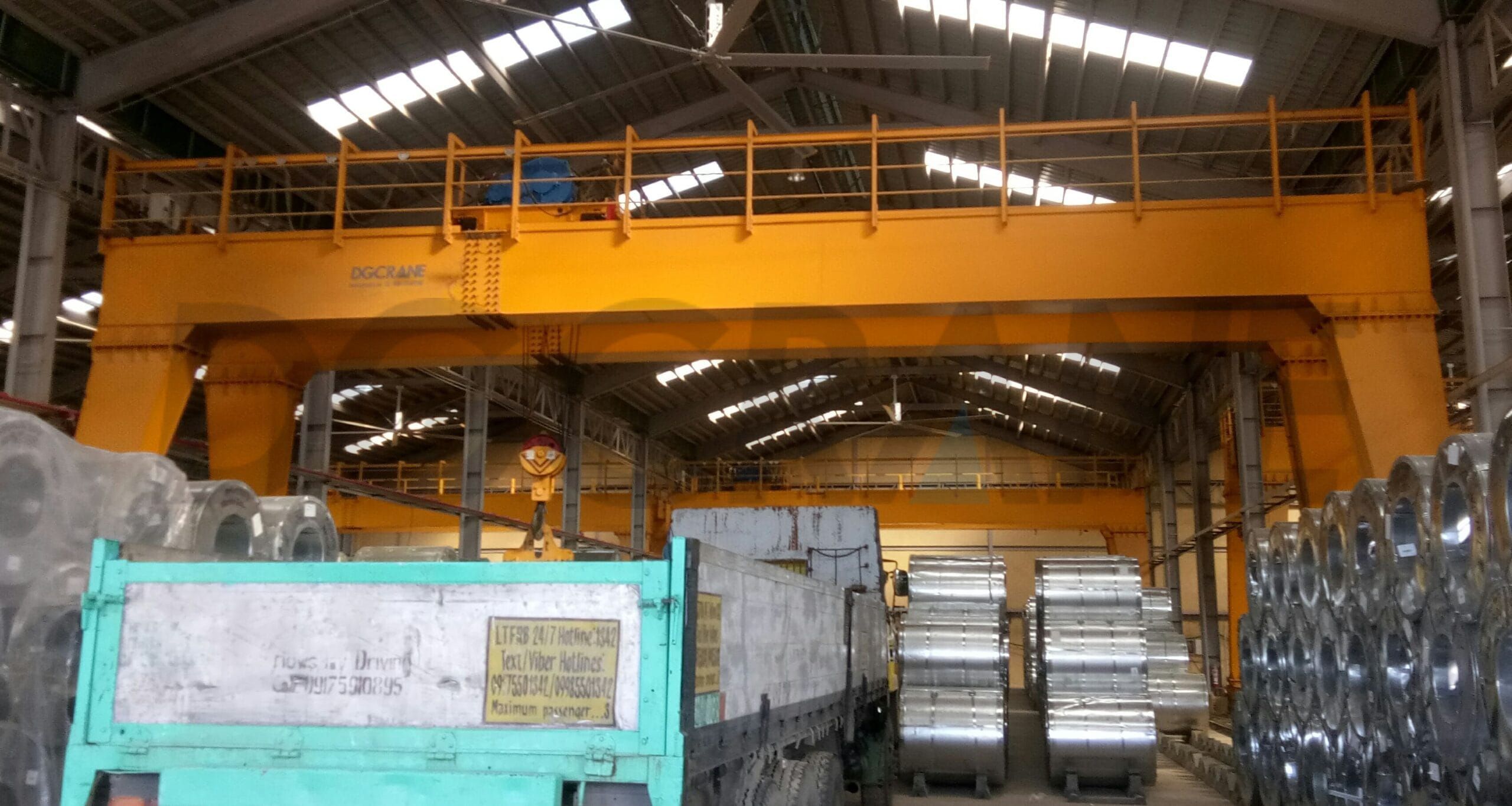

Here share one photo of installed gantry cranes with you, and here I want to express my appreciate to our client for their kindly support and cooperatation!

Installation Photo scaled

Here also share some production photos with you:

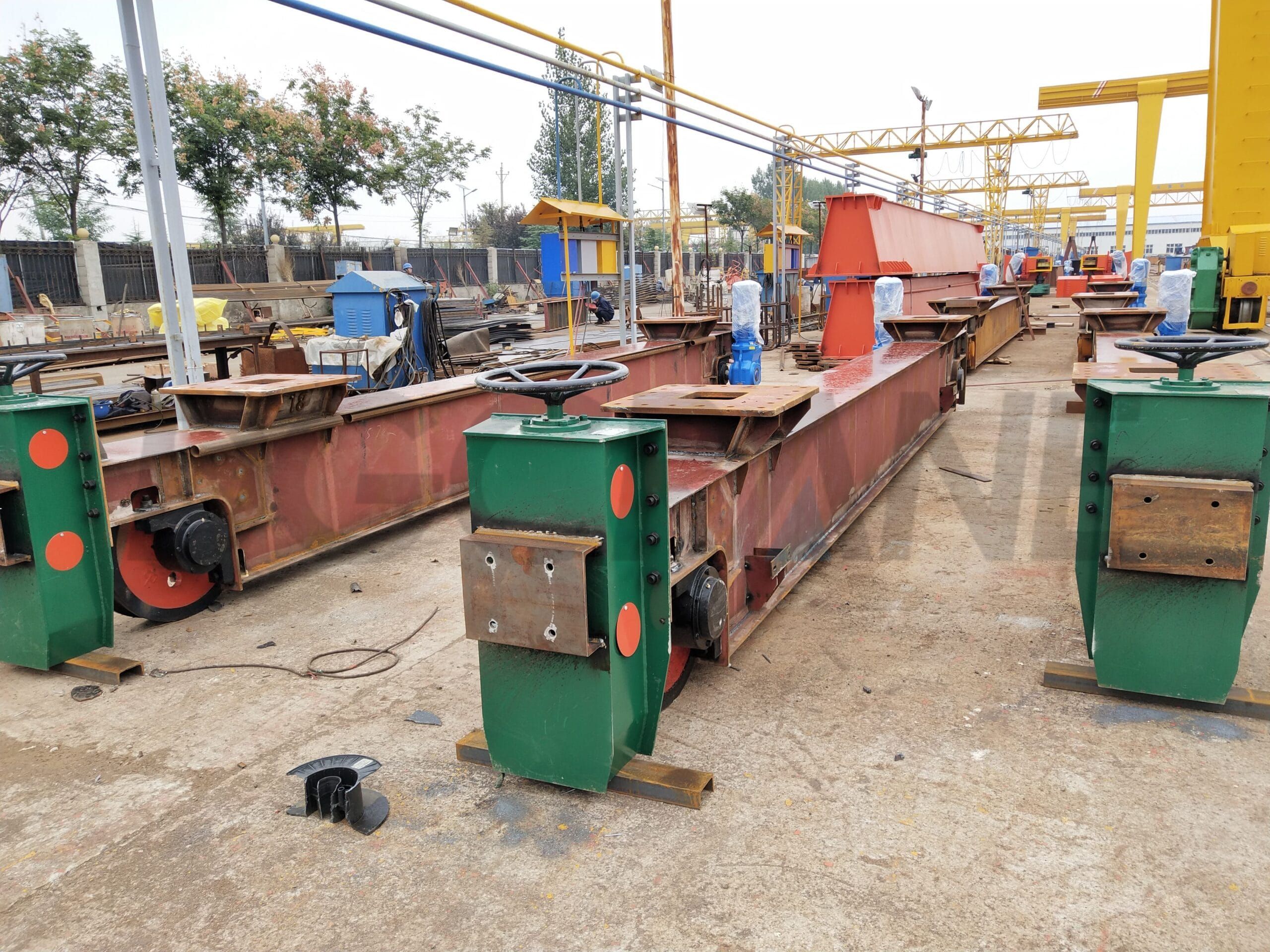

Production of ground beam with Boneng three-in-one motors.

Production photo scaled

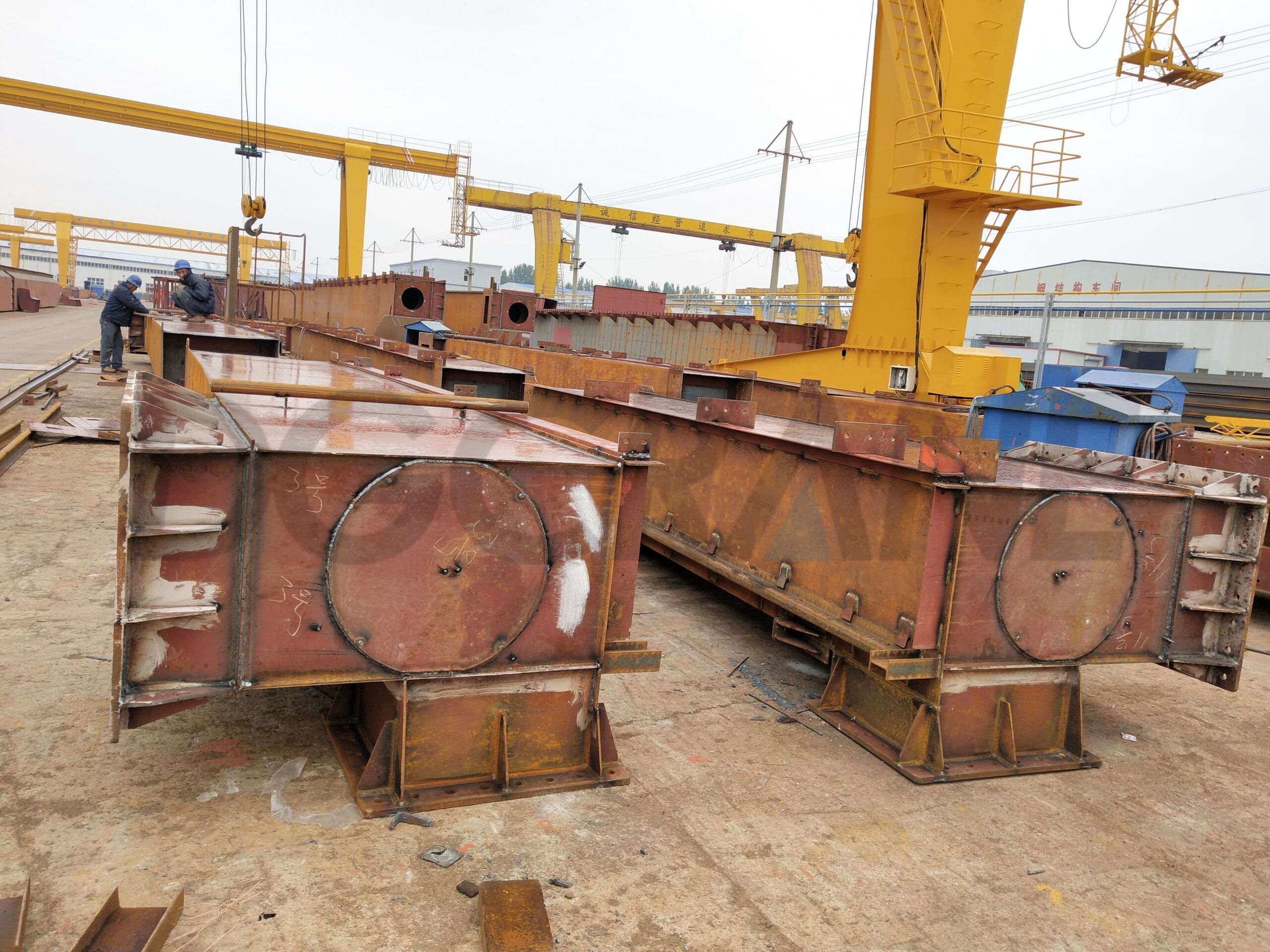

Production of main beams for double girder gantry crane.

Production photo scaled

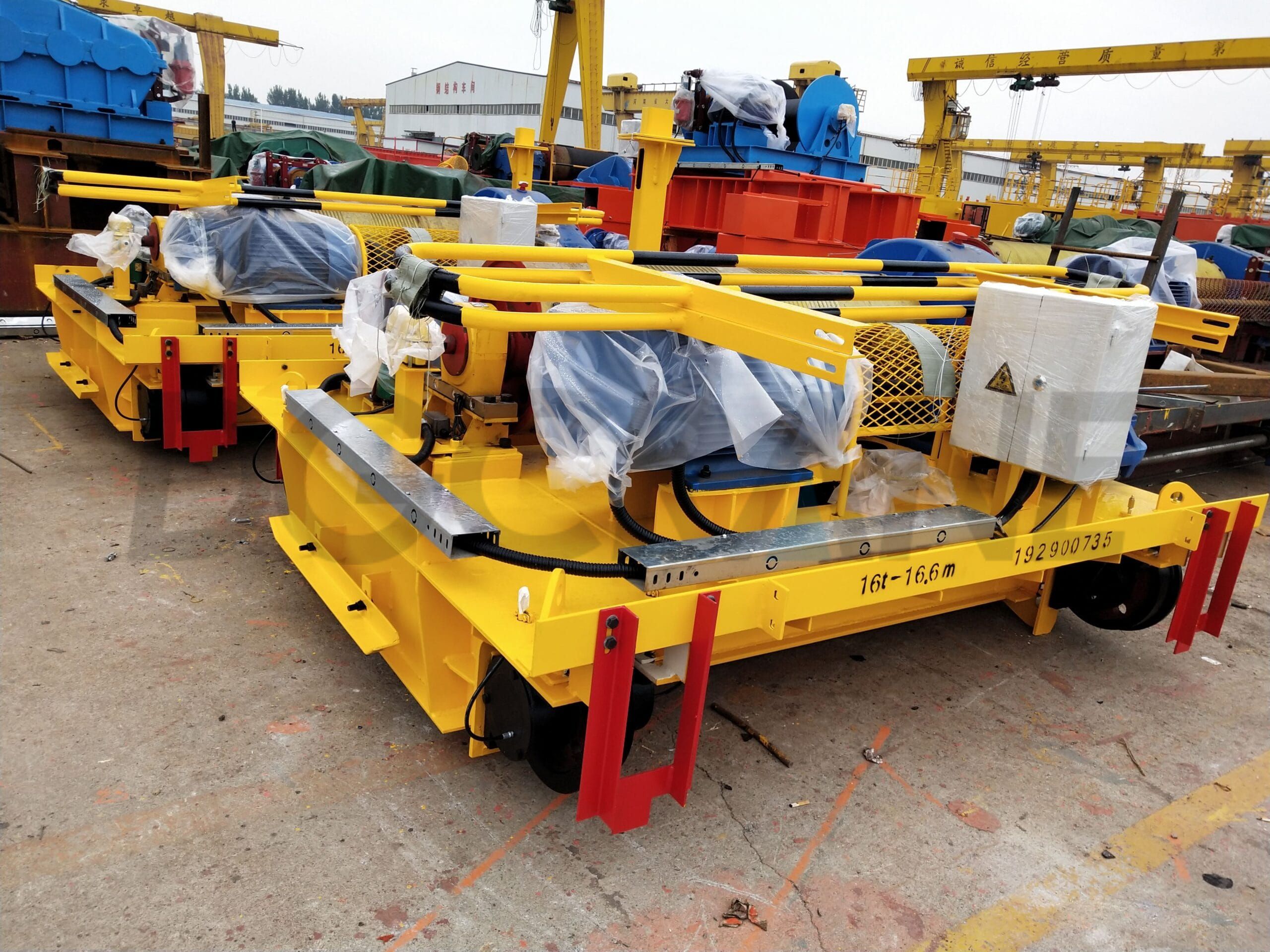

Finished photo of 16t and 25t QD trolley

Finished photo of trolley scaled

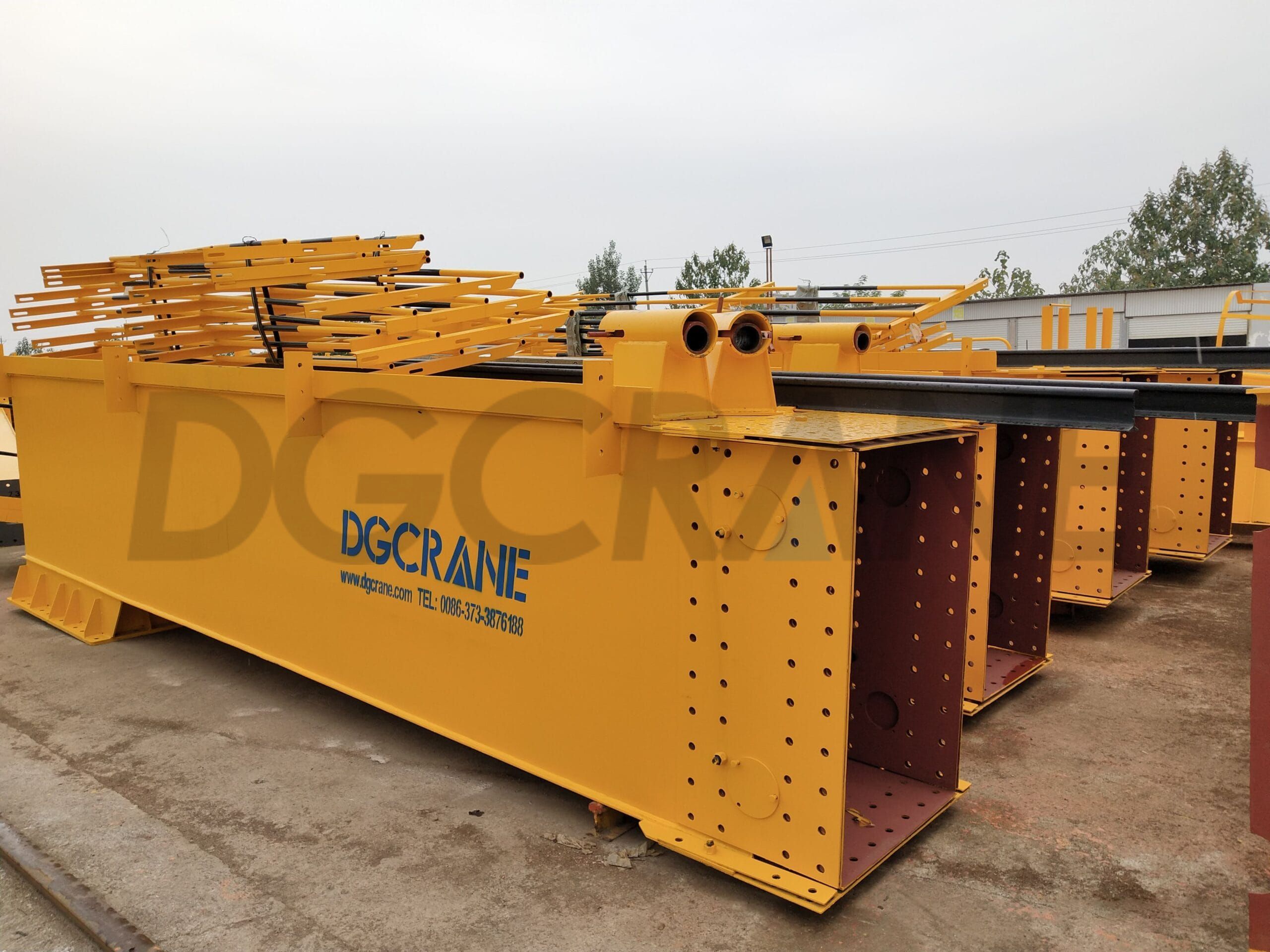

Finished photo of double girder gantry crane main beams

Finished photo of main beams scaled

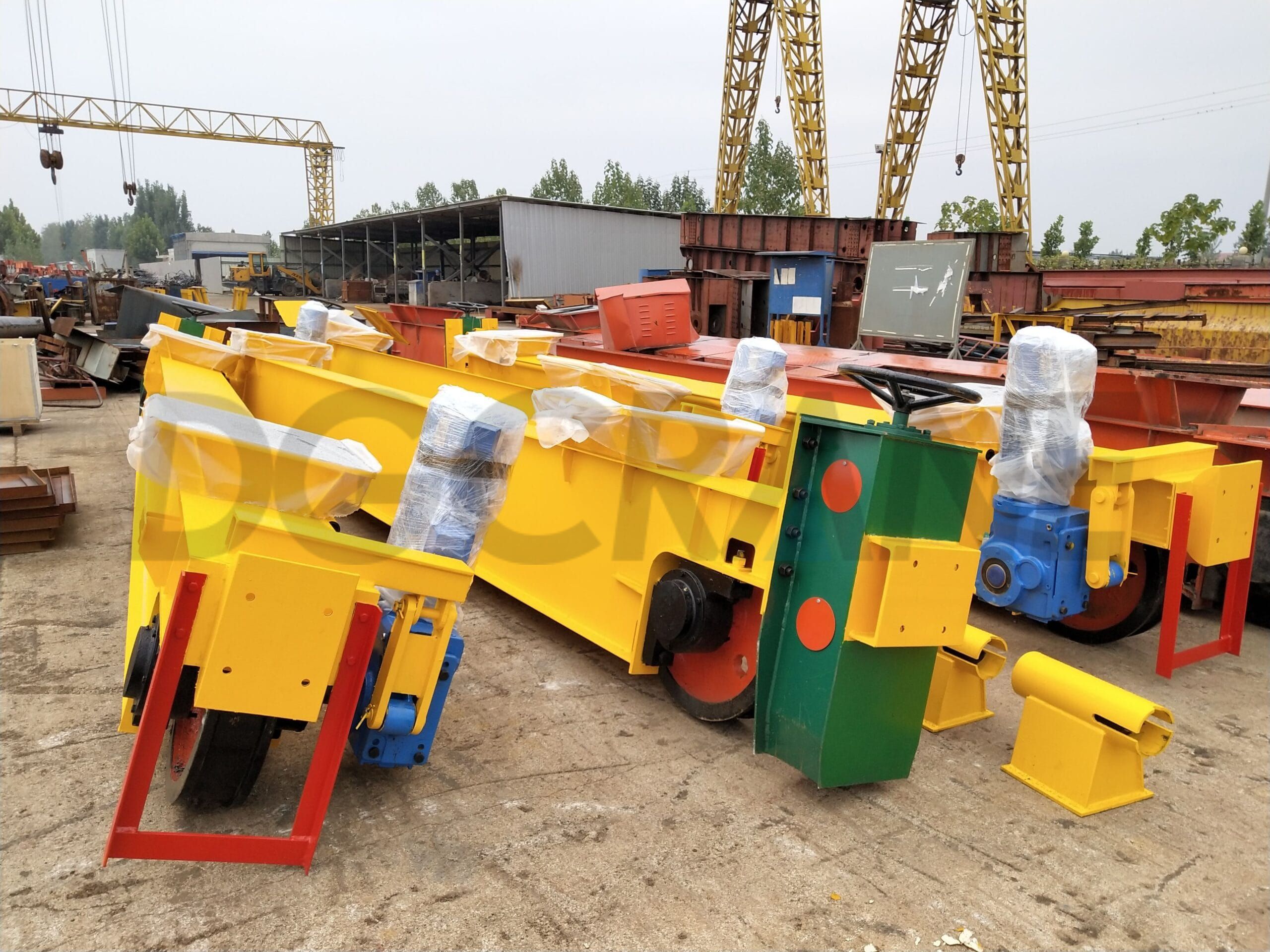

Finished photos of double girder gantry crane ground beams

Finished photos of ground beams scaled

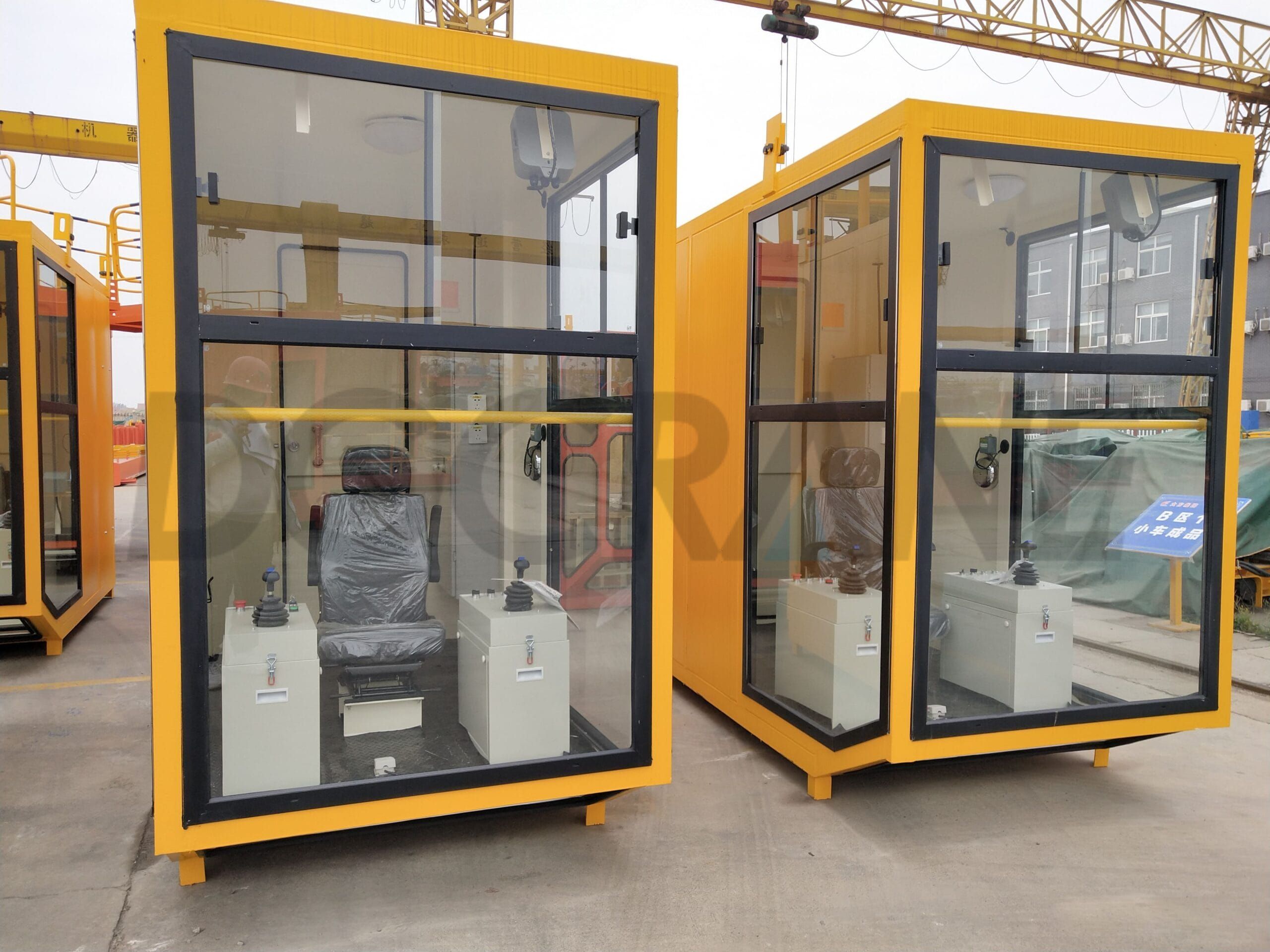

Finished photos of double girder gantry crane cabins

Finished photo of cabins scaled

For 1 set of LH type 16T-S:20.9m double girder overhead crane A3, the special part for this crane is that, the trolley we use is non-standard type, it is lower horizontal LH hoist trolley. As the space upper the crane is too small, but the single girder type cannot meet the actual working requirement, so we design this kind of solution to help our client to solve this problem.

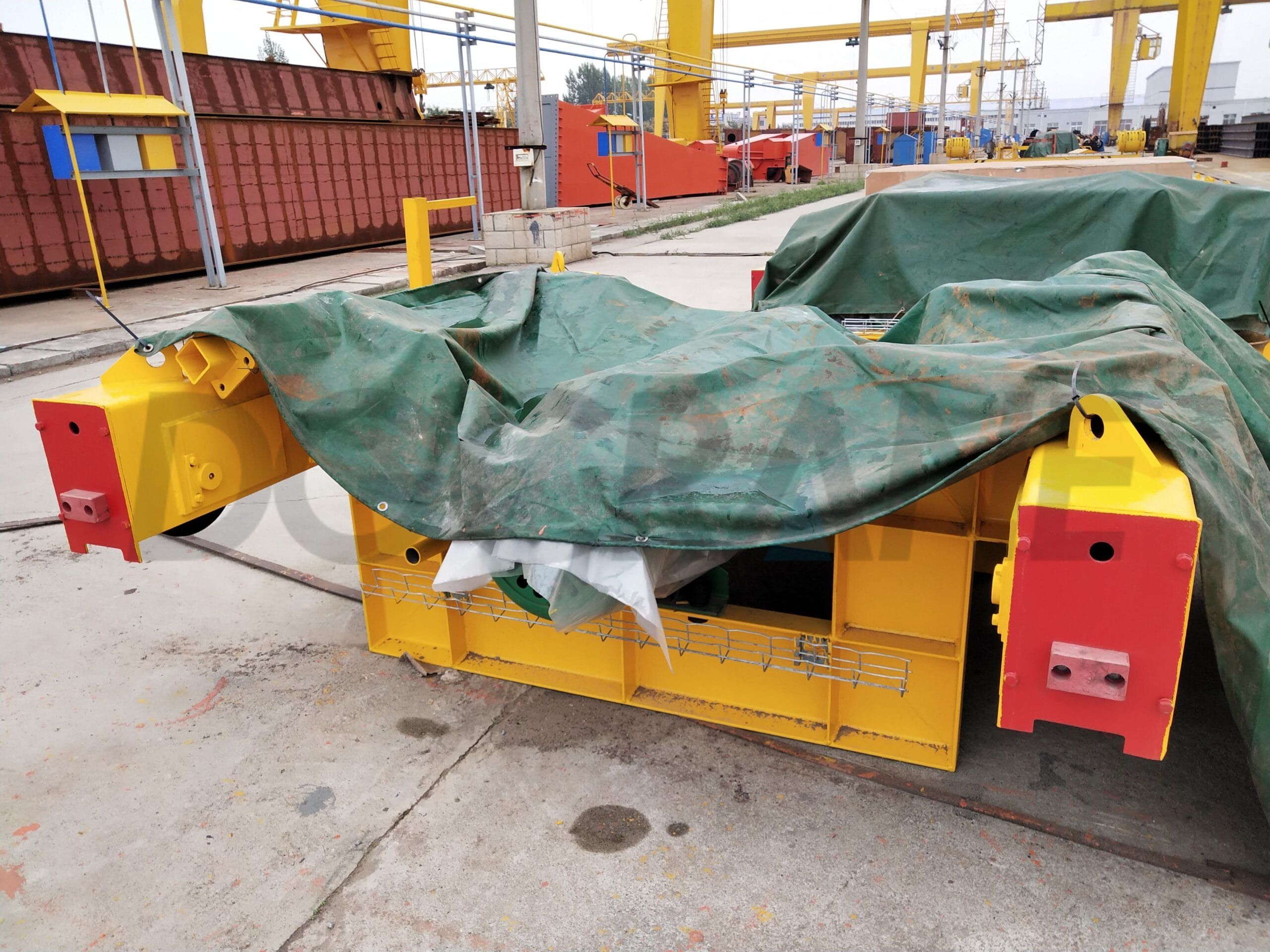

Photo of 16t lower horizontal LH hoist trolley:

Photo oft lower horizontal LH hoist trolley scaled

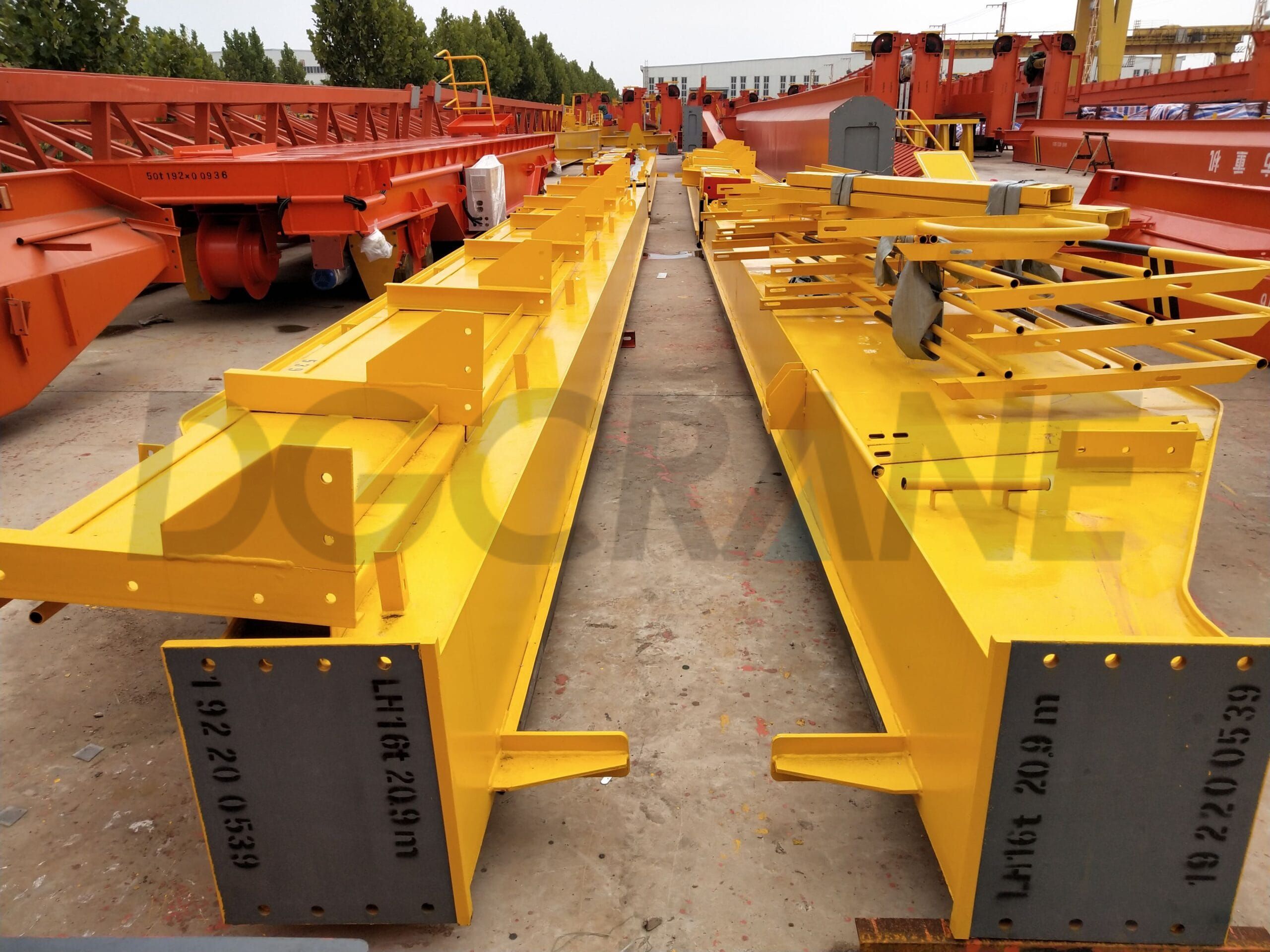

Photo of complete 16t ovehead crane(main beams and end beams)

Photo of completet ovehead cranemain beams and end beams scaled

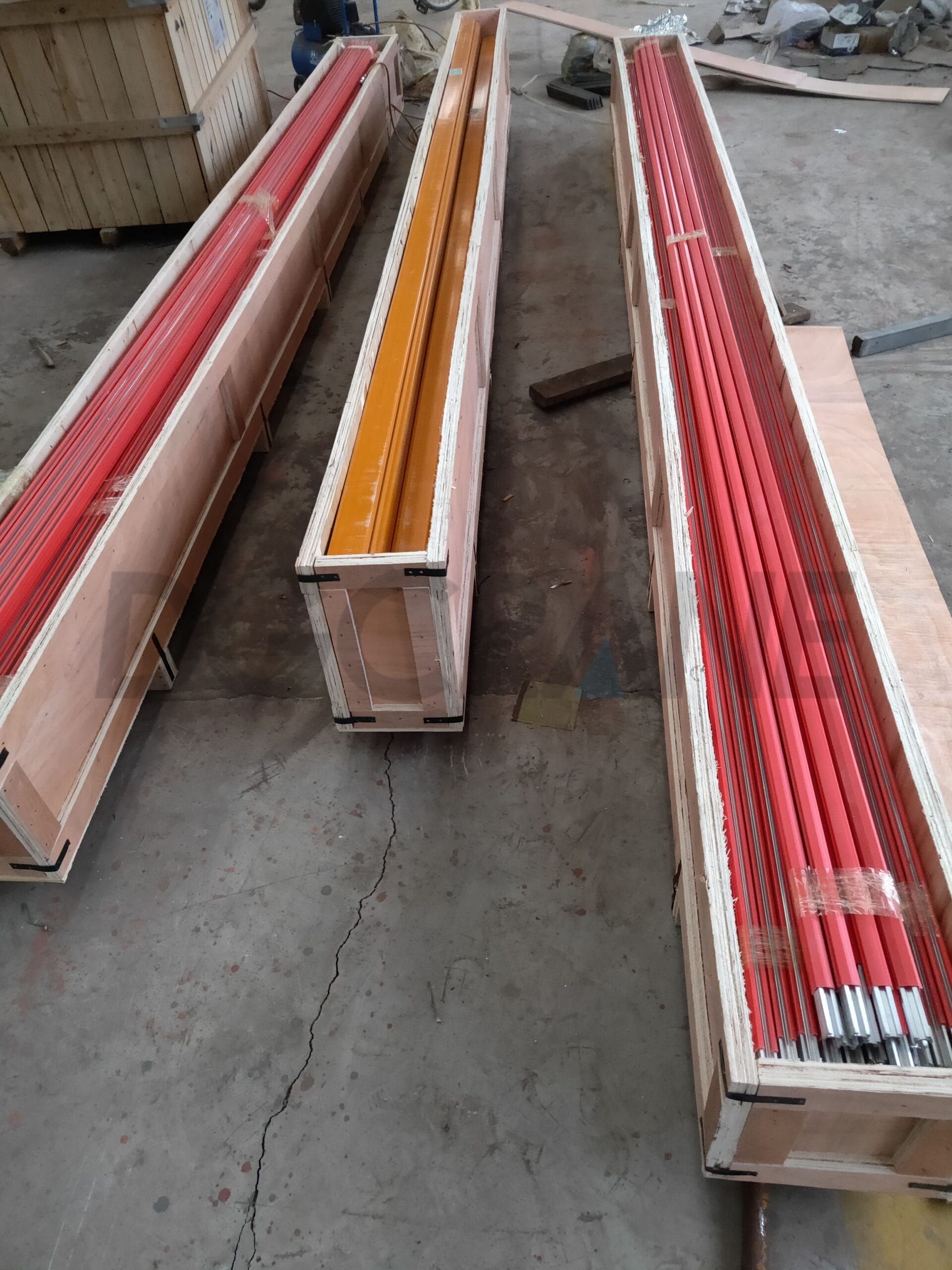

Buss bar for these cranes(Single-pole combined type buss bar)

Buss bar for these cranesSingle pole combined type buss bar scaled

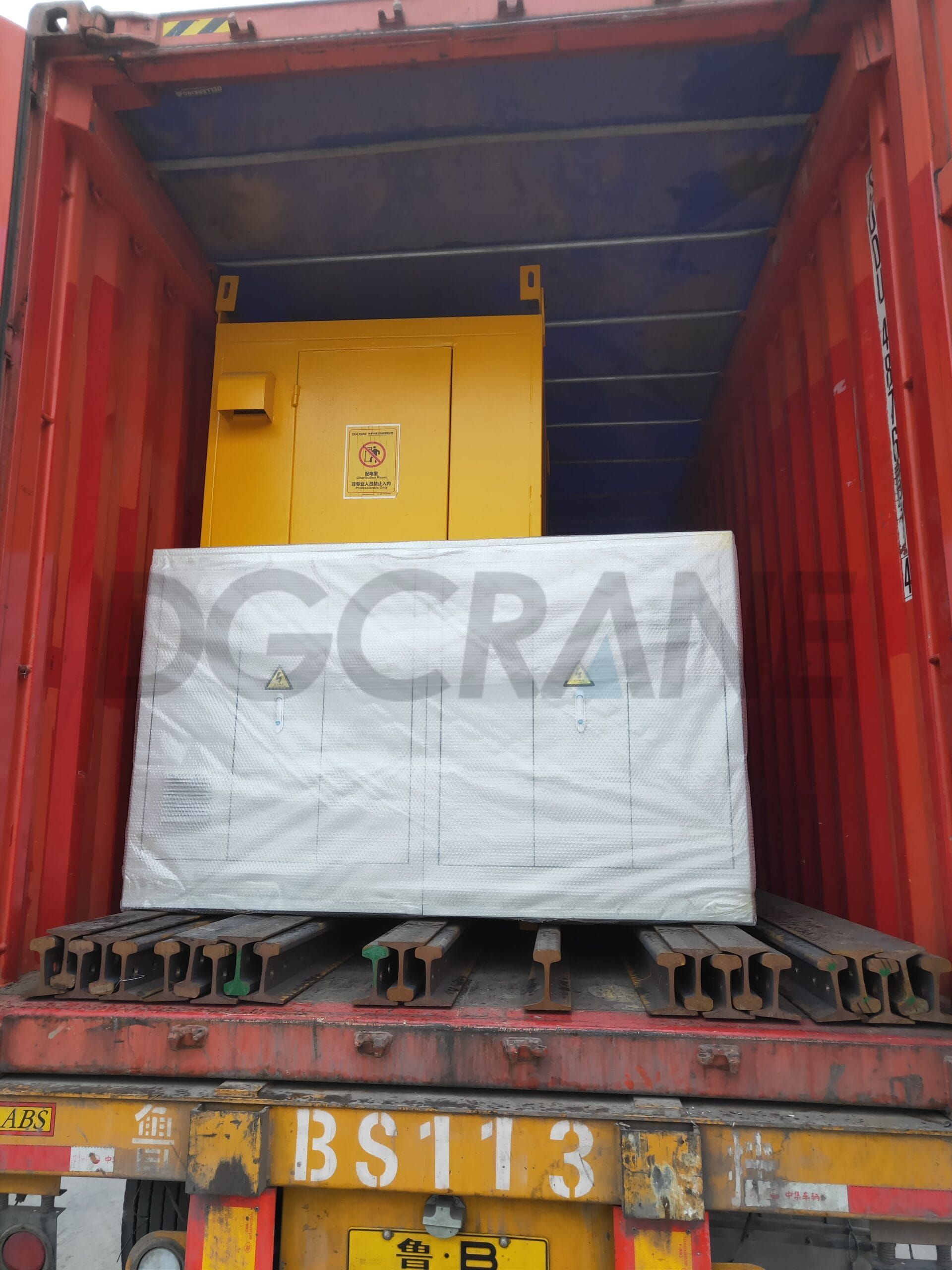

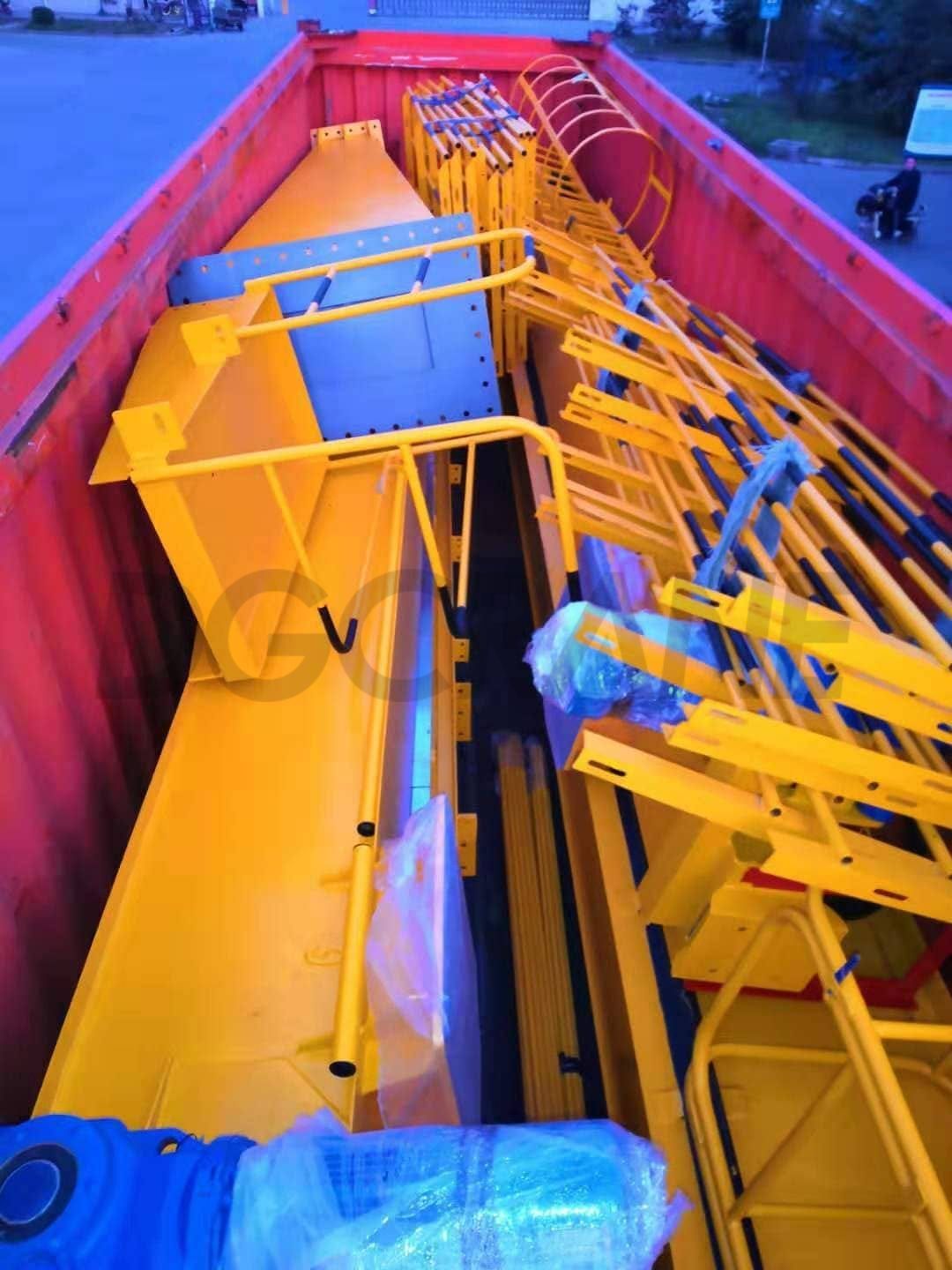

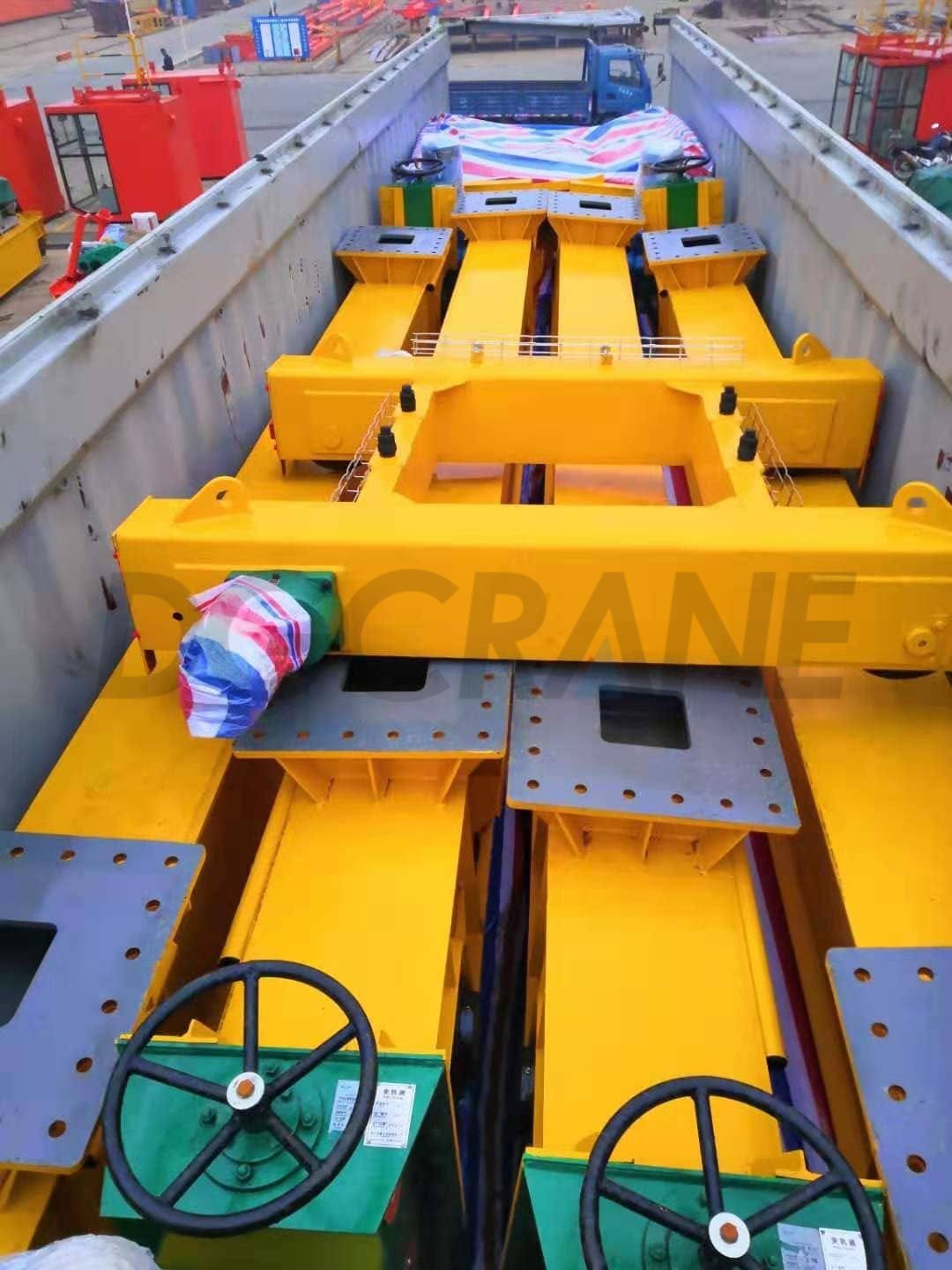

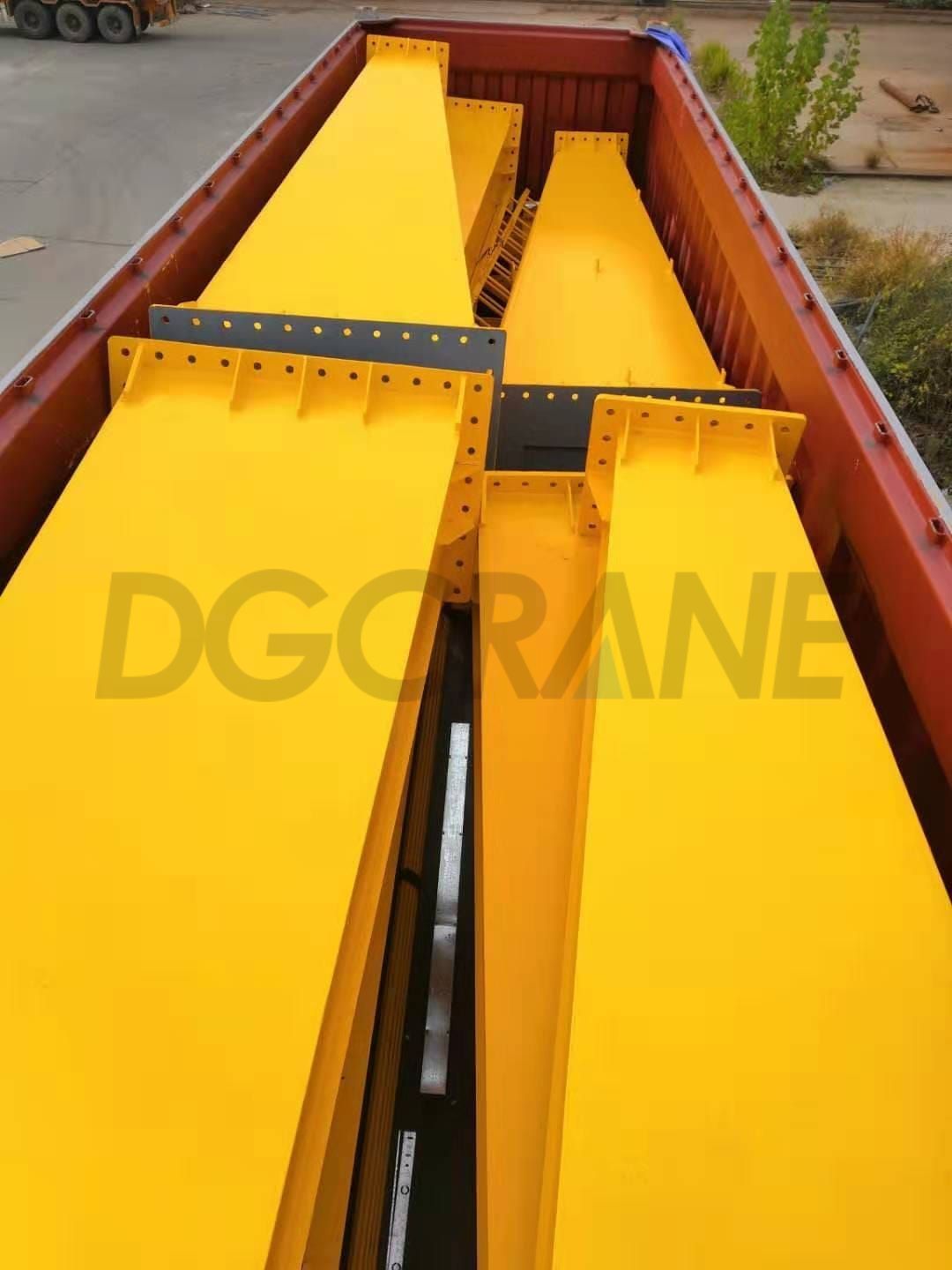

Some delivery photos of these gantry cranes and overhead crane:

Delivery photos   Delivery photos

Delivery photos   Delivery photos scaled

We are looking forward to cooperating with you in the near future and for long time!
